Jackcon T-C DC Capacitor series

DC ceramic disk capacitor
Dissipation factor under 10.10^-4 at 1V_rms and 1kH (or 1MHz)
Insulation resistance of 10,000 MΩ min at 100Vdc over 1 minute

SRT Microcéramique Chip Capacitors with Negative TC

NP0 (C0G) Chip ceramic capacitor with negative TC
Highest quality and reliability, suitable for safety-critical industries
Dissipation factor under 10.10^-4 at 1V_rms and 1kH (or 1MHz)
Insulation resistance of 25°C/Un 10⁵ MΩ or 1000 Ohm-Farad whichever is less and 125°C/Un 10⁴ MΩ or 100 Ohm-Farad whichever is less
Dielectric strength test performed per method 103 of EIA 198-2-E

SRT Microcéramique High Frequency Capacitor Series

MLCC Capacitor for RF and Microwave communication
Highest quality and reliability, suitable for safety-critical industries
Dissipation factor under 5.10^-4 at 1V_rms and 1MHz for values ≤ 1000pF and under 5.10^-4 at 1V_rms and 1KHz for values > 1000pF
Insulation resistance of 25°C/Un 10⁵ MΩ or 1000 Ohm-Farad whichever is less and 125°C/Un 10⁴ MΩ or 100 Ohm-Farad whichever is less
Dielectric strength test performed per method 103 of EIA 198-2-E

SRT Microcéramique High Temperature NP0 Capacitor Series

High Temperature, ultra stable MLCC Capacitor
Highest quality and reliability, suitable for safety-critical industries
Dissipation factor under 10.10^-4 at 1V_rms and 1kHz (or 1MHz)
Insulation resistance of 25°C/Un 10⁵ MΩ or 1000 Ohm-Farad whichever is less and 125°C/Un 10⁴ MΩ or 100 Ohm-Farad whichever is less
Dielectric strength test performed per method 103 of EIA 198-2-E

SRT Microcéramique High Voltage NP0 Capacitor Series (200V-1kV)

Ultra stable ceramic capacitor
Highest quality and reliability, suitable for safety-critical industries
Dissipation factor under 10.10^-4 at 1V_rms and 1kHz (or 1MHz)
Insulation resistance of 25°C/Un 10⁵ MΩ or 1000 Ohm-Farad whichever is less and 125°C/Un 10⁴ MΩ or 100 Ohm-Farad whichever is less
Dielectric strength test performed per method 103 of EIA 198-2-E

SRT Microcéramique High Voltage NP0 Capacitor Series (2kV-10kV)

Ultra stable ceramic capacitor
Highest quality and reliability, suitable for safety-critical industries
Dissipation factor under 10.10^-4 at 1V_rms and 1kHz (or 1MHz)
Insulation resistance of 25°C/Un 10⁵ MΩ or 1000 Ohm-Farad whichever is less and 125°C/Un 10⁴ MΩ or 100 Ohm-Farad whichever is less
Dielectric strength test performed per method 103 of EIA 198-2-E

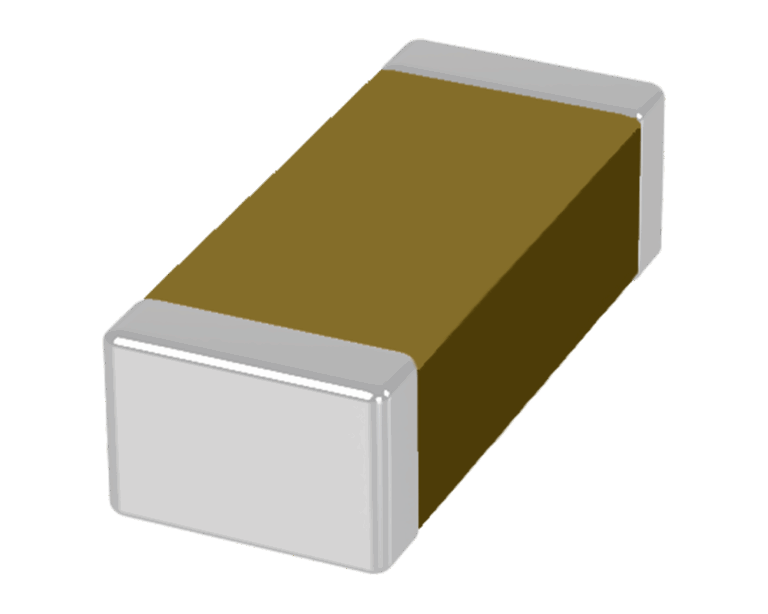

SRT Microcéramique Low Voltage BX Capacitor Series (50-100V)

Stable ceramic capacitor
Better voltage behaviour compared to X7R dielectric
Highest quality and reliability, suitable for safety-critical industries
Dissipation factor up to 0.025 at 1kHz for C over 1nF, and up to 0.025 at 1MHz for C up to 1nF
Insulation resistance of 25°C/Un 10⁵ MΩ or 1000 Ohm-Farad whichever is less and 125°C/Un 10⁴ MΩ or 100 Ohm-Farad whichever is less
Dielectric strength test performed per method 103 of EIA 198-2-E

SRT Microcéramique Low Voltage NP0 Capacitor Series (16-100V)

Ultra stable ceramic capacitor
Highest quality and reliability, suitable for safety-critical industries
Dissipation factor under 10.10^-4 at 1V_rms and 1kHz (or 1MHz)
Insulation resistance of 25°C/Un 10⁵ MΩ or 1000 Ohm-Farad whichever is less and 125°C/Un 10⁴ MΩ or 100 Ohm-Farad whichever is less
Dielectric strength test performed per method 103 of EIA 198-2-E

SRT Microcéramique Low Voltage X7R Capacitor Series (16-100V)

Stable ceramic capacitor
Highest quality and reliability, suitable for safety-critical industries
Dissipation factor up to 0.025 at 1kHz for C over 1nF, and up to 0.025 at 1MHz for C up to 1nF
Insulation resistance of 25°C/Un 10⁵ MΩ or 1000 Ohm-Farad whichever is less and 125°C/Un 10⁴ MΩ or 100 Ohm-Farad whichever is less
Dielectric strength test performed per method 103 of EIA 198-2-E

SRT Microcéramique Radial Dipped NP0 Capacitors (200V – 500V)

Radial dipped NP0 capacitor series
Highest quality and reliability, suitable for safety-critical industries
Dissipation factor up to 0.025
Insulation resistance of 25°C/Un 10⁵ MΩ or 1000 Ohm-Farad whichever is less and 125°C/Un 10⁴ MΩ or 100 Ohm-Farad whichever is less
Dielectric strength test performed per method 103 of EIA 198-2-E

SRT Microcéramique Radial Dipped NP0 Capacitors (50V – 100V)

Radial dipped NP0 capacitor series
Highest quality and reliability, suitable for safety-critical industries
Dissipation factor up to 0.025
Insulation resistance of 25°C/Un 10⁵ MΩ or 1000 Ohm-Farad whichever is less and 125°C/Un 10⁴ MΩ or 100 Ohm-Farad whichever is less
Dielectric strength test performed per method 103 of EIA 198-2-E
