±80 ppm/°C series

Caddock 1787 Series

Current sensing resistor network
Resistance ranges from 0.9Ω to 1kΩ
Absolute Tolerance of ±0.05%, ±0.1% or ±0.25%
TCR from ±50 ppm/°C to ±100 ppm/°C
Power rating of 1W depending on the model
Temperature range from -55°C to +85°C

Caddock 1789 Series

Precision resistor network
Resistance range from 0.5Ω to 10kΩ
Tolerance of ±0.05% to ±1.0%
TCR of ±50, ±80 or ±100 ppm/°C
Power rating of 100mW up to 2W per resistor
Temperature range from 0°C to +70°C

Caddock MG Standard Range

Cylindrical high voltage axial leaded resistor
Maximum operating voltage from 600V up to 30kV *
Resistance values from 200Ω up to 2GΩ *
Tolerances of ±0.1%, ±0.25%, ±0.5% and ±1%
TCR as tight as ±80 ppm/°C from -15°C to +105°C
Maximum power rating from 0.5W up to 15W *
Operating Temperature Range of -55°C to +225°C

_{* Dependant on selected resistor model}

Caddock MG -15 Range

Cylindrical high voltage axial leaded resistor
Maximum operating voltage from 960V up to 48kV *
Resistance values from 6.5MΩ up to 2GΩ *
Tolerances of ±1% and ±5%
TCR as tight as ±80 ppm/°C from -15°C to +105°C
Maximum power rating from 0.5W up to 15W *
Operating Temperature Range of -55°C to +225°C

_{* Dependant on selected resistor model}

Caddock MG Extended Range

Cylindrical high voltage axial leaded resistor
Maximum operating voltage from 2kV up to 30kV *
Resistance values from 600Ω up to 10GΩ *
Tolerances of ±1% and ±5%
TCR as tight as ±80 ppm/°C from +25°C to +105°C
Operating Temperature Range of -55°C to +225°C
Maximum power rating from 1.5W up to 15W *

_{* Dependant on selected resistor model}

Caddock MK727 Series

Precision power film radial leaded through-hole resistor
Non-inductive with expanded resistance range
Maximum working voltage of 400V
Compact rectangular package with standard lead spacing
Constructed with Caddock’s Micronox® resistance films fired onto a solid ceramic substrate
Extended life stability is typically better than 0.1% per 1,000 hours
Temperature range from -40°C up to +150°C

Caddock MK732 Series

Precision power film radial leaded through-hole resistor
Non-inductive with expanded resistance range
Maximum working voltage of 400V
Compact rectangular package with standard lead spacing
Constructed with Caddock’s Micronox® resistance films fired onto a solid ceramic substrate
Extended life stability is typically better than 0.1% per 1,000 hours
Temperature range from -40°C up to +150°C

Caddock MP821 Series

TO-220 style power through-hole resistor
Metal mounting tab
Non-inductive design
Constructed with Caddock’s Micronox® resistance film technology
Operation up to +175°C case temperature
Resistor element is electrically isolated from the mounting surface

Caddock MS Series

Precision high temperature power axial leaded through-hole resistor
Maximum operating voltage up to 6kV
Maximum operating temperature up to +275°C
Utilises Caddock’s Micronox® resistance film for outstanding stability when exposed to a high ambient temperature, thermal shock and high power densities
MS resistors have demonstrated excellent long-term stability of 0.05% per 1,000 hours over extended life
Caddock’s non-inductive design available on some models

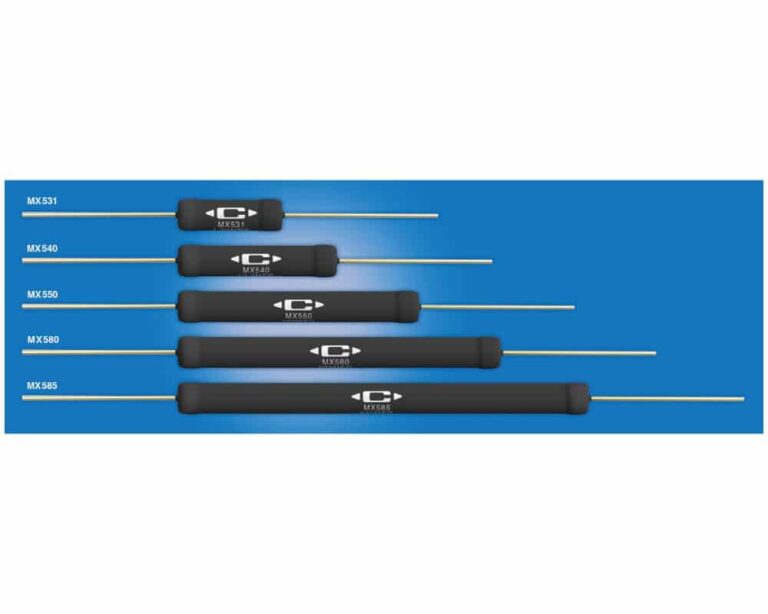

Caddock MX500 Series

High ohmic high voltage axial leaded through-hole resistor
Maximum operating temperature up to +175°C
Utilises Caddock’s Micronox® resistance film
Five sizes and voltage ratings from 7.5kV up to 32kV
Utilises Caddock’s non-inductive design

Isabellenhütte BVT Series

Current sensing resistor
Surface-mount 2512 chip size
Resistance range from 0.0003Ω to 0.0068Ω
Tolerances of ±1.0% and ±5.0%
TCR from ±50 ppm/°C
Power rating up to 6W at +70°C
Temperature range from -65°C to +170°C
