±25 ppm/°C series

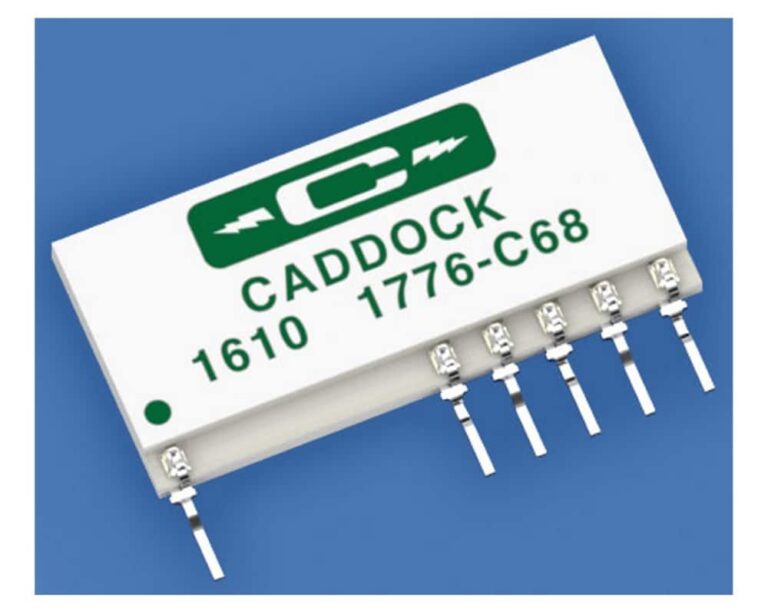

Caddock 1776 Series

Precision voltage dividers
Resistance ranges from 900Ω to 10MΩ
Absolute Tolerance of +0 -0.5%, ±0.1% or ±0.25%
VCR from ±0.02 ppm/V to ±0.5 ppm/V
Voltage rating of 750V up to 1.2kV
Temperature range 1 from -40°C to +85°C Temperature range 2 from 0°C to +70°C

Caddock CHR2520FC Series

High resistance precision flip-chip surface-mount resistor
Designed for use in extremely low signal detection / amplification circuits
Solderable metallised termination pads on the same side as the resistive element with a bare ceramic back surface
Maximum chip temperature of +85°C
Temperature range of -40°C to +85°C

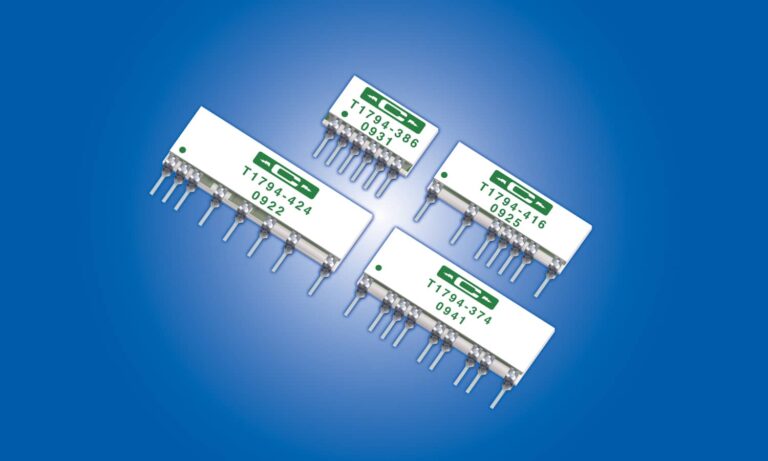

Caddock T1794 Series

Custom through-hole low TCR precision SIP resistor networks
Ratio-of-ratios as required down to as close to 0.025%
Unique thin-profile, single-in-line edge-mounted package
Utilises Caddock’s Tetrinox® resistance technology

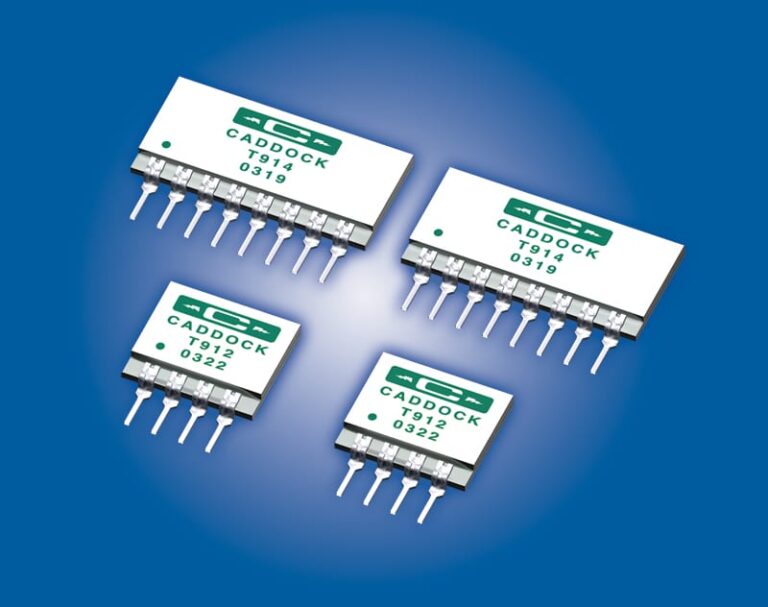

Caddock T912 Series

Through-hole precision resistor network
2 resistor elements, with either a ratio of 10:1, 9:1 or 1:1
Utilises Caddock’s Tetrinox® resistance technology
Voltage rating of 30VDC or RMS AC applied to R₁ or R₂
Custom options and configurations are available upon request

Caddock T914 Series

Through-hole precision resistor network
4 resistor elements, with a ratio of 1:1
Utilises Caddock’s Tetrinox® resistance technology
Voltage rating of 30VDC or RMS AC applied to R₁, R₂, R₃ or R₄
Custom options and configurations are available upon request

Caddock TG Series

Precision high voltage axial leaded through-hole resistor
Resistance range: 25 kΩ to 1,000 MΩ
Temperature coefficient: ±25 ppm/°C from -55°C to +125°C
Load life stability: 0.25% per 1,000 hours at +125°C
Resistance tolerance options: ±0.1%, ±0.25%, ±0.5%, ±1%
Maximum continuous operating voltage up to 30 kV
-15 series increases maximum voltage by 60%

Exxelia Ohmcraft HVR 39

High Voltage Resistors
Resistance range from 100kΩ to 1TΩ
Tolerances from ±0.1% to ±20%
TCR from ±25 ppm/°C to >±200 ppm/°C
Power rating of 0.5W
Voltage rating of 2kV
Temperature range from -55°C to +150°C

Exxelia Ohmcraft HVR 29

High Voltage Resistors
Resistance range from 100kΩ to 1TΩ
Tolerances from ±0.1% to ±20%
TCR from ±25 ppm/°C to >±200 ppm/°C
Power rating of 0.5W
Voltage rating of 4kV
Temperature range from -55°C to +150°C

Exxelia Ohmcraft HVR 21

High Voltage Resistors
Resistance range from 100kΩ to 1TΩ
Tolerances from ±0.1% to ±20%
TCR from ±25 ppm/°C to >±200 ppm/°C
Power rating of 1W
Voltage rating of 10kV
Temperature range from -55°C to +150°C

Exxelia Ohmcraft HVR 42

High Voltage Resistors
Resistance range from 100kΩ to 1TΩ
Tolerances from ±0.1% to ±20%
TCR from ±25 ppm/°C to >±200 ppm/°C
Power rating of 2W
Voltage rating of 20kV
Temperature range from -55°C to +150°C

Exxelia Ohmcraft HVR 43

High Voltage Resistors
Resistance range from 100kΩ to 1TΩ
Tolerances from ±0.1% to ±20%
TCR from ±25 ppm/°C to >±200 ppm/°C
Power rating of 3W
Voltage rating of 30kV
Temperature range from -55°C to +150°C

Exxelia Ohmcraft HVR 56

High Voltage Resistors
Resistance range from 100kΩ to 1TΩ
Tolerances from ±0.1% to ±20%
TCR from ±25 ppm/°C to >±200 ppm/°C
Power rating of 6W
Voltage rating of 40kV
Temperature range from -55°C to +150°C

Susumu RGA1005 Series

Surface-mount high temperature thin film chip resistor
Temperature range of −55°C to +230°C
Maximum voltage of 50V
Thin film structure enabling low noise and anti-sulfur
AEC-Q200 compliant

Susumu RGA1608 Series

Surface-mount high temperature thin film chip resistor
Temperature range of −55°C to +230°C
Maximum voltage of 100V
Thin film structure enabling low noise and anti-sulfur
AEC-Q200 compliant

Susumu RGA2012 Series

Surface-mount high temperature thin film chip resistor
Temperature range of −55°C to +230°C
Maximum voltage of 150V
Thin film structure enabling low noise and anti-sulfur
AEC-Q200 compliant

Susumu RGT1005 Series

Surface-mount metal thin film chip resistor
Wide operating temperature range of −55°C to +175°C
Maximum voltage of 50V
Thin film structure enabling low noise and anti-sulfur
Long term stability with inorganic passivations
Resistance value series of either E24 or E96
AEC-Q200 compliant
