±10 ppm/°C series

Alpha RBD Series

Ultra-precision current sensing resistor
Resistance range form 0.01Ω to 1Ω
Tolerance from ±0.5% to ±5%
TCR of ±10 ppm/°C or ±25 ppm/°C
Power rating of 0.5W (at 70°C)
Temperature range from -65°C to +155°C

Alpha RBF Series

Ultra-precision current sensing resistor
Resistance range form 0.01Ω to 1Ω
Tolerance from ±0.5% to ±5%
TCR of ±10 ppm/°C or ±25 ppm/°C
Power rating of 1W (at 70°C)
Temperature range from -65°C to +155°C

Alpha RBH Series

Ultra-precision current sensing resistor
Resistance range form 0.01Ω to 0.1Ω
Tolerance from ±0.5% to ±5%
TCR of ±10 ppm/°C or ±25 ppm/°C
Power rating of 1.5W (at 70°C)
Temperature range from -65°C to +155°C

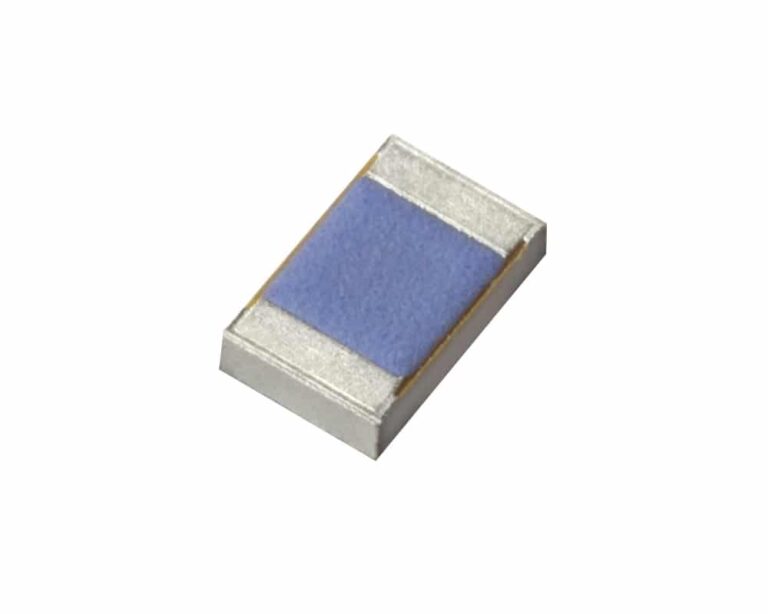

Alpha RWB Series

High precision wraparound resistor
Resistance range form 10Ω to 10kΩ
Tolerance from ±0.02% to ±0.5%
TCR of ±2 ppm/°C, ±5 ppm/°C or ±10 ppm/°C
Power rating of 0.2W (at 70°C)
Temperature range from -65°C to +155°C

Alpha RWC Series

High precision wraparound resistor
Resistance range form 5Ω to 130kΩ
Tolerance from ±0.01% to ±0.5%
TCR of ±2 ppm/°C, ±5 ppm/°C or ±10 ppm/°C
Power rating of 0.3W (at 70°C)
Temperature range from -65°C to +155°C

Alpha TLA Series

Conformally coated thin film precision resistor
Resistance range from 100kΩ to 5MΩ
Tolerance from ±0.05% to ±1%
TCR of ±5 ppm/°C or ±10 ppm/°C
Power rating of 0.125W (at +70°C)
Temperature Range from -25°C up to +155°C

Alpha TLC Series

Conformally coated thin film precision resistor
Resistance range from 200kΩ to 10MΩ
Tolerance from ±0.02% to ±1%
TCR of ±5 ppm/°C or ±10 ppm/°C
Power rating of 0.25W (at +70°C)
Temperature Range from -25°C up to +155°C

Caddock TF020 Series

Ultra-precision film through-hole resistor
Radial or axial leaded variants available
Maximum working voltage of 300V
Constructed with Caddock’s Tetrinox® resistance films
Long term stability to 0.01% per 1,000 hours
Storage temperature range from -55°C up to +105°C

Caddock TF050 Series

Ultra-precision film through-hole resistor
Radial or axial leaded variants available
Maximum working voltage of 1.4kV
Constructed with Caddock’s Tetrinox® resistance films
Long term stability to 0.01% per 1,000 hours
Storage temperature range from -55°C up to +105°C

Caddock TF626 Series

Ultra-precision film through-hole resistor
Radial or axial leaded variants available
Maximum working voltage of 300V
Constructed with Caddock’s Tetrinox® resistance films
Long term stability to 0.01% per 1,000 hours
Storage temperature range from -55°C up to +105°C

Caddock TF656 Series

Ultra-precision film through-hole resistor
Radial or axial leaded variants available
Maximum working voltage of 1.4kV
Constructed with Caddock’s Tetrinox® resistance films
Long term stability to 0.01% per 1,000 hours
Storage temperature range from -55°C up to +105°C

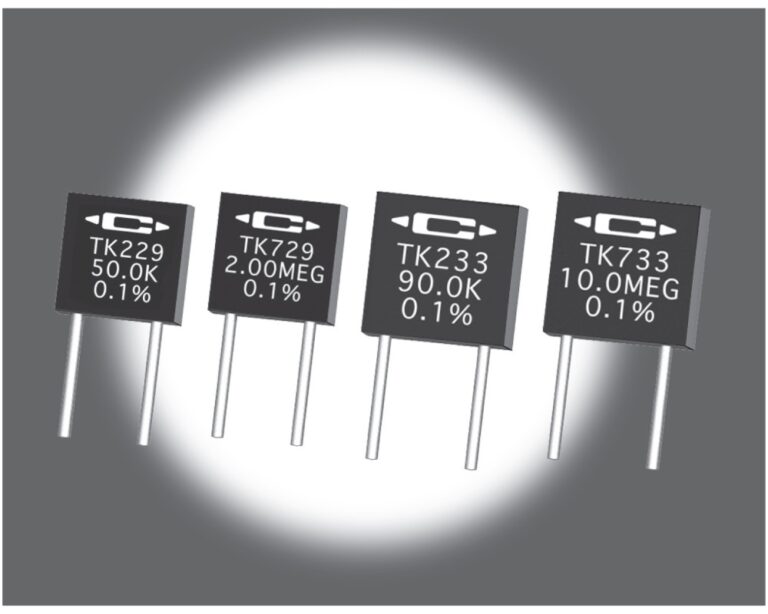

Caddock TK229 Series

Precision radial leaded film through-hole resistor
Caddock’s non-inductive performance
Maximum working voltage of 200V
Compact rectangular package with standard lead spacing
Constructed with Caddock’s Tetrinox® resistance films
Long-term absolute stability typically better than ±0.05% per 2,000 hours
Temperature range from -40°C up to +150°C

Caddock TK233 Series

Precision radial leaded film through-hole resistor
Caddock’s non-inductive performance
Maximum working voltage of 300V
Compact rectangular package with standard lead spacing
Constructed with Caddock’s Tetrinox® resistance films
Long-term absolute stability typically better than ±0.05% per 2,000 hours
Temperature range from -40°C up to +150°C

Caddock TK729 Series

Precision radial leaded film through-hole resistor
Caddock’s non-inductive performance
Maximum working voltage of 200V
Compact rectangular package with standard lead spacing
Constructed with Caddock’s Tetrinox® resistance films
Long-term absolute stability typically better than ±0.05% per 2,000 hours
Temperature range from -40°C up to +150°C

Caddock TK733 Series

Precision radial leaded film through-hole resistor
Caddock’s non-inductive performance
Maximum working voltage of 300V
Compact rectangular package with standard lead spacing
Constructed with Caddock’s Tetrinox® resistance films
Long-term absolute stability typically better than ±0.05% per 2,000 hours
Temperature range from -40°C up to +150°C

Caddock USG1105 Series

Ultra-stable precision high voltage axial leaded film through-hole resistors
Typical load life stability 0.025% per 1,000 hours
Temperature range -40°C to +85°C
Utilising Caddock’s Tetrinox® resistance film systems
Custom low TC HV strings are available: 50KV, 100KV, etc.

Alpha RBD Series

Ultra-precision current sensing resistor
Resistance range form 0.01Ω to 1Ω
Tolerance from ±0.5% to ±5%
TCR of ±10 ppm/°C or ±25 ppm/°C
Power rating of 0.5W (at 70°C)
Temperature range from -65°C to +155°C

Alpha RBF Series

Ultra-precision current sensing resistor
Resistance range form 0.01Ω to 1Ω
Tolerance from ±0.5% to ±5%
TCR of ±10 ppm/°C or ±25 ppm/°C
Power rating of 1W (at 70°C)
Temperature range from -65°C to +155°C

Alpha RBH Series

Ultra-precision current sensing resistor
Resistance range form 0.01Ω to 0.1Ω
Tolerance from ±0.5% to ±5%
TCR of ±10 ppm/°C or ±25 ppm/°C
Power rating of 1.5W (at 70°C)
Temperature range from -65°C to +155°C

Alpha RWB Series

High precision wraparound resistor
Resistance range form 10Ω to 10kΩ
Tolerance from ±0.02% to ±0.5%
TCR of ±2 ppm/°C, ±5 ppm/°C or ±10 ppm/°C
Power rating of 0.2W (at 70°C)
Temperature range from -65°C to +155°C

Alpha RWC Series

High precision wraparound resistor
Resistance range form 5Ω to 130kΩ
Tolerance from ±0.01% to ±0.5%
TCR of ±2 ppm/°C, ±5 ppm/°C or ±10 ppm/°C
Power rating of 0.3W (at 70°C)
Temperature range from -65°C to +155°C

Alpha TLA Series

Conformally coated thin film precision resistor
Resistance range from 100kΩ to 5MΩ
Tolerance from ±0.05% to ±1%
TCR of ±5 ppm/°C or ±10 ppm/°C
Power rating of 0.125W (at +70°C)
Temperature Range from -25°C up to +155°C

Alpha TLC Series

Conformally coated thin film precision resistor
Resistance range from 200kΩ to 10MΩ
Tolerance from ±0.02% to ±1%
TCR of ±5 ppm/°C or ±10 ppm/°C
Power rating of 0.25W (at +70°C)
Temperature Range from -25°C up to +155°C

Caddock TF020 Series

Ultra-precision film through-hole resistor
Radial or axial leaded variants available
Maximum working voltage of 300V
Constructed with Caddock’s Tetrinox® resistance films
Long term stability to 0.01% per 1,000 hours
Storage temperature range from -55°C up to +105°C

Caddock TF050 Series

Ultra-precision film through-hole resistor
Radial or axial leaded variants available
Maximum working voltage of 1.4kV
Constructed with Caddock’s Tetrinox® resistance films
Long term stability to 0.01% per 1,000 hours
Storage temperature range from -55°C up to +105°C

Caddock TF626 Series

Ultra-precision film through-hole resistor
Radial or axial leaded variants available
Maximum working voltage of 300V
Constructed with Caddock’s Tetrinox® resistance films
Long term stability to 0.01% per 1,000 hours
Storage temperature range from -55°C up to +105°C

Caddock TF656 Series

Ultra-precision film through-hole resistor
Radial or axial leaded variants available
Maximum working voltage of 1.4kV
Constructed with Caddock’s Tetrinox® resistance films
Long term stability to 0.01% per 1,000 hours
Storage temperature range from -55°C up to +105°C

Caddock TK229 Series

Precision radial leaded film through-hole resistor
Caddock’s non-inductive performance
Maximum working voltage of 200V
Compact rectangular package with standard lead spacing
Constructed with Caddock’s Tetrinox® resistance films
Long-term absolute stability typically better than ±0.05% per 2,000 hours
Temperature range from -40°C up to +150°C

Caddock TK233 Series

Precision radial leaded film through-hole resistor
Caddock’s non-inductive performance
Maximum working voltage of 300V
Compact rectangular package with standard lead spacing
Constructed with Caddock’s Tetrinox® resistance films
Long-term absolute stability typically better than ±0.05% per 2,000 hours
Temperature range from -40°C up to +150°C

Caddock TK729 Series

Precision radial leaded film through-hole resistor
Caddock’s non-inductive performance
Maximum working voltage of 200V
Compact rectangular package with standard lead spacing
Constructed with Caddock’s Tetrinox® resistance films
Long-term absolute stability typically better than ±0.05% per 2,000 hours
Temperature range from -40°C up to +150°C

Caddock TK733 Series

Precision radial leaded film through-hole resistor
Caddock’s non-inductive performance
Maximum working voltage of 300V
Compact rectangular package with standard lead spacing
Constructed with Caddock’s Tetrinox® resistance films
Long-term absolute stability typically better than ±0.05% per 2,000 hours
Temperature range from -40°C up to +150°C

Caddock USG1105 Series

Ultra-stable precision high voltage axial leaded film through-hole resistors
Typical load life stability 0.025% per 1,000 hours
Temperature range -40°C to +85°C
Utilising Caddock’s Tetrinox® resistance film systems
Custom low TC HV strings are available: 50KV, 100KV, etc.
