UHVC series
Supporting Manufacturer Information
- Exxelia Ohmcraft's Case Size Application Note
- Exxelia Ohmcraft's Glossary Application Note
- Exxelia Ohmcraft's High-Frequency Application Note
- Exxelia Ohmcraft's High-Value Resistor White Paper
- Exxelia Ohmcraft's High-Voltage Resistor Application Note
- Exxelia Ohmcraft's High-Voltage White Paper
- Exxelia Ohmcraft's Lead Free Policy Application Note
- Exxelia Ohmcraft's Low Current Noise White Paper
- Exxelia Ohmcraft's Micropenning Application Note
- Exxelia Ohmcraft's Resistor Pulse White Paper
- Exxelia Ohmcraft's Solder Reflow Application Note
- Exxelia Ohmcraft's Specifying Resistors Application Note
- Exxelia Ohmcraft's TCR Tracking White Paper
- Exxelia Ohmcraft's Tight Ratio Tolerance White Paper
- Exxelia Ohmcraft's Voltage Ratio And Coefficiant Application Note
- Ultra High Voltage SMD Resistors
- Voltage Ratings from 3kV to 20kV
- Resistance Values up to 50Gฮฉ (untrimmed resistors)
- Standard chip sizes of 2010, 2512, 3512, 4020 & 5020 *
- Tolerances of ยฑ1%, ยฑ2% or ยฑ5% (trimmed), ยฑ10% or ยฑ20% (untrimmed)
- TCR of ยฑ100 ppm/ยฐC or ยฑ200 ppm/ยฐC
- Ultra-high stability
- Very low noise
- Temperature range from -55ยฐC up to 150ยฐC

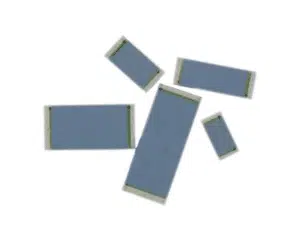

* Custom configurations are available upon request The UHVC ultra-high voltage chip resistor series from Exxelia Ohmcraftยฎ offers the highest voltage ratings of up to 20kV available in a SMD resistor. By utilising their patented Micropenยฎ precision printing technology, they are able to provide a superior ultra-high stability (tolerances down to ยฑ1% and TCR as low as ยฑ100 ppm/ยฐC) and very low noise. The UHVC series offers a resistance range up to 10Gฮฉ for trimmed resistors or up to 50Gฮฉ for untrimmed resistors.Exxelia Ohmcraftโs UHVC ultra-high voltage surface mount resistor series are ideal for replacing through hole resistors due to their high voltage rating capabilities, allowing savings on assembly and board space costs. They could also be used to replace resistor arrays with a single-chip resistor.Due to the high voltage ratings of the UHVC series, these resistors must be potted upon assembly.Due to numerous possible options for the UHVC resistor series, each request will be individually reviewed. Please include the following information for any requirement:
- Resistance value
- Required SMD package size
- Tolerance (%)
- TCR value (ppm/ยฐC)
- Voltage rating
- Termination
- Ultra High Voltage SMD Resistors
- Resistance range from 90Mฮฉ to 50Gฮฉ
- Tolerances from ยฑ1% to ยฑ20%
- TCR of ยฑ100 ppm/ยฐC or ยฑ200 ppm/ยฐC
- Voltage rating from 3kV to 6kV
- Temperature range from -55ยฐC to +150ยฐC
- Ultra High Voltage SMD Resistors
- Resistance range from 120Mฮฉ to 50Gฮฉ
- Tolerances from ยฑ1% to ยฑ20%
- TCR of ยฑ100 ppm/ยฐC or ยฑ200 ppm/ยฐC
- Voltage rating from 4kV to 10kV
- Temperature range from -55ยฐC to +150ยฐC
- Ultra High Voltage SMD Resistors
- Resistance range from 85Mฮฉ to 50Gฮฉ
- Tolerances from ยฑ1% to ยฑ20%
- TCR of ยฑ100 ppm/ยฐC or ยฑ200 ppm/ยฐC
- Voltage rating from 4kV to 14kV
- Temperature range from -55ยฐC to +150ยฐC
- Ultra High Voltage SMD Resistors
- Resistance range from 150Mฮฉ to 50Gฮฉ
- Tolerances from ยฑ1% to ยฑ20%
- TCR of ยฑ100 ppm/ยฐC or ยฑ200 ppm/ยฐC
- Voltage rating from 6kV to 16kV
- Temperature range from -55ยฐC to +150ยฐC
- Ultra High Voltage SMD Resistors
- Resistance range from 90Mฮฉ to 50Gฮฉ
- Tolerances from ยฑ1% to ยฑ20%
- TCR of ยฑ100 ppm/ยฐC or ยฑ200 ppm/ยฐC
- Voltage rating from 6kV to 20kV
- Temperature range from -55ยฐC to +150ยฐC
