SRT Resistor Technology

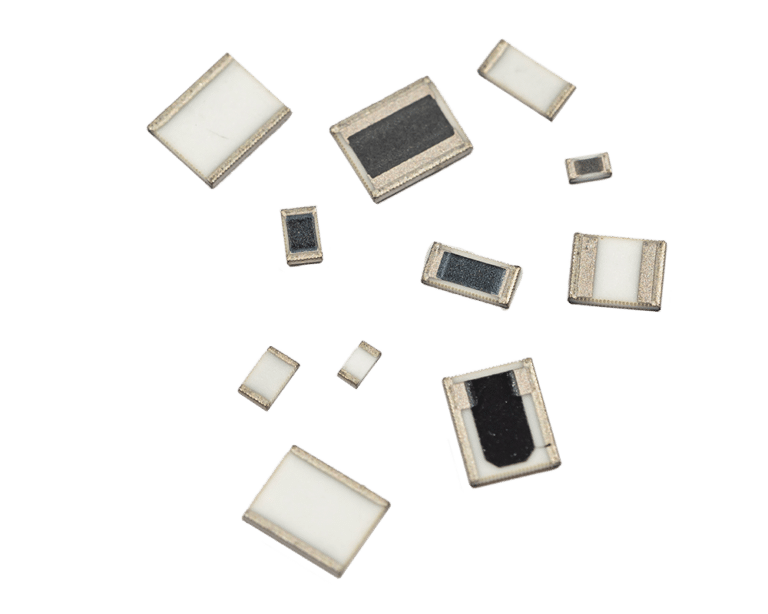

CRB series

Services

Downloads

SRT CRB 0603

Trimmable non-magnetic, thick film chip resistor
Resistance range from 1Ω to 10MΩ
Tolerances from ±5% to ±30%
TCR from ±50 ppm/°C to ±250 ppm/°C
Power rating of 0.1W (at +70°C)
Temperature range from -55°C up to +155°C

SRT CRB 0603-HT

High temperature trimmable thick film chip resistor
0603 package size
Temperature range of -55°C to +300°C
Voltage rating of 75V trimmed or 220V untrimmed (trimming ratios 1.5/single cut)
No organics
PtAg (Platinum-Silver), unpassivated contact areas for soldering and conductive gluing
Non-magnetic
Suitable for laser and air-abrasive trimming
High trimming ratios by special geometries

SRT CRB 0805

Trimmable non-magnetic, thick film chip resistor
Resistance range from 1Ω to 10MΩ
Tolerances from ±5% to ±30%
TCR from ±50 ppm/°C to ±250 ppm/°C
Power rating of 0.125W (at +70°C)
Temperature range from -55°C up to +155°C

SRT CRB 0805-HT

High temperature trimmable thick film chip resistor
0805 package size
Temperature range of -55°C to +300°C
Voltage rating of 100V trimmed or 300V untrimmed (trimming ratios 1.5/single cut)
No organics
PtAg (Platinum-Silver), unpassivated contact areas for soldering and conductive gluing
Non-magnetic
Suitable for laser and air-abrasive trimming
High trimming ratios by special geometries

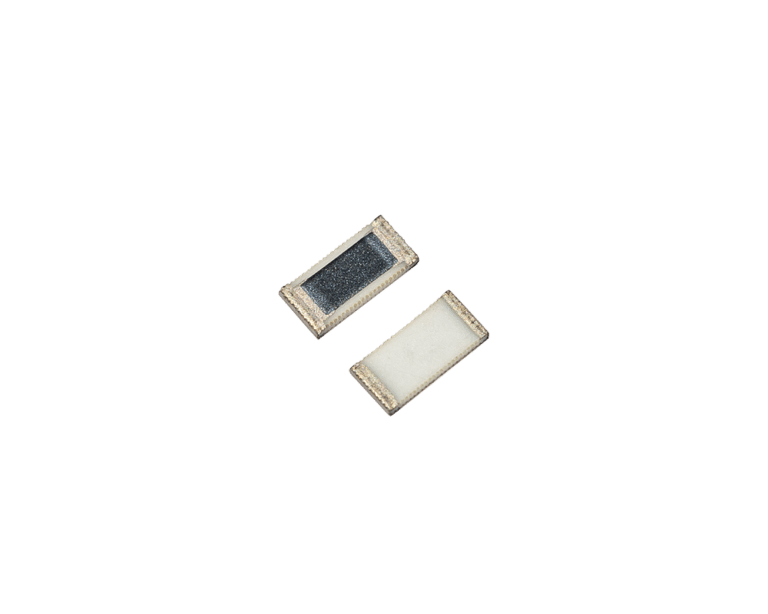

SRT CRB 1206

Trimmable non-magnetic, thick film chip resistor
Resistance range from 1Ω to 10MΩ
Tolerances from ±5% to ±30%
TCR from ±50 ppm/°C to ±250 ppm/°C
Power rating of 0.25W (at +70°C)
Temperature range from -55°C up to +155°C

SRT CRB 1206-HT

High temperature trimmable thick film chip resistor
1206 package size
Temperature range of -55°C to +300°C
Voltage rating of 200V trimmed or 600V untrimmed (trimming ratios 2/single cut)
No organics
PtAg (Platinum-Silver), unpassivated contact areas for soldering and conductive gluing
Non-magnetic
Suitable for laser and air-abrasive trimming
High trimming ratios by special geometries

SRT CRB 1210

Trimmable non-magnetic, thick film chip resistor
Resistance range from 1Ω to 10MΩ
Tolerances from ±5% to ±30%
TCR from ±50 ppm/°C to ±250 ppm/°C
Power rating of 0.35W (at +70°C)
Temperature range from -55°C up to +155°C

SRT CRB 1210-HT

High temperature trimmable thick film chip resistor
1210 package size
Temperature range of -55°C to +300°C
Voltage rating of 200V trimmed or 600V untrimmed (trimming ratios 3/single cut)
No organics
PtAg (Platinum-Silver), unpassivated contact areas for soldering and conductive gluing
Non-magnetic
Suitable for laser and air-abrasive trimming
High trimming ratios by special geometries

SRT CRB 1216

Trimmable non-magnetic, thick film chip resistor
Resistance range from 1Ω to 10MΩ
Tolerances from ±5% to ±30%
TCR from ±50 ppm/°C to ±250 ppm/°C
Power rating of 0.4W (at +70°C)
Temperature range from -55°C up to +155°C

SRT CRB 1216-HT

High temperature trimmable thick film chip resistor
1216 package size
Temperature range of -55°C to +300°C
Voltage rating of 200V trimmed or 600V untrimmed (trimming ratios 4/single cut)
No organics
PtAg (Platinum-Silver), unpassivated contact areas for soldering and conductive gluing
Non-magnetic
Suitable for laser and air-abrasive trimming
High trimming ratios by special geometries

SRT CRB 1216H

Trimmable non-magnetic, thick film chip resistor
Resistance range from 1Ω to 10MΩ
Tolerances from ±5% to ±30%
TCR from ±50 ppm/°C to ±250 ppm/°C
Power rating of 0.4W (at +70°C)
Temperature range from -55°C up to +155°C

SRT CRB 1216H-HT

High temperature trimmable thick film chip resistor
1216 package size
Temperature range of -55°C to +300°C
Voltage rating of 200V trimmed or 600V untrimmed (trimming ratios 8/single cut)
No organics
PtAg (Platinum-Silver), unpassivated contact areas for soldering and conductive gluing
Non-magnetic
Suitable for laser and air-abrasive trimming
High trimming ratios by special geometries
