SRT Resistor Technology

CRA series

Services

Downloads

SRT CRA 0603

Trimmable thick film chip resistor
Resistance range from 1Ω to 10MΩ
Tolerances from ±5% to ±30%
TCR from ±50 ppm/°C to ±250 ppm/°C
Power rating of 0.1W (at +70°C)
Temperature range from -55°C up to +155°C

SRT CRA 0805

Trimmable thick film chip resistor
Resistance range from 1Ω to 10MΩ
Tolerances from ±5% to ±30%
TCR from ±50 ppm/°C to ±250 ppm/°C
Power rating of 0.125W (at +70°C)
Temperature range from -55°C up to +155°C

SRT CRA 1206

Trimmable thick film chip resistor
Resistance range from 1Ω to 10MΩ
Tolerances from ±5% to ±30%
TCR from ±50 ppm/°C to ±250 ppm/°C
Power rating of 0.25W (at +70°C)
Temperature range from -55°C up to +155°C

SRT CRA 1210

Trimmable thick film chip resistor
Resistance range from 1Ω to 10MΩ
Tolerances from ±5% to ±30%
TCR from ±50 ppm/°C to ±250 ppm/°C
Power rating of 0.35W (at +70°C)
Temperature range from -55°C up to +155°C

SRT CRA 1216

Trimmable thick film chip resistor
Resistance range from 1Ω to 10MΩ
Tolerances from ±5% to ±30%
TCR from ±50 ppm/°C to ±250 ppm/°C
Power rating of 0.4W (at +70°C)
Temperature range from -55°C up to +155°C

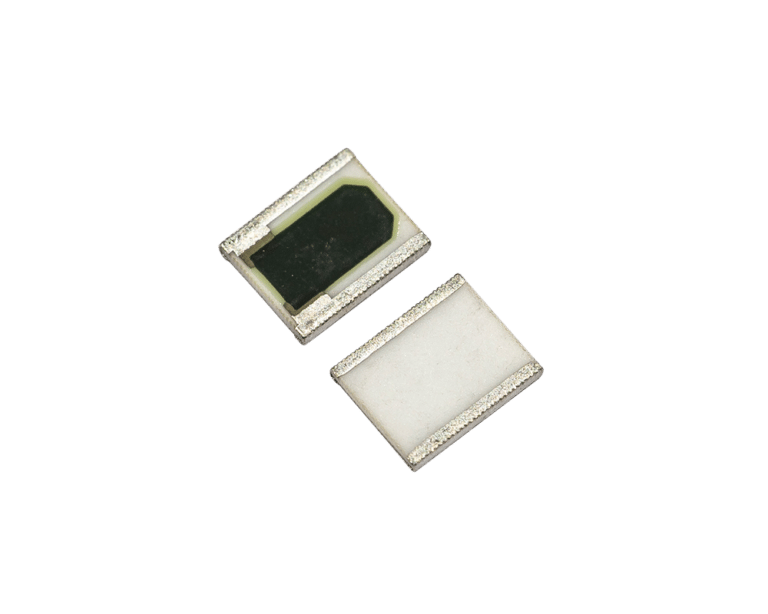

SRT CRA 1216H

Trimmable thick film chip resistor
Resistance range from 1Ω to 10MΩ
Tolerances from ±5% to ±30%
TCR from ±50 ppm/°C to ±250 ppm/°C
Power rating of 0.4W (at +70°C)
Temperature range from -55°C up to +155°C
