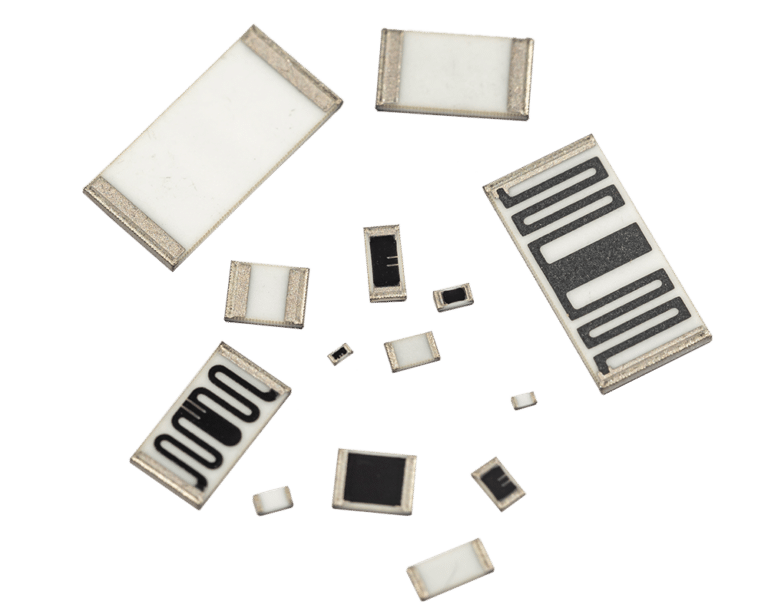

CHS series

SRT CHS 0402

Non-magnetic thick film chip resistor
Resistance range from 10MΩ to 100GΩ
Tolerances from ±5% to ±30%
TCR from ±50 ppm/°C to ±3000 ppm/°C
Power rating of 0.05W (at +70°C)
Temperature range from -55°C up to +155°C

SRT CHS 0402-HT

High temperature, non-magnetic chip resistor
Resistance range from 10MΩ to 100GΩ
Tolerances from ±5% to ±30%
TCR from ±50 ppm/°C to ±3000 ppm/°C
Power rating of 0.05W (at +70°C)
Temperature range from -55°C up to +300°C

SRT CHS 0603

Non-magnetic thick film chip resistor
Resistance range from 10MΩ to 100GΩ
Tolerances from ±1% to ±30%
TCR from ±50 ppm/°C to ±2000 ppm/°C
Power rating of 0.1W (at +70°C)
Temperature range from -55°C up to +155°C

SRT CHS 0603-HT

High temperature, non-magnetic chip resistor
Resistance range from 10MΩ to 100GΩ
Tolerances from ±2% to ±30%
TCR from ±50 ppm/°C to ±3000 ppm/°C
Power rating of 0.1W (at +70°C)
Temperature range from -55°C up to +300°C

SRT CHS 0805

Non-magnetic thick film chip resistor
Resistance range from 10MΩ to 100GΩ
Tolerances from ±0.5% to ±30%
TCR from ±50 ppm/°C to ±2000 ppm/°C
Power rating of 0.125W (at +70°C)
Temperature range from -55°C up to +155°C

SRT CHS 0805-HT

High temperature, non-magnetic chip resistor
Resistance range from 10MΩ to 100GΩ
Tolerances from ±2% to ±30%
TCR from ±50 ppm/°C to ±2000 ppm/°C
Power rating of 0.125W (at +70°C)
Temperature range from -55°C up to +300°C

SRT CHS 1206

Non-magnetic thick film chip resistor
Resistance range from 10MΩ to 100GΩ
Tolerances from ±0.5% to ±30%
TCR from ±25 ppm/°C to ±2000 ppm/°C
Power rating of 0.25W (at +70°C)
Temperature range from -55°C up to +155°C

SRT CHS 1206-HT

High temperature, non-magnetic chip resistor
Resistance range from 10MΩ to 100GΩ
Tolerances from ±1% to ±30%
TCR from ±25 ppm/°C to ±2000 ppm/°C
Power rating of 0.250W (at +70°C)
Temperature range from -55°C up to +300°C

SRT CHS 1210

Non-magnetic thick film chip resistor
Resistance range from 10MΩ to 1TΩ
Tolerances from ±0.5% to ±30%
TCR from ±25 ppm/°C to ±2000 ppm/°C
Power rating of 0.35W (at +70°C)
Temperature range from -55°C up to +155°C

SRT CHS 1210-HT

High temperature, non-magnetic chip resistor
Resistance range from 10MΩ to 100GΩ
Tolerances from ±1% to ±30%
TCR from ±25 ppm/°C to ±2000 ppm/°C
Power rating of 0.350W (at +70°C)
Temperature range from -55°C up to +300°C

SRT CHS 2512

Non-magnetic thick film chip resistor
Resistance range from 10MΩ to 1TΩ
Tolerances from ±0.5% to ±30%
TCR from ±25 ppm/°C to ±1000 ppm/°C
Power rating of 1W (at +70°C)
Temperature range from -55°C up to +155°C

SRT CHS 2512-HT

High temperature, non-magnetic chip resistor
Resistance range from 10MΩ to 100GΩ
Tolerances from ±1% to ±30%
TCR from ±25 ppm/°C to ±1000 ppm/°C
Power rating of 1W (at +70°C)
Temperature range from -55°C up to +300°C

SRT CHS 4020

Non-magnetic thick film chip resistor
Resistance range from 10MΩ to 1TΩ
Tolerances from ±0.25% to ±30%
TCR from ±25 ppm/°C to ±1000 ppm/°C
Power rating of 1W (at +70°C)
Temperature range from -55°C up to +155°C

SRT CHS 4020-HT

High temperature, non-magnetic chip resistor
Resistance range from 10MΩ to 100GΩ
Tolerances from ±1% to ±30%
TCR from ±25 ppm/°C to ±1000 ppm/°C
Power rating of 2W (at +70°C)
Temperature range from -55°C up to +300°C
