Coto 9001 Series

High reliability reed relays
High insulation resistance of 10¹²Ω minimum
Switching current 0.5A
Optional coil suppression diode
Temperature range −20°C to +85°C

Coto 9002 Series

High reliability reed relays
High insulation resistance of 10¹²Ω minimum
Switching current 0.5A
Optional coil suppression diode
Optional coaxial shield for 50Ω impedance
Temperature range −20°C to +85°C

Coto 9007 Series

Economy reed relays
High insulation resistance of 10¹⁰Ω minimum
Switching current 0.5A
Optional coil suppression diode
Optional magnetic shield
Temperature range −20°C to +85°C

Coto 9011 Series

Miniature moulded reed relays
High insulation resistance of 10¹²Ω minimum
Switching current 0.25A
Optional coil suppression diode
External magnetic shielding reduces interaction
Temperature range −20°C to +85°C

Coto 9012 Series

Miniature moulded reed relays
High insulation resistance of 10¹²Ω minimum
Switching current 0.5A
Moulded 4 pin SIP package
Optional coil suppression diode
External magnetic shielding reduces interaction
Temperature range −20°C to +85°C

Coto 9091 Series

Miniature moulded SIP reed relays
High insulation resistance of 10¹²Ω minimum
Switching current 0.5A
Optional coil suppression diode
Optional internal magnetic shielding which reduces interaction
Temperature range −20°C to +85°C

Coto 9092 Series

Miniature moulded SIP reed relays
High insulation resistance of 10¹²Ω minimum
Switching current 0.5A
Optional coil suppression diode
Optional external magnetic shielding which reduces interaction
Temperature range −20°C to +85°C

Coto 9104 Series

Surface-mount high voltage SIP reed relay
Insulation resistance of 10¹¹Ω minimum
Switching current 0.5A
Optional coil suppression diode
Magnetic shield
Temperature range −20°C to +85°C

Coto 9117 Series

Miniature moulded reed relays
High insulation resistance of 10¹²Ω minimum
Switching current 0.25A
Moulded 4 pin SIP package
Optional coil suppression diode
Internal magnetic shielding reduces interaction
Temperature range −20°C to +85°C

Coto 9201 Series

Surface-mount SIP reed relays
High insulation resistance of 10¹²Ω minimum
Switching current 0.5A
Temperature range −20°C to +85°C

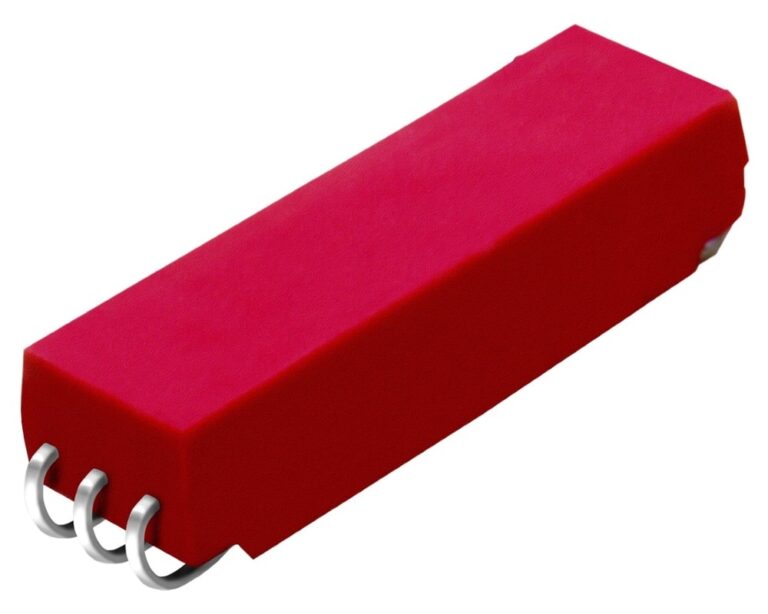

Coto 9202 Series

Surface-mount SIP reed relays
High insulation resistance of 10¹²Ω minimum
Switching current 0.5A
50Ω Coaxial shield
RF and fast rise time pulse switching
Temperature range −20°C to +85°C

Coto 9290 Series

Surface-mount SIP reed relays
High insulation resistance of 10¹²Ω minimum
Switching current 0.5A
50Ω Coaxial shield
RF and fast rise time pulse switching
Moulded 6 pin SIP package with optional gull wing or J-lead connections
External magnetic shield
Temperature range −20°C to +85°C

Coto 9301 Series

Surface-mount SIP reed relays
High insulation resistance of 10¹²Ω minimum
Switching current 0.5A
Optional gull wing or J-lead 4 pin SIP package
Tape and reel available
Proven reliable to switch telephone loads
Temperature range −20°C to +85°C

Coto 9401 Series

Surface-mount SIP reed relays
High insulation resistance of 10¹²Ω minimum
Switching current 0.5A
Optional gull wing or J-lead 4 pin SIP package
Tape and reel available
Temperature range −20°C to +85°C

Coto 9402 Series

Surface-mount SIP reed relays
High insulation resistance of 10¹²Ω minimum
Switching current 0.5A
Optional gull wing or J-lead 4 pin SIP package
Tape and reel available
Coaxial sheild for 50Ω impedance
Excellent for RF and fast rise time pulse switching upto 2GHz
Temperature range −20°C to +85°C

Coto 9814 Series

Surface-mount miniature reed relays
High insulation resistance of 10¹²Ω minimum
Switching current 0.25A
Moulded SMD package
Coaxial shield for 50Ω impedance
Available in axial, gull wing and J lead configurations
External magnetic shield
Tape and reel packaging available
Temperature range −20°C to +85°C
