0.1Ω series

DTPM Adaptor Board AB126/127 Assembly

Adaptor Board AB126/127 with SMD resistors
Resistance ranges from 0.0068Ω to 3.9Ω *
Tolerances of 0.5% and 1%
Power Rating of 5W

DTPM Adaptor Board AB129 Assembly

Adaptor Board AB129 with SMD resistors
Resistance ranges from 0.001Ω to 1Ω *
Tolerances of 0.5% and 1%
Power Rating of 4W

Isabellenhütte A-H1 Series

A-H1 current sense resistor
4-terminal through-hole design
Resistance range from 0.001Ω to 100Ω
Tolerance of ±0.1% or ±1%
TCR of <±30 ppm/°C
Power rating of 10W on a suitable heat sink
Temperature range from -55°C to +140°C

Isabellenhütte A-H2 Series

Current sense resistor
4-terminal through-hole design
Resistance range from 0.001Ω to 100Ω
Tolerance of ±0.1% or ±1%
TCR of <±30 ppm/°C
Power rating of 10W on a suitable heat sink
Temperature range from -55°C to +140°C

Isabellenhütte AZ-H1 Series

Current sensing resistor
4-terminal through-hole design
Resistance range from 0.002Ω to 5Ω
Tolerance of ±0.1% or ±1%
TCR of <±3 ppm/°C or <±10 ppm/°C (+20°C to +60°C)
Power rating 10W on a suitable heat sink
Temperature range from -55°C to +140°C

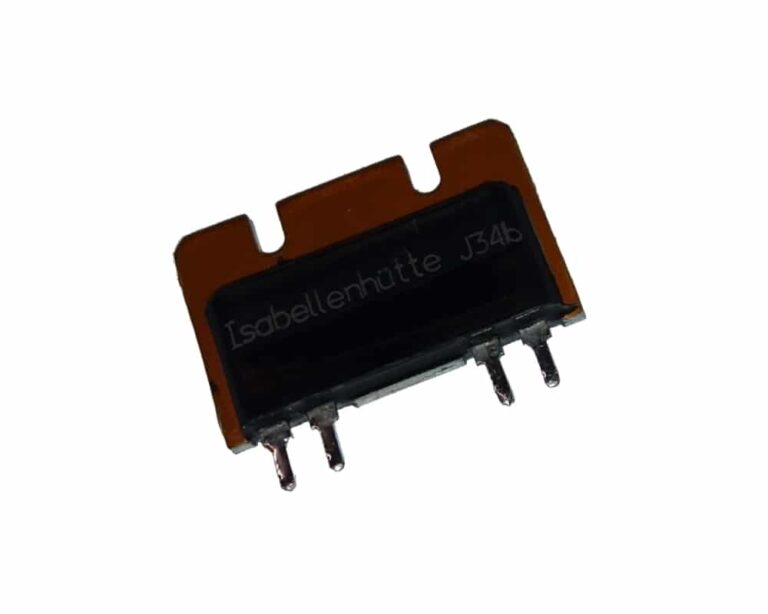

Isabellenhütte AZ-H2 Series

Current sensing resistor
4-terminal through-hole design
Resistance range from 0.002Ω to 1Ω
Tolerance of ±0.1% or ±1%
TCR of <±3 ppm/°C or <±10 ppm/°C (+20°C to +60°C)
Power rating 10W on a suitable heat sink
Temperature range from -55°C to +140°C

Isabellenhütte CMK Series

Current sensing resistor
Resistance range from 0.01Ω to 0.1Ω
Tolerances of ±1% and ±5%
TCR of <50 ppm/°C
Power rating 1W (at +70°C)
Temperature range from -65°C to +170°C

Isabellenhütte CMP Series

Current sensing resistor
Surface-mount 2010 chip size
Resistance range from 0.01Ω to 0.5Ω
Tolerances of ±1% and ±5%
TCR of <50 ppm/°C
Power rating 2W (at +70°C)
Temperature range from -65°C to +170°C

Isabellenhütte CMS Series

Current sensing resistor
Surface-mount 2512 chip size
Resistance range from 0.01Ω to 0.5Ω
Tolerances of ±1% and ±5%
TCR of <50 ppm/°C
Power rating 2.5W (at +70°C)
Temperature range from -65°C to +170°C

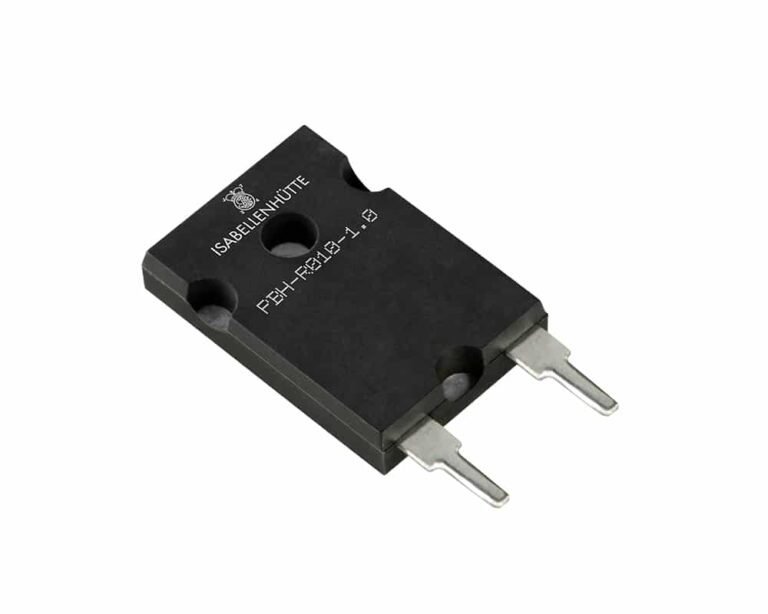

Isabellenhütte PBH Series

Power precision resistor
2-terminal through-hole design
Resistance range from 0.002Ω to 100Ω
Tolerance from ±0.5%
TCR of <50 ppm/°C
Power rating 10W on a suitable heat sink
Temperature range from -55°C to +125°C

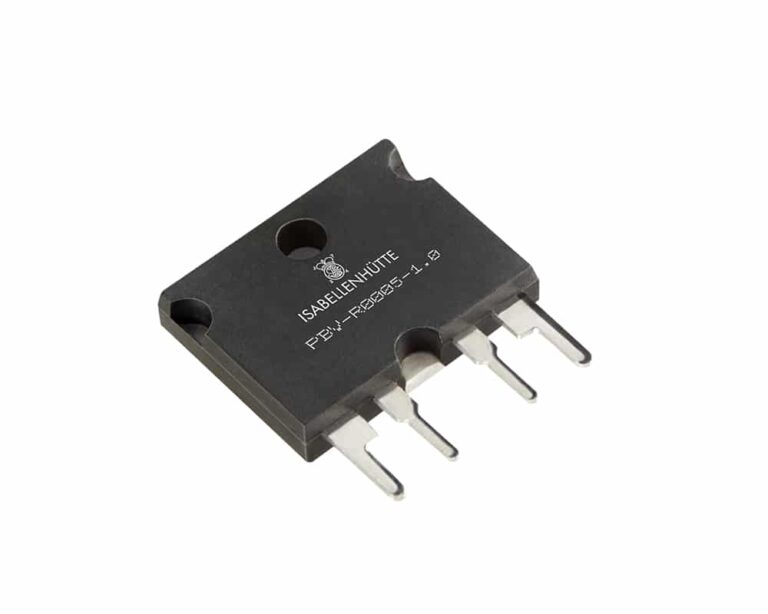

Isabellenhütte PBV Series

Current sensing precision resistor
4-terminal through-hole design
Resistance range from 0.0005Ω to 1Ω
Tolerance from ±0.5%
TCR of <30 ppm/°C
Power rating 10W on a suitable heat sink
Temperature range from -55°C to +125°C

Isabellenhütte PMH Series

Bondable high-power precision resistor
Gold plated 2 & 4-terminal surface-mount 2512 chip size
Resistance range from 0.005Ω to 0.4Ω
Tolerance from ±0.5%
TCR value <±30 ppm/°C
Power rating of 5W
Temperature range from -55°C to +170°C

Isabellenhütte RUG-Z Series

High-precision shunt resistor
4-terminal surface mount design
Resistance range from 0.0005Ω to 100Ω
Tolerances of ±0.1% and ±1%
TCR values from <±1 ppm/°C
Power rating of 250W on a suitable heat sink
Temperature range from -55°C to +110°C

Isabellenhütte SMK Series

Current sensing precision resistor
2-terminal surface-mount design in a 1206 chip size
Resistance range from 0.008Ω to 0.5Ω
Tolerances of 1% and ±5%
TCR from <±50ppm/°C
Power rating of 1W (at 110°C)
Temperature range -65°C to +170°C

Isabellenhütte SMP Series

Current sensing precision resistor
2-terminal surface-mount design in a 2010 chip size
Resistance range from 0.005Ω to 1Ω
Tolerances of ±0.5% or ±1%
TCR of <50 ppm/°C
Power rating of 3W (at +70°C)
Temperature range -65°C to +170°C

Isabellenhütte SMP-PW Series

Space approved precision current sensing resistor
2-terminal surface-mount design in a 2010 chip size
Resistance Range from 0.005Ω to 1Ω
Tolerances of ±0.5% and ±1%
TCR from <±50ppm/°C (+22°C to +60°C)
Power rating of 1W (at +130°C)
Temperature range from -55°C to +170°C
