0.04Ω series

Isabellenhütte SMS Series

Current sensing precision resistor
2-terminal surface-mount design in a 2512 chip size
Resistance range from 0.005Ω to 1Ω
Tolerances from ±0.5% to ±5%
TCR of <±50 ppm/°C
Power rating of 5W (at +70°C)
Temperature range from -65°C to +170°C

Isabellenhütte SMS-PW Series

Space approved current sensing precision resistor
2-terminal surface-mount design in a 2512 chip size
Resistance range of 0.003Ω to 1Ω
Tolerances of ±0.5% and ±1%
TCR from ±50ppm/°C (+22°C to +60°C)
Power rating of 2W (at +120°C)
Temperature range from -55°C to +170°C

Isabellenhütte SMT Series

Current sensing precision resistor
2-terminal surface-mount 2817 chip size
Resistance range from 0.004Ω to 4.7Ω
Tolerance range from ±0.5% to ±5%
TCR from <±50 ppm/°C
Power rating of 5W (at +105°C)
Temperature range -65°C to +170°C

Isabellenhütte SMT-PW Series

Space approved current sensing precision resistor
2-terminal surface-mount design in a 2817 chip size
Resistance range from 0.004Ω to 2Ω
Tolerances of ±0.5% and ±1%
TCR from <±50ppm/°C
Power rating of 3W (at +130°C)
Temperature range from -55°C to +170°C

Isabellenhütte VMS Series

Current sensing precision resistor
2-terminal surface-mount 2512 chip size
Resistance range from 0.005Ω to 1Ω
Tolerance range from ±1% to ±5%
TCR of <±20 ppm/°C
Power rating 4W (at +70°C)
Temperature range from -65°C to +170°C

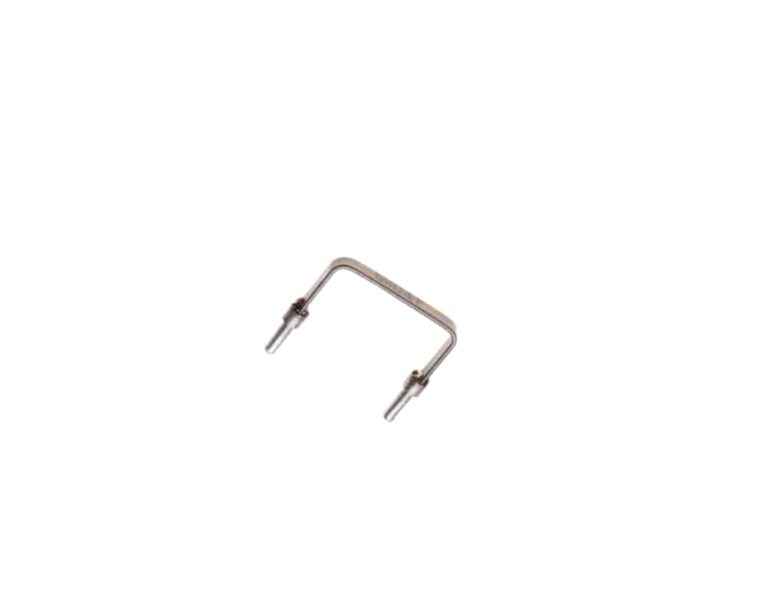

Riedon MSR-1 Series

Through-hole bare metal element with an all-welded construction
Low inductance (<10nH)
Ideal for current sensing and shunt applications
Temperature range of up to +275°C
Maximum rated operating temperature of +85°C

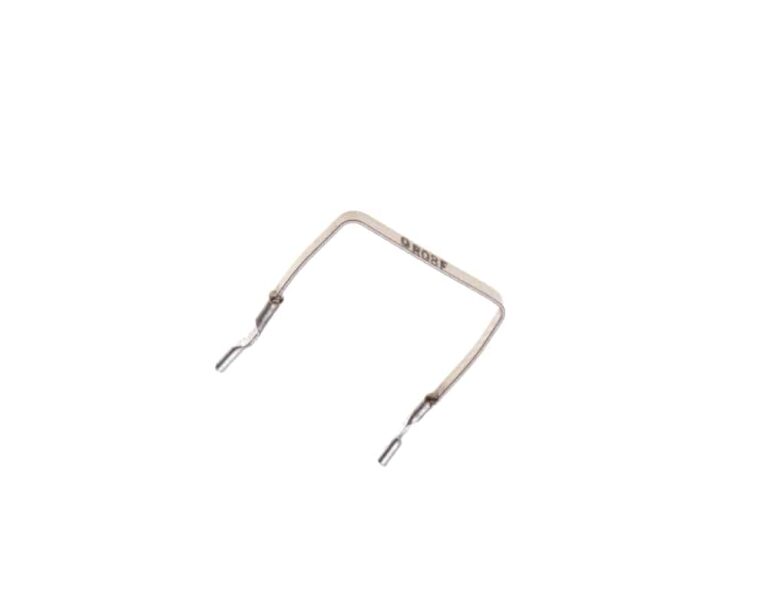

Riedon MSR-3 Series

Through-hole bare metal element with an all-welded construction
Low inductance (<10nH)
Ideal for current sensing and shunt applications
Temperature range of up to +275°C
Maximum rated operating temperature of +85°C
