Isabellenhütte Powder Metallurgy Information

0.009Ω series

Isabellenhütte SMS Series

Current sensing precision resistor
2-terminal surface-mount design in a 2512 chip size
Resistance range from 0.005Ω to 1Ω
Tolerances from ±0.5% to ±5%
TCR of <±50 ppm/°C
Power rating of 5W (at +70°C)
Temperature range from -65°C to +170°C

Susumu KRL0816 Series

Current sensing surface-mount chip resistor
Short sided terminal design with an 0603 chip size
Resistance values from 0.05Ω to 0.1Ω
Temperature range options of −55°C to +155°C / +175°C
Tolerance of ±1% or ±2%
Power rating of 0.3W
Certified AEC-Q200 compliant

Susumu KRL11050 Series

Current sensing surface-mount chip resistor
Long sided terminal design with a 4320 chip size
Resistance values from 0.001Ω up to 0.5Ω
Temperature range options of −55°C to +155°C / +175°C
Tolerance of ±1% or ±2%
Power rating of 6W
Certified AEC-Q200 compliant

Susumu KRL11050T4 Series

Current sensing surface-mount chip resistor
4 sided terminal design with a 4320 chip size
Resistance values from 0.001Ω up to 0.5Ω
Temperature range options of −55°C to +155°C / +175°C
Separated voltage terminal for precise measurement of voltage
Power rating of 5W
Certified AEC-Q200 compliant

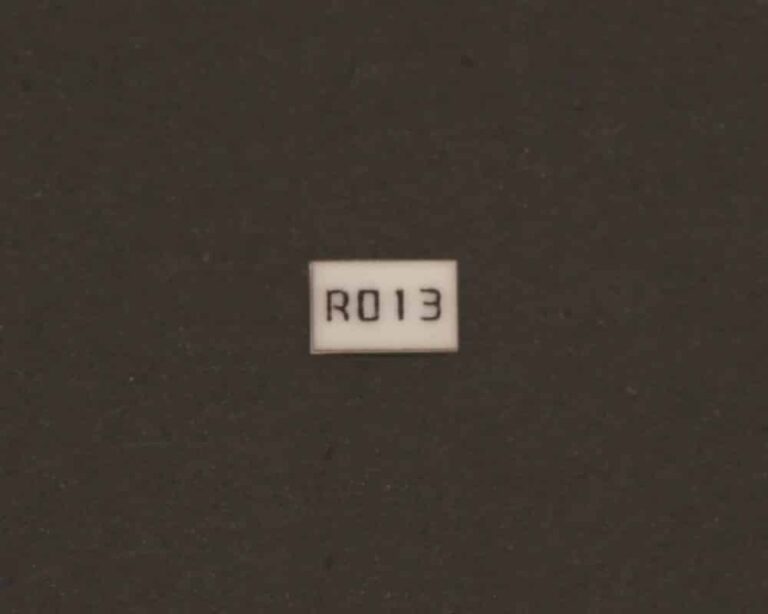

Susumu KRL1220 Series

Current sensing surface-mount chip resistor
Short sided terminal design with an 0805 chip size
Resistance values from 0.005Ω to 0.5Ω
Temperature range options of −55°C to +155°C / +175°C
Tolerance of ±1% or ±2%
Power rating of 0.5W
Certified AEC-Q200 compliant

Susumu KRL15075 Series

Current sensing surface-mount chip resistor
Long sided terminal design with a 5930 chip size
Resistance values from 0.001Ω up to 0.5Ω
Temperature range options of −55°C to +155°C / +175°C
Tolerance of ±1% or ±2%
Power rating of 10W
Certified AEC-Q200 compliant

Susumu KRL1608 Series

Current sensing surface-mount chip resistor
Long sided terminal design with a 0603 chip size
Resistance values from 0.005Ω to 0.1Ω
Temperature range options of −55°C to +155°C / +175°C
Tolerance of ±1% or ±2%
Power rating of 0.5W
Certified AEC-Q200 compliant

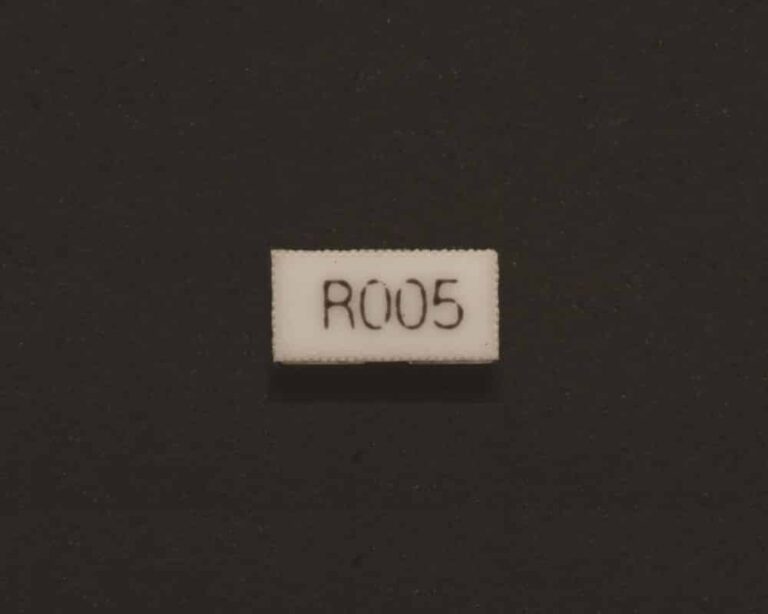

Susumu KRL1632 Series

Current sensing surface-mount chip resistor
Short sided terminal design with an 1206 chip size
Resistance values from 0.005Ω to 0.5Ω
Temperature range options of −55°C to +155°C / +175°C
Tolerance of ±1% or ±2%
Power rating of 0.75W
Certified AEC-Q200 compliant

Susumu KRL2012 Series

Current sensing surface-mount chip resistor
Long sided terminal design with a 0805 chip size
Resistance values from 0.001Ω to 0.5Ω
Temperature range options of −55°C to +155°C / +175°C
Tolerance of ±1% or ±2%
Power rating of 1W
Certified AEC-Q200 compliant

Susumu KRL2550 Series

Current sensing surface-mount chip resistor
Short sided terminal design with an 2010 chip size
Resistance values from 0.05Ω to 0.5Ω
Temperature range options of −55°C to +155°C / +175°C
Tolerance of ±1% or ±2%
Power rating of 1.5W
Certified AEC-Q200 compliant

Susumu KRL3216 Series

Current sensing surface-mount chip resistor
Long sided terminal design with a 1206 chip size
Resistance values from 0.001Ω to 0.5Ω
Temperature range options of −55°C to +155°C / +175°C
Tolerance of ±1%, ±2% or ±5%
Power rating of 1.5W
Certified AEC-Q200 compliant

Susumu KRL3216T4 Series

Current sensing surface-mount chip resistor
4 sided terminal design with a 1206 chip size
Resistance values from 0.001Ω up to 0.5Ω
Temperature range options of −55°C to +155°C
Separated voltage terminal for precise measurement of voltage
Power rating of 1W
Certified AEC-Q200 compliant

Susumu KRL3264 Series

Current sensing surface-mount chip resistor
Short sided terminal design with an 2512 chip size
Resistance values from 0.005Ω to 1Ω
Temperature range options of −55°C to +155°C / +175°C
Tolerance of ±1% or ±2%
Power rating of 3W
Certified AEC-Q200 compliant

Susumu KRL50110 Series

Current sensing surface-mount chip resistor
Short sided terminal design with an 4320 chip size
Resistance values from 0.005Ω to 1Ω
Temperature range options of −55°C to +155°C / +175°C
Tolerance of ±1% or ±2%
Power rating of 5W
Certified AEC-Q200 compliant

Susumu KRL5025 Series

Current sensing surface-mount chip resistor
Long sided terminal design with a 2010 chip size
Resistance values from 0.001Ω up to 0.5Ω
Temperature range options of −55°C to +155°C / +175°C
Tolerance of ±1% or ±2%
Power rating of 2W
Certified AEC-Q200 compliant

Susumu KRL6432 Series

Current sensing surface-mount chip resistor
Long sided terminal design with a 2512 chip size
Resistance values from 0.001Ω up to 0.5Ω
Temperature range options of −55°C to +155°C / +175°C
Tolerance of ±1% or ±2%
Power rating of 3W
Certified AEC-Q200 compliant
