Isabellenhütte Powder Metallurgy Information

0.004Ω series

Isabellenhütte BVB Series

Current sensing resistor
2725 package size
Resistance range from 0.0002Ω to 0.005Ω
Tolerances of ±1% and ±5%
TCR of <±20ppm/°C or <±50ppm/°C
Power rating 12W (at 70°C)
Temperature range from -65°C to +170°C

Isabellenhütte BVS Series

Current sensing resistor
Surface-mount 3920 chip size
Resistance range from 0.0002Ω to 0.003Ω
Tolerances of ±1.0% and ±5.0%
TCR value from ±50 ppm/°C
Power rating up to 12W (at 70°C)
Temperature range from -65°C to +170°C

Isabellenhütte BVT Series

Current sensing resistor
Surface-mount 2512 chip size
Resistance range from 0.0003Ω to 0.0068Ω
Tolerances of ±1.0% and ±5.0%
TCR from ±50 ppm/°C
Power rating up to 6W at +70°C
Temperature range from -65°C to +170°C

Isabellenhütte FMK Series

Current sensing resistor
Surface-mount 1206 chip size
Resistance range from 0.0015Ω to 0.006Ω
Tolerances of ±1% and ±5%
TCR of <50 ppm/°C
Power rating up to 4W at 70°C
Temperature range from -65°C to +170°C

Isabellenhütte FMP Series

Current sensing resistor
Surface-mount 2010 chip size
Resistance range from 0.0015Ω to 0.006Ω
Tolerances of ±1.0% and ±5.0%
TCR of <50 ppm/K
Power rating up to 4W (at 70°C)
Temperature range from -65°C to +170°C

Isabellenhütte SMT Series

Current sensing precision resistor
2-terminal surface-mount 2817 chip size
Resistance range from 0.004Ω to 4.7Ω
Tolerance range from ±0.5% to ±5%
TCR from <±50 ppm/°C
Power rating of 5W (at +105°C)
Temperature range -65°C to +170°C

Isabellenhütte SMT-PW Series

Space approved current sensing precision resistor
2-terminal surface-mount design in a 2817 chip size
Resistance range from 0.004Ω to 2Ω
Tolerances of ±0.5% and ±1%
TCR from <±50ppm/°C
Power rating of 3W (at +130°C)
Temperature range from -55°C to +170°C

Susumu KRL11050 Series

Current sensing surface-mount chip resistor
Long sided terminal design with a 4320 chip size
Resistance values from 0.001Ω up to 0.5Ω
Temperature range options of −55°C to +155°C / +175°C
Tolerance of ±1% or ±2%
Power rating of 6W
Certified AEC-Q200 compliant

Susumu KRL11050T4 Series

Current sensing surface-mount chip resistor
4 sided terminal design with a 4320 chip size
Resistance values from 0.001Ω up to 0.5Ω
Temperature range options of −55°C to +155°C / +175°C
Separated voltage terminal for precise measurement of voltage
Power rating of 5W
Certified AEC-Q200 compliant

Susumu KRL15075 Series

Current sensing surface-mount chip resistor
Long sided terminal design with a 5930 chip size
Resistance values from 0.001Ω up to 0.5Ω
Temperature range options of −55°C to +155°C / +175°C
Tolerance of ±1% or ±2%
Power rating of 10W
Certified AEC-Q200 compliant

Susumu KRL2012 Series

Current sensing surface-mount chip resistor
Long sided terminal design with a 0805 chip size
Resistance values from 0.001Ω to 0.5Ω
Temperature range options of −55°C to +155°C / +175°C
Tolerance of ±1% or ±2%
Power rating of 1W
Certified AEC-Q200 compliant

Susumu KRL3216 Series

Current sensing surface-mount chip resistor
Long sided terminal design with a 1206 chip size
Resistance values from 0.001Ω to 0.5Ω
Temperature range options of −55°C to +155°C / +175°C
Tolerance of ±1%, ±2% or ±5%
Power rating of 1.5W
Certified AEC-Q200 compliant

Susumu KRL3216T4 Series

Current sensing surface-mount chip resistor
4 sided terminal design with a 1206 chip size
Resistance values from 0.001Ω up to 0.5Ω
Temperature range options of −55°C to +155°C
Separated voltage terminal for precise measurement of voltage
Power rating of 1W
Certified AEC-Q200 compliant

Susumu KRL5025 Series

Current sensing surface-mount chip resistor
Long sided terminal design with a 2010 chip size
Resistance values from 0.001Ω up to 0.5Ω
Temperature range options of −55°C to +155°C / +175°C
Tolerance of ±1% or ±2%
Power rating of 2W
Certified AEC-Q200 compliant

Susumu KRL6432 Series

Current sensing surface-mount chip resistor
Long sided terminal design with a 2512 chip size
Resistance values from 0.001Ω up to 0.5Ω
Temperature range options of −55°C to +155°C / +175°C
Tolerance of ±1% or ±2%
Power rating of 3W
Certified AEC-Q200 compliant

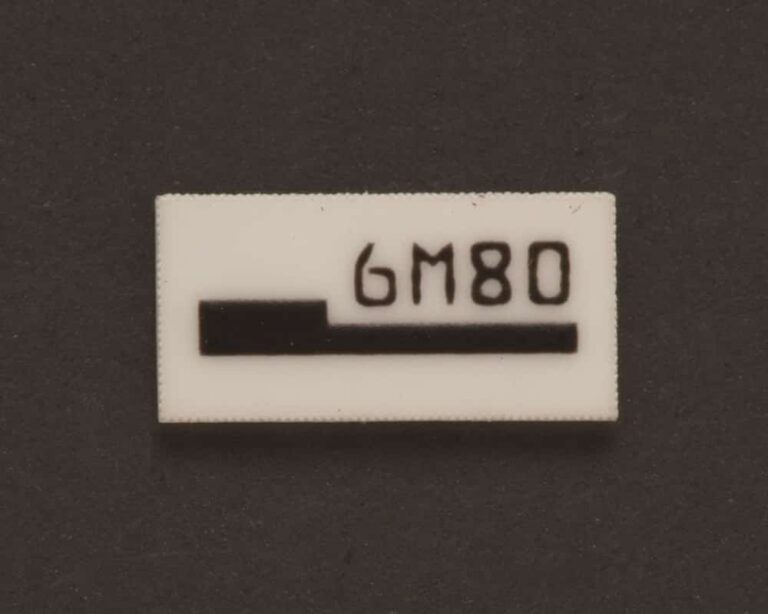

Susumu KRL6432T4 Series

Current sensing surface-mount chip resistor
4 sided terminal design with a 2512 chip size
Resistance values from 0.001Ω up to 0.5Ω
Temperature range options of −55°C to +155°C / +175°C
Separated voltage terminal for precise measurement of voltage
Power rating of 2W
Certified AEC-Q200 compliant
