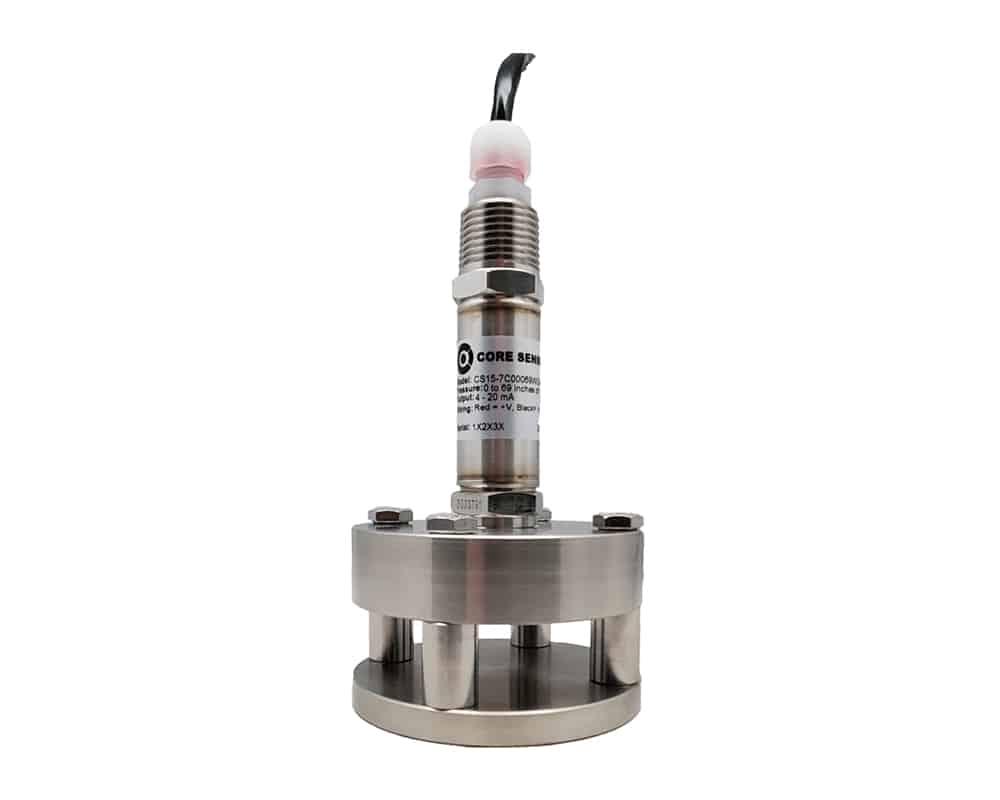

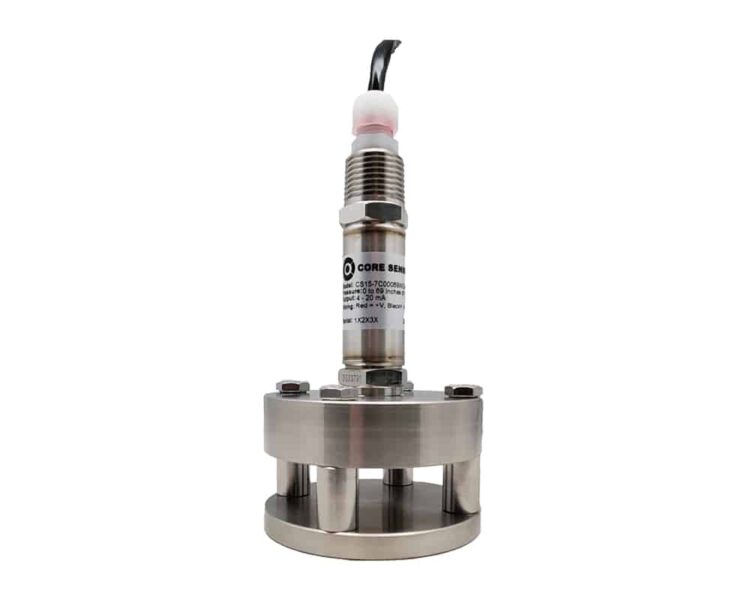

The CS15 non-clogging submersible pressure transducer is designed for liquid level measurement in turbulent tanks and tanks with viscous medias such as wastewater lift stations. A Hastelloy C276 diaphragm, stainless steel construction and an ETFE cable jacket allow for installation in a wide variety of liquids. The heavy-duty steel cage anchors the sensor at the bottom of the tank to ensure accurate level readings as well as acting as a barrier between solids in the tank and the flush diaphragm of the sensor. A vent tube runs the length of the cable and quickly equalizes the barometric pressure within the sensor body. The CS15 is available in various output signals including 4-20mA for long-distance transmissions and voltage outputs for low power, low current consumption applications.
The CS15 Non-Clogging Submersible Pressure Transducer was carefully engineered to withstand some of the toughest environments. With a thickness of 1 to 1.5 mils, the diaphragm is the thinnest component of the transducer. To help protect this critical component, Hastelloy* C276 (UNS N10276) is the standard diaphragm material. This material is a super nickel-molybdenum-chromium alloy offering excellent corrosion resistance, prolonging the life of the transducer. 300 series stainless steel (316L and 304) makes up the remaining metallic construction including the heavy-duty steel cage, housing (case), and 1/2″ MNPT conduit fitting. Precision TIG welds along with a Kynar strain relief and Viton seals prevent liquids from entering the sensor, resulting in an IP68 rating.
- Non-Clogging submersible pressure transducer
- Pressure ranges from 2 PSI to 50 PSI
- Flush diaphragm prevents clogging
- Hastelloy C276 diaphragm material
- IP68 rated
- Operating temperature of -40 to +85°C
- Compensated temperatures from 0 to +55°C
- Accuracy down to ≤±0.25% BFSL / ≤ ± 0.5% BFSL (2 PSI)
- Stability (1 year) of ≤ ±0.25% of FS
- Pressure cycles of 50 million
- Overpressure of 2x minimum
- Burst pressure of 5x or 500 PSI (whichever is less)
- Electrical output options of 4-20mA, 1-5V, 0.5-2.5V non-ratiometric or 0.5-4.5V ratiometric
Typical applications for the CS15 submersible pressure transducer series include:
- Wastewater lift stations
- Liquid level measurement
- Tanks with viscous media
- Turbulent tanks
Performance, Thermal, Environmental & Physical Specifications Table
| Attribute | Value |
|---|---|
| Accuracy at 25°C * | ≤±0.25% BFSL ≤±0.5% BFSL (2 PSI) |
| Stability (1 Year) | ≤±0.25% of FS |
| Pressure Cycles | 50 million |
| Overpressure | 2x minimum |
| Burst Pressure | 5x or 250 PSI (whichever is less) |
| Operating Temperature | -40°C to +85°C |
| Compensated Temperature | 0°C to +55°C |
| Storage Temperature | -40°C to +125°C |
| TC Zero | ≤±1% of FS ≤±2% of FS (2 PSI) |
| TC Span | ≤±1% of FS ≤±2% of FS (2 PSI) |
| EMI / RFI Protection | Yes |
| IP Rating | IP68 minimum |
| Vibration | 10g, 20 to 2000Hz |
| Shock | 100g, 11msec, 1/2 sine |
| Weight (excluding cable) | ~3.5lbs |

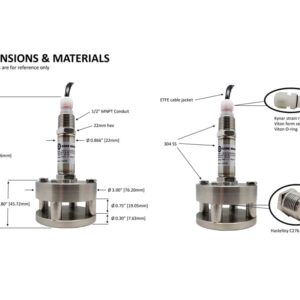

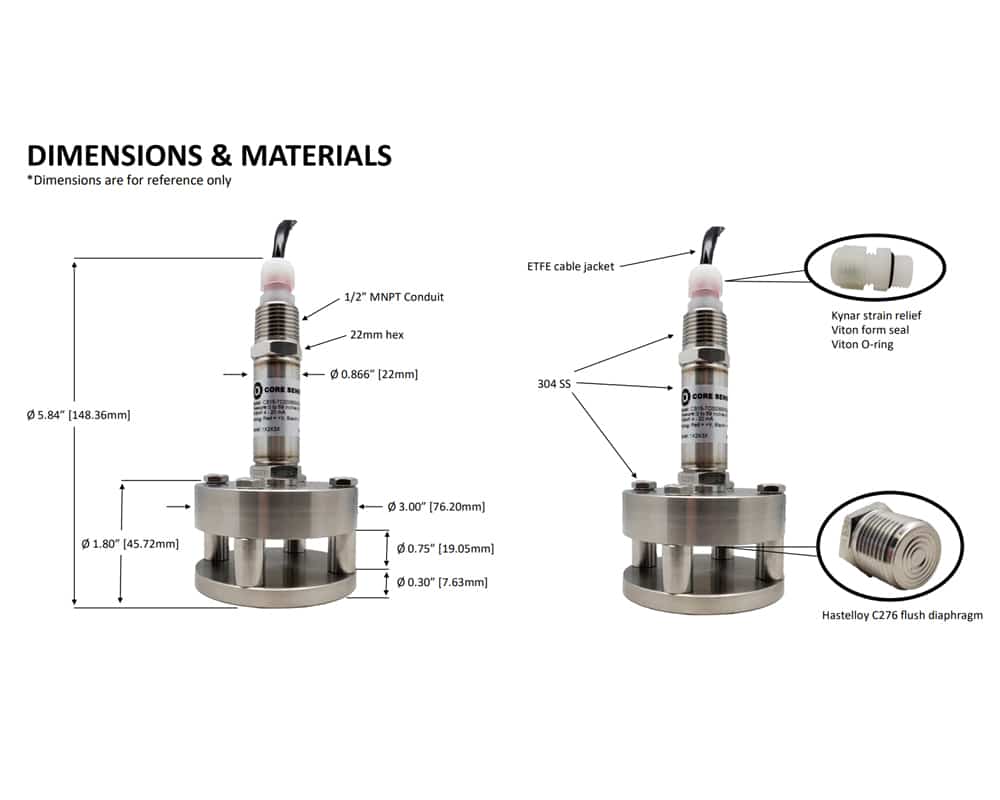

| Wetted material | See Dimensions / Material image |
| Cable conductors | 22 AWG |
| Cable pull strength | 150lbs |
* Accuracy includes non-linearity, hysteresis and non-repeatability
Electrical Specifications (Current)
| Attribute | Value |
|---|---|
| Outputs | 4 to 20mA |
| Excitation | 10 to 28VDC |
| Current Consumption | 20mA (typical) |
| Output Load | 0 to 800Ω at 10 to 28VDC |
| Frequency Response | ~250Hz (minimum) |
| Zero Offset (of FS) | ≤±0.5% (typical) ±1% maximum |
| Span Tolerance (of FS) | ≤±0.5% (typical) ±1% maximum |
Electrical Specifications (Voltage)
| Attribute | Value |
|---|---|
| Outputs | 1 to 5V |
| Excitation | 10 to 28VDC |
| Current Consumption | <10mA |
| Output Load | 5kΩ (minimum) |
| Frequency Response | ~1kHz (minimum) |
| Zero Offset (of FS) | ≤±0.5% (typical) ±1% maximum |
| Span Tolerance (of FS) | ≤±0.5% (typical) ±1% maximum |
Electrical Specifications (Ratiometric Voltage)
| Attribute | Value |
|---|---|
| Outputs | 0.5 to 4.5V ratiometric |
| Excitation | 5VDC ±0.5V |
| Current Consumption | <10mA |
| Output Load | 5kΩ (minimum) |
| Frequency Response | ~1kHz (minimum) |
| Zero Offset (of FS) | ≤±0.5% (typical) ±1% maximum |
| Span Tolerance (of FS) | ≤±0.5% (typical) ±1% maximum |
Electrical Specifications (Low Power Voltage)
| Attribute | Value |
|---|---|
| Outputs | 0.5 to 2.5V non-ratiometric |
| Excitation | 3 to 5VDC unregulated |
| Current Consumption | ≤3mA |
| Output Load | 5kΩ (minimum) |
| Frequency Response | ~1kHz (minimum) |
| Zero Offset (of FS) | ≤±0.5% (typical) ±1% maximum |
| Span Tolerance (of FS) | ≤±0.5% (typical) ±1% maximum |
Core Sensors design and manufacture high quality sensors for measuring pressure and temperature properties for industrial and hazardous applications worldwide. Core offers solutions for industrial, submersible, differential and hazardous applications in both standard and custom packaging. In-house design and manufacturing capabilities along with strategic manufacturing partners allows Core to create solutions to some of the most complex sensor requirements. Please visit https://core-sensors.comfor more information.
