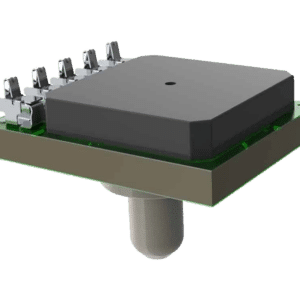

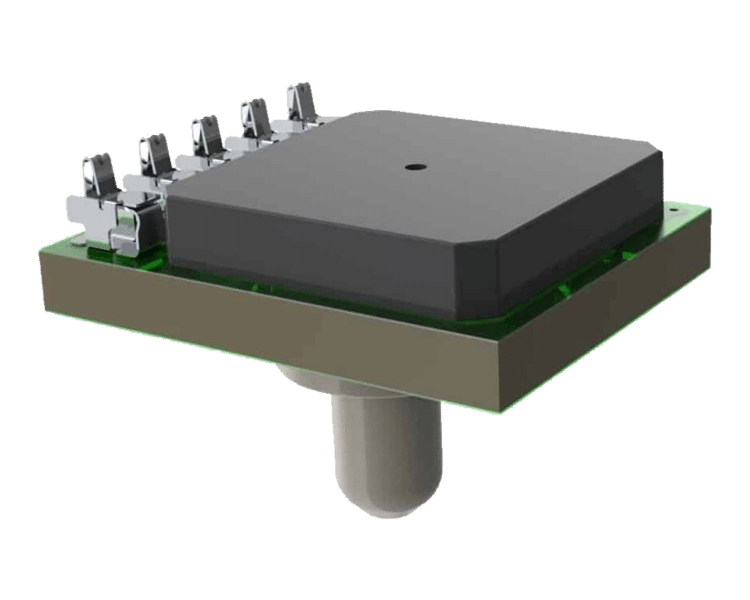

Merit Sensor TRVF Series

Product Features

  • Fully compensated pressure sensor.
  • Wetted materials including silicon, glass, and ceramic enhances compatibility with harsh media.
  • Compact and lightweight, weighing approximately 1.35 grams.
  • Designed to measure pressure in air, gases, and liquids.
  • Pressure Range available from 1 to 300 psi (absolute or gauge).
  • Operating temperature range between -40ยฐC to 150ยฐC.

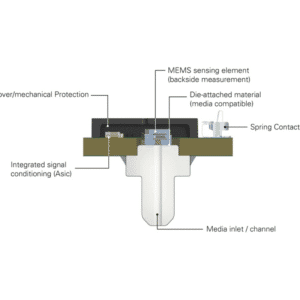

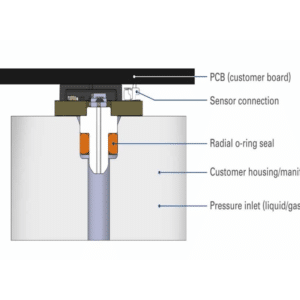

The TRVF Series is a fully compensated harsh-media, digital I2C and analog output, pressure-sensor package. It is designed to handle todayโ€™s toughest pressure-sensing environments with a temperature range of -40ยฐC and 150ยฐC. The unique pressure port isolates onboard electronics, the three wetted materials (silicon, glass, and ceramic) enable the TRVF Series to withstand a variety of harsh media.

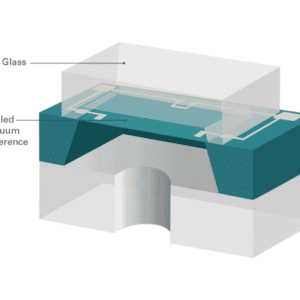

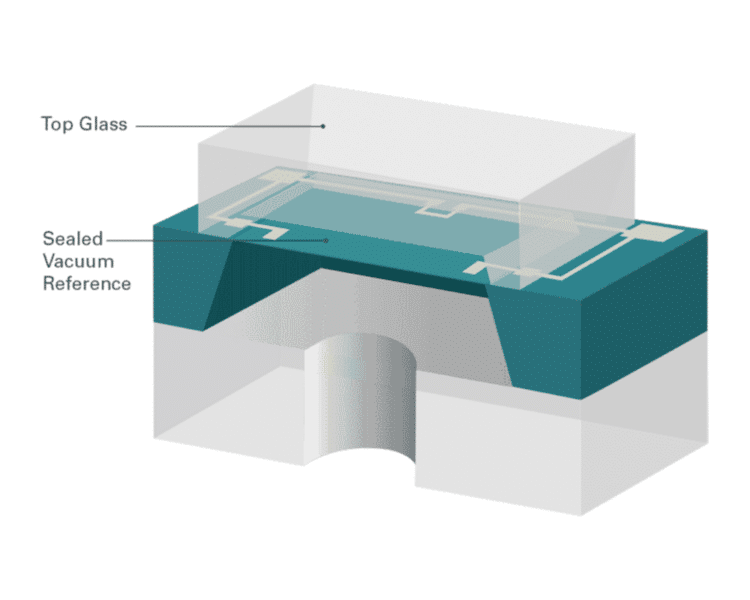

The TRVF design isolates the the FR-4 high TG substrate mechanical stress from the MEMs die avoiding possible offset shifts caused during the manufacturing process. The spring contacts make the customersโ€™ assembly process easier and faster.

  • Pressure Range: 1 to 300 psi / 0.07 to 20.7bar / 7 to 2067 kPa
  • Temperature Range: -40ยฐC to 150ยฐC
  • Pressure Type: Absolute or gauge
  • Electrical Connection: Spring Contacts
  • Output: Digital I2C and Analog Ratiometric (0.5V โ€“ 4.5V)
  • Electrical Protection: output short circuit and supply high voltage / reverse polarity up to 40V
  • Accuracy: ยฑ2.5% full scale, with high-accuracy versions offering ยฑ1.0% full scale, catering to precision-sensitive applications.

Typical applications for the Merit SensorTM TRVFย series include:

  • Industrial: Pneumatic systems, water levels, water pressure, air-conditioning and other refrigerant systems.
  • Automotive: Pressure of transmission fluid, fuel systems, oil systems, etc.
  • Medical: Equipment for diagnosis and analysis.



Merit Sensor Systems, Inc. partners with Rhopoint and itโ€™s customers to design, fabricate, assemble and package reliable, cost-effective piezoresistive pressure sensor solutions for automotive, medical, industrial, aviation, defense and consumer applications. Please visitย https://meritsensor.com/ย for more information.

Specifications

Weight 0.135 kg
Series / Model

Pressure Range

, ,

Pressure Type

,

Version

Ceramic Button

Termination / Connection

Spring Contacts

Accuracy

1% FS (high accuracy), 2.5% FS (standard)

Packaging

Tape & Reel, Tray

Output

0.5 to 4.5V ratiometric, Digital I2C

Temperature Range (ยฐC)

-40 to +150ยฐC

Ordering Info

Below is the model number configuration for the TRVF series from Merit Sensor.
Ordering example: TRVF-0015A-0010
TRVF-XXXXX-XXXX

Series / Model (TRVF)

TRVF
TRVF

Pressure Range (XXXX)

0015ย  ย  15 psi
0100ย  ย  100 psi
0300ย  ย  300 psi

Pressure Type (X)

Aย  ย  Absolute
Gย  ย  Gage

Version (X)

0
Ceramic Button

Termination / Connection (X)

0
Spring Contacts

Accuracy (X)

1ย  ย  2.5% FS
(standard)
2ย  ย  1% FS (high
accuracy

Packaging (X)

0
Tape & Reel
1
Tray

Product Variations

SKUSeries / ModelPressure RangePressure TypeVersionTermination / ConnectionAccuracyPackaging
TRVF-0015A-0020TRVF15 psiAbsoluteCeramic ButtonSpring Contacts1% FS (high accuracy)Tape & Reel
TRVF-0015A-0021TRVF15 psiAbsoluteCeramic ButtonSpring Contacts1% FS (high accuracy)Tray
TRVF-0015A-0010TRVF15 psiAbsoluteCeramic ButtonSpring Contacts2.5% FS (standard)Tape & Reel
TRVF-0015A-0011TRVF15 psiAbsoluteCeramic ButtonSpring Contacts2.5% FS (standard)Tray
TRVF-0015G-0020TRVF15 psiGaugeCeramic ButtonSpring Contacts1% FS (high accuracy)Tape & Reel
TRVF-0015G-0021TRVF15 psiGaugeCeramic ButtonSpring Contacts1% FS (high accuracy)Tray
TRVF-0015G-0010TRVF15 psiGaugeCeramic ButtonSpring Contacts2.5% FS (standard)Tape & Reel
TRVF-0015G-0011TRVF15 psiGaugeCeramic ButtonSpring Contacts2.5% FS (standard)Tray
TRVF-0100A-0020TRVF100 psiAbsoluteCeramic ButtonSpring Contacts1% FS (high accuracy)Tape & Reel
TRVF-0100A-0021TRVF100 psiAbsoluteCeramic ButtonSpring Contacts1% FS (high accuracy)Tray
TRVF-0100A-0010TRVF100 psiAbsoluteCeramic ButtonSpring Contacts2.5% FS (standard)Tape & Reel
TRVF-0100A-0011TRVF100 psiAbsoluteCeramic ButtonSpring Contacts2.5% FS (standard)Tray
TRVF-0100G-0020TRVF100 psiGaugeCeramic ButtonSpring Contacts1% FS (high accuracy)Tape & Reel
TRVF-0100G-0021TRVF100 psiGaugeCeramic ButtonSpring Contacts1% FS (high accuracy)Tray
TRVF-0100G-0010TRVF100 psiGaugeCeramic ButtonSpring Contacts2.5% FS (standard)Tape & Reel
TRVF-0100G-0011TRVF100 psiGaugeCeramic ButtonSpring Contacts2.5% FS (standard)Tray
TRVF-0300A-0020TRVF300 psiAbsoluteCeramic ButtonSpring Contacts1% FS (high accuracy)Tape & Reel
TRVF-0300A-0021TRVF300 psiAbsoluteCeramic ButtonSpring Contacts1% FS (high accuracy)Tray
TRVF-0300A-0010TRVF300 psiAbsoluteCeramic ButtonSpring Contacts2.5% FS (standard)Tape & Reel
TRVF-0300A-0011TRVF300 psiAbsoluteCeramic ButtonSpring Contacts2.5% FS (standard)Tray
TRVF-0300G-0020TRVF300 psiGaugeCeramic ButtonSpring Contacts1% FS (high accuracy)Tape & Reel
TRVF-0300G-0021TRVF300 psiGaugeCeramic ButtonSpring Contacts1% FS (high accuracy)Tray
TRVF-0300G-0010TRVF300 psiGaugeCeramic ButtonSpring Contacts2.5% FS (standard)Tape & Reel
TRVF-0300G-0011TRVF300 psiGaugeCeramic ButtonSpring Contacts2.5% FS (standard)Tray
