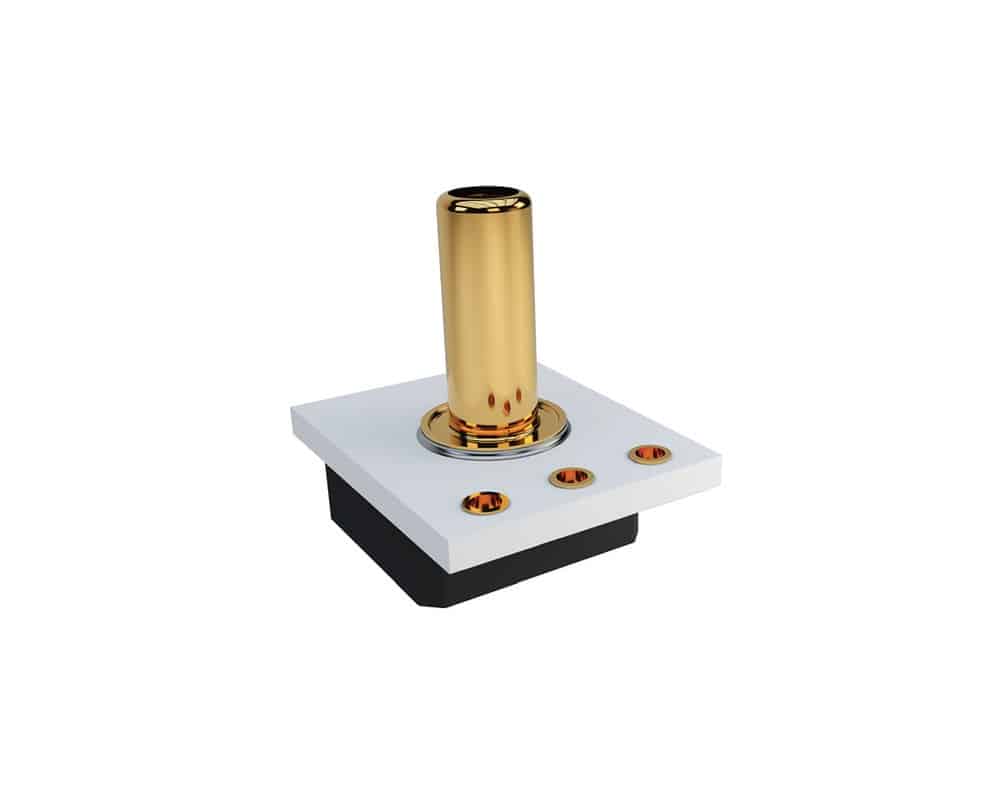

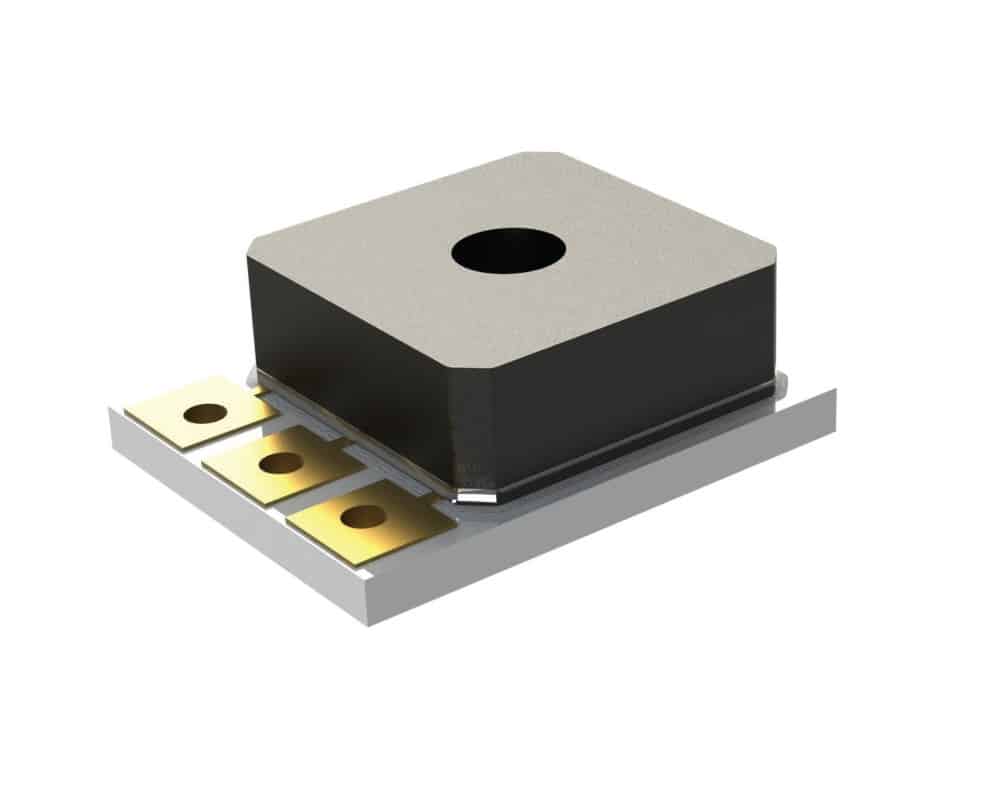

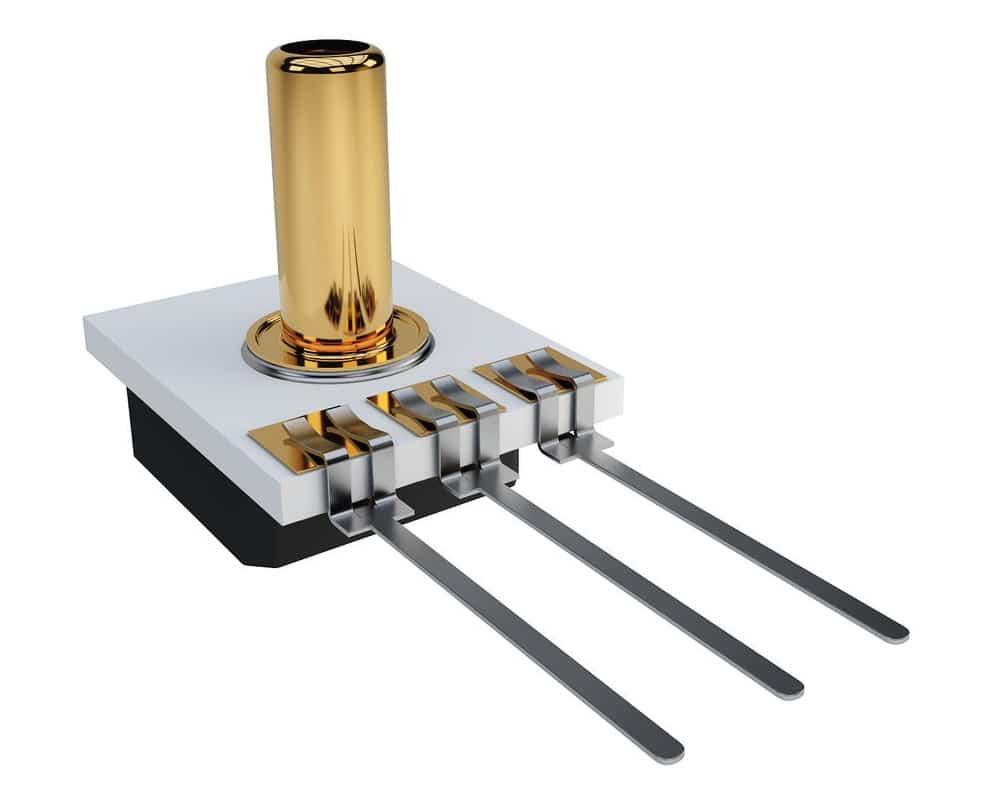

The TR pcb mountable pressure transducer series from Merit SensorTM is a rugged, direct-media pressure monitoring solution designed for todayโs toughest pressure sensing environments. This pressure transducer series offers a pressure range from 15psi to 500psi with a fully compensated amplified output. The TR series from Merit SensorTM is designed for air, liquid and gas harsh media compatibility, over a broad temperature range of โ40ยฐC to +150ยฐC, with an accuracy of ยฑ2.5%. The design includes a 4.7kฮฉ circuit protection pull-up resistor, operates on a single 5VDC supply, and no external components required for operation. The TR series combines Merit Sensor’s Systems Sentium process harsh media MEMS piezoresistive die with state-of-the-art pressure sensor ASIC signal management.
Typical applications for the Merit SensorTM TR series include:
Please see below the specifications for the Merit TR series:

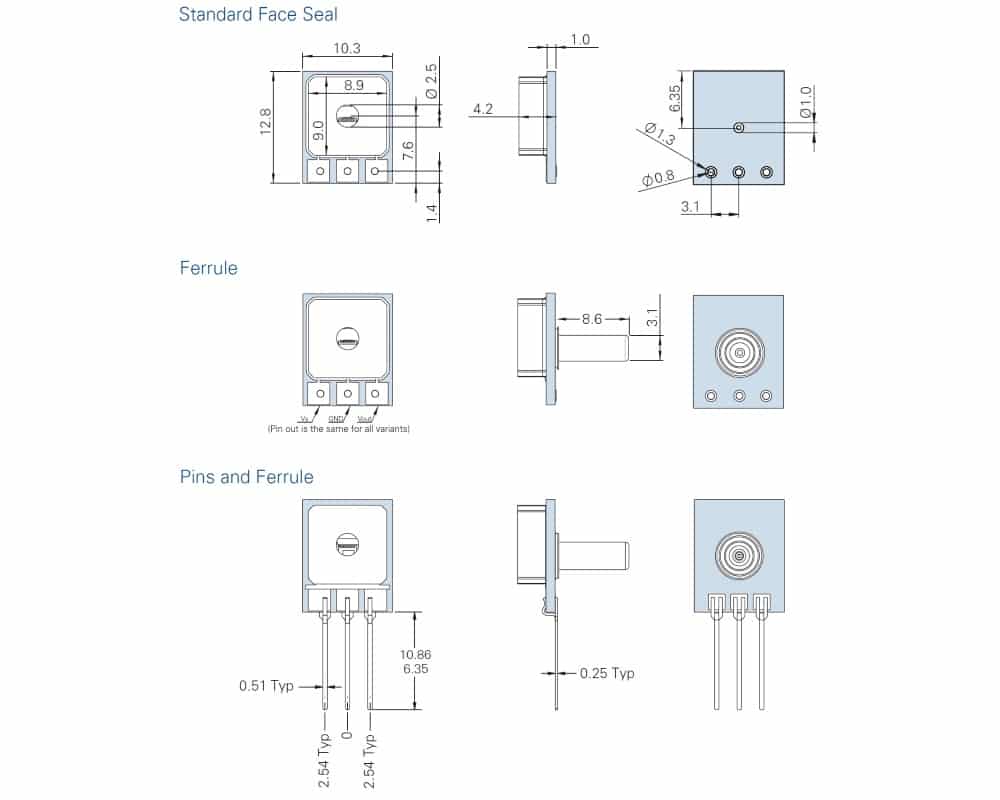

| Weight | 0.00000 kg |
|---|---|
| Dimensions | 4.20 x 10.30 x 12.80mm |
| Accuracy | ยฑ2.5% |
| Model / Part Number | Customised Product, TR1-0015G-001, TR1-0030G-001, TR1-0100G-001, TR1-0300A-001, TR1-0300G-001, TR1-0300G-101 |
| Output | 2.5mA |
| Package / Size | |
| Pressure Range | |
| Pressure Type | |
| Series / Model | |
| Temperature Range (ยฐC) | -40 to +150ยฐC |
| Termination / Connection | No pins (No holes), No pins (With holes), Pins (No holes) |
| Product Type |
| SKU | Model / Part Number | Package / Size | Pressure Range | Pressure Type | Termination / Connection |
|---|---|---|---|---|---|
| Merit Sensor TR Series | Customised Product | Face Seal | 100 psi | Absolute | No pins (No holes) |
| Merit Sensor TR Series | Customised Product | Face Seal | 100 psi | Absolute | No pins (With holes) |
| Merit Sensor TR Series | Customised Product | Face Seal | 100 psi | Absolute | Pins (No holes) |
| Merit Sensor TR Series | Customised Product | Ferrule | 100 psi | Absolute | No pins (No holes) |
| Merit Sensor TR Series | Customised Product | Ferrule | 100 psi | Absolute | No pins (With holes) |
| Merit Sensor TR Series | Customised Product | Ferrule | 100 psi | Absolute | Pins (No holes) |
| Merit Sensor TR Series | Customised Product | Face Seal | 100 psi | Gauge | No pins (No holes) |
| Merit Sensor TR Series | Customised Product | Face Seal | 100 psi | Gauge | No pins (With holes) |
| Merit Sensor TR Series | Customised Product | Face Seal | 100 psi | Gauge | Pins (No holes) |
| Merit Sensor TR Series | Customised Product | Ferrule | 100 psi | Gauge | No pins (No holes) |
| Merit Sensor TR Series | Customised Product | Ferrule | 100 psi | Gauge | No pins (With holes) |
| Merit Sensor TR Series | Customised Product | Ferrule | 100 psi | Gauge | Pins (No holes) |
| Merit Sensor TR Series | Customised Product | Face Seal | 15 psi | Absolute | No pins (No holes) |
| Merit Sensor TR Series | Customised Product | Face Seal | 15 psi | Absolute | No pins (With holes) |
| Merit Sensor TR Series | Customised Product | Face Seal | 15 psi | Absolute | Pins (No holes) |
| Merit Sensor TR Series | Customised Product | Ferrule | 15 psi | Absolute | No pins (No holes) |
| Merit Sensor TR Series | Customised Product | Ferrule | 15 psi | Absolute | No pins (With holes) |
| Merit Sensor TR Series | Customised Product | Ferrule | 15 psi | Absolute | Pins (No holes) |
| Merit Sensor TR Series | Customised Product | Face Seal | 15 psi | Gauge | No pins (No holes) |
| Merit Sensor TR Series | Customised Product | Face Seal | 15 psi | Gauge | No pins (With holes) |
| Merit Sensor TR Series | Customised Product | Face Seal | 15 psi | Gauge | Pins (No holes) |
| Merit Sensor TR Series | Customised Product | Ferrule | 15 psi | Gauge | No pins (No holes) |
| Merit Sensor TR Series | Customised Product | Ferrule | 15 psi | Gauge | No pins (With holes) |
| Merit Sensor TR Series | Customised Product | Ferrule | 15 psi | Gauge | Pins (No holes) |
| Merit Sensor TR Series | Customised Product | Face Seal | 30 psi | Absolute | No pins (No holes) |
| Merit Sensor TR Series | Customised Product | Face Seal | 30 psi | Absolute | No pins (With holes) |
| Merit Sensor TR Series | Customised Product | Face Seal | 30 psi | Absolute | Pins (No holes) |
| Merit Sensor TR Series | Customised Product | Ferrule | 30 psi | Absolute | No pins (No holes) |
| Merit Sensor TR Series | Customised Product | Ferrule | 30 psi | Absolute | No pins (With holes) |
| Merit Sensor TR Series | Customised Product | Ferrule | 30 psi | Absolute | Pins (No holes) |
| Merit Sensor TR Series | Customised Product | Face Seal | 30 psi | Gauge | No pins (No holes) |
| Merit Sensor TR Series | Customised Product | Face Seal | 30 psi | Gauge | No pins (With holes) |
| Merit Sensor TR Series | Customised Product | Face Seal | 30 psi | Gauge | Pins (No holes) |
| Merit Sensor TR Series | Customised Product | Ferrule | 30 psi | Gauge | No pins (No holes) |
| Merit Sensor TR Series | Customised Product | Ferrule | 30 psi | Gauge | No pins (With holes) |
| Merit Sensor TR Series | Customised Product | Ferrule | 30 psi | Gauge | Pins (No holes) |
| Merit Sensor TR Series | Customised Product | Face Seal | 300 psi | Absolute | No pins (No holes) |
| Merit Sensor TR Series | Customised Product | Face Seal | 300 psi | Absolute | No pins (With holes) |
| Merit Sensor TR Series | Customised Product | Face Seal | 300 psi | Absolute | Pins (No holes) |
| Merit Sensor TR Series | Customised Product | Ferrule | 300 psi | Absolute | No pins (No holes) |
| Merit Sensor TR Series | Customised Product | Ferrule | 300 psi | Absolute | No pins (With holes) |
| Merit Sensor TR Series | Customised Product | Ferrule | 300 psi | Absolute | Pins (No holes) |
| Merit Sensor TR Series | Customised Product | Face Seal | 300 psi | Gauge | No pins (No holes) |
| Merit Sensor TR Series | Customised Product | Face Seal | 300 psi | Gauge | No pins (With holes) |
| Merit Sensor TR Series | Customised Product | Face Seal | 300 psi | Gauge | Pins (No holes) |
| Merit Sensor TR Series | Customised Product | Ferrule | 300 psi | Gauge | No pins (No holes) |
| Merit Sensor TR Series | Customised Product | Ferrule | 300 psi | Gauge | No pins (With holes) |
| Merit Sensor TR Series | Customised Product | Ferrule | 300 psi | Gauge | Pins (No holes) |
| Merit Sensor TR Series | Customised Product | Face Seal | 500 psi | Absolute | No pins (No holes) |
| Merit Sensor TR Series | Customised Product | Face Seal | 500 psi | Absolute | No pins (With holes) |
| Merit Sensor TR Series | Customised Product | Face Seal | 500 psi | Absolute | Pins (No holes) |
| Merit Sensor TR Series | Customised Product | Ferrule | 500 psi | Absolute | No pins (No holes) |
| Merit Sensor TR Series | Customised Product | Ferrule | 500 psi | Absolute | No pins (With holes) |
| Merit Sensor TR Series | Customised Product | Ferrule | 500 psi | Absolute | Pins (No holes) |
| Merit Sensor TR Series | Customised Product | Face Seal | 500 psi | Gauge | No pins (No holes) |
| Merit Sensor TR Series | Customised Product | Face Seal | 500 psi | Gauge | No pins (With holes) |
| Merit Sensor TR Series | Customised Product | Face Seal | 500 psi | Gauge | Pins (No holes) |
| Merit Sensor TR Series | Customised Product | Ferrule | 500 psi | Gauge | No pins (No holes) |
| Merit Sensor TR Series | Customised Product | Ferrule | 500 psi | Gauge | No pins (With holes) |
| Merit Sensor TR Series | Customised Product | Ferrule | 500 psi | Gauge | Pins (No holes) |
| Merit Sensor TR Series | TR1-0015G-001 | Face Seal | 15 psi | Gauge | No pins (With holes) |
| Merit Sensor TR Series | TR1-0030G-001 | Face Seal | 30 psi | Gauge | No pins (With holes) |
| Merit Sensor TR Series | TR1-0100G-001 | Face Seal | 100 psi | Gauge | No pins (With holes) |
| Merit Sensor TR Series | TR1-0300A-001 | Face Seal | 300 psi | Absolute | No pins (With holes) |
| Merit Sensor TR Series | TR1-0300G-001 | Face Seal | 300 psi | Gauge | No pins (With holes) |
| Merit Sensor TR Series | TR1-0300G-101 | Ferrule | 300 psi | Gauge | No pins (With holes) |
Now stocking the TR1-0300A-001, TR1-0015G-001, TR1-0030G-001, TR1-0100G-001, TR1-0300G-001 and TR1-0300G-101 pressure sensors.
We currently stock a selection of the most popular TR series sensors here at Rhopoint. These are available for selection using the above selection tool where we can arrange a quotation for you ASAP. The current sensors we stock are the following:
Below is an example of the part number break down for the TR series:
We are pleased to provide you with a range of additional content including product datasheets and application notes for your reference. Please see below for the latest content available:
