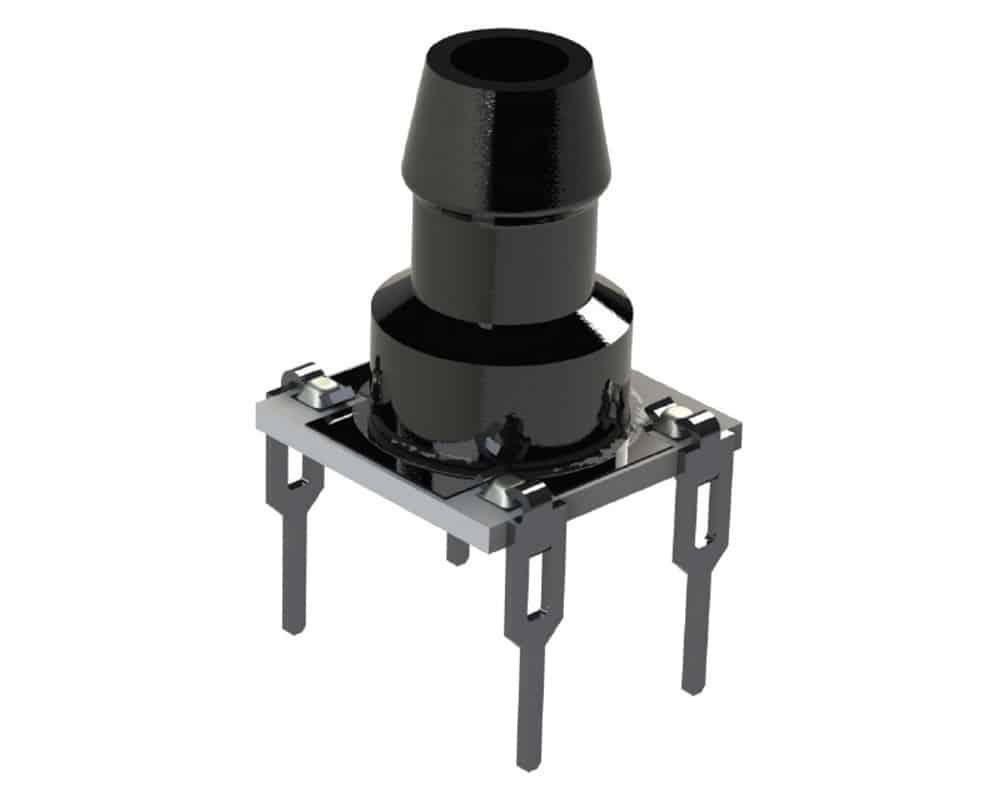

Merit Sensor PMD Series

Product Features

Through-hole low to medium pressure monitoring sensor
Suitable for clean, dry air and non corrosive gases
Merit Sensor is a leader in piezoresistive pressure sensing and partners with clients to create high performing solutions for a variety of applications and industries.

Coating

Package / Size

Pressure Range

Pressure Type

Clear

Custom resistance value (Ω) *
Custom AT Range (AT) *
Custom Capacity (lbs) *
Custom Pressure (Bar/PSI) *
Custom Resistance Value Element 1 (Ω) *
Custom Resistance Value Element 2 (Ω) *
Custom lead length (mm) *
Custom lead length (inches) *

Quantity

Any questions, contact us?

Why buy from Rhopoint?

Engineering Calculators

Application Notes

The PMD through-hole low to medium pressure monitoring sensor series from Merit Sensor^TM offers a pressure range from 5psi to 50psi with an operating temperature of −40°C to +85°C and a full scale output range from 133mV to 160mv (depending on the pressure range). The PMD series from Merit Sensor^TM products incorporate a proprietary Sentium® technology, developed to provide a best-in-class operating temperature range, superior stability and is a leader in piezoresistive pressure sensing and partners with clients to create high performing solutions for a variety of applications and industries.

Through-hole low to medium pressure monitoring sensor
Pressure ranges available 5psi, 15psi, 30psi and 50psi
Absolute and gauge options available
Temperature range −40°C to +85°C
Typical full scale output (at 5V excitation) 133mV at 5psi, 150mV at 15psi, 160mV at 30psi, 133mV at 50psi
Impedance of 5kΩ (typical)
Suitable for clean, dry air and non-corrosive gases

Typical applications for the Merit Sensor^TM SMD series include:

Industrial
Calibration devices
Pressure meters

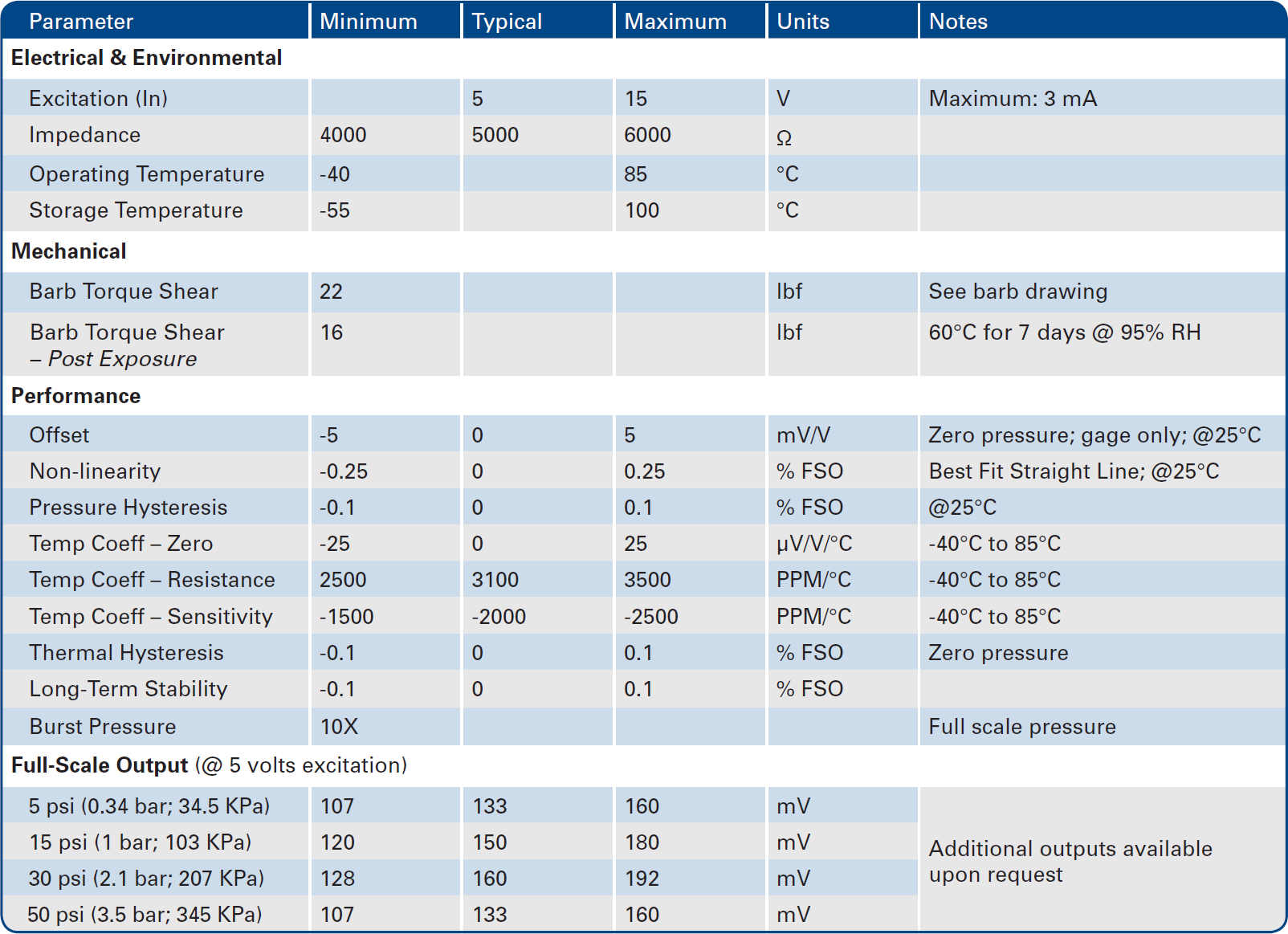

Please see below the specifications for the Merit Sensor^TM PMD series:

Merit Sensor PMD series Specifications

Specifications

Weight	0.00000 kg

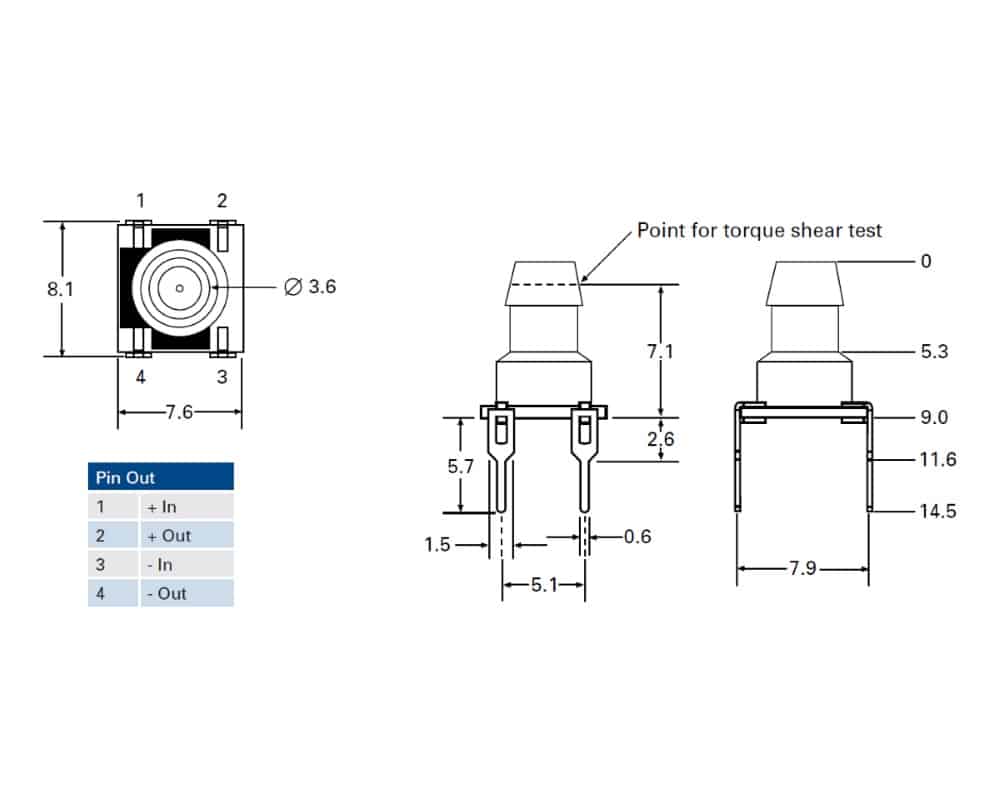

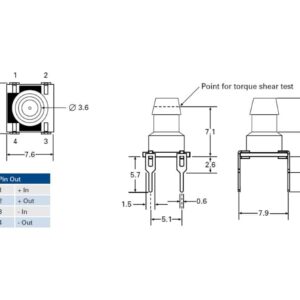

Dimensions	11.60 x 7.60 x 8.10mm
Coating	Black Silicone Gel, No Gel
Impedance	5kΩ
Output	133mV, 150mV, 160mV
Package / Size	Barb, Black Anodised Aluminium, Ceramic Chimney
Pressure Range	5 psi, 15 psi, 30 psi, 50 psi, 60 psi
Pressure Type	Absolute, Gauge
Series / Model	PMD
Temperature Range (°C)	-40 to +85°C
Product Type	Uncompensated Packages

Merit Sensor PMD Series Ordering Info

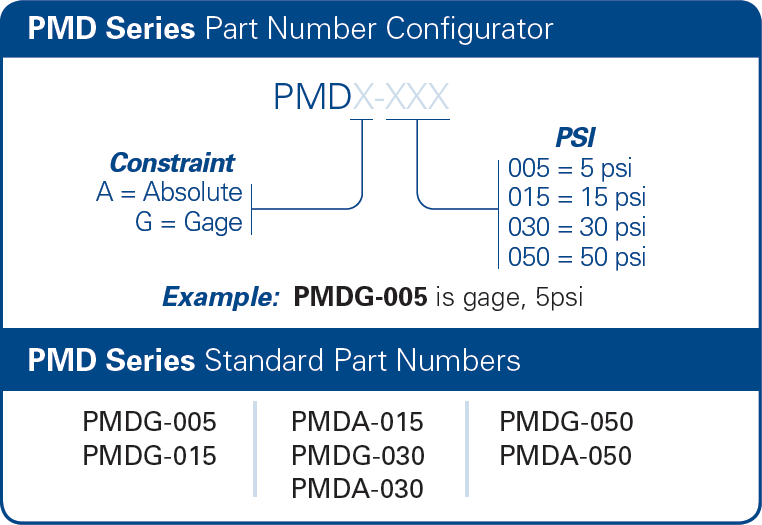

Below is an example of the part number break down for the PMD series:

bp Series Part Number Example

Product Variations

SKU	Coating	Package / Size	Pressure Range	Pressure Type
Merit Sensor PMD Series	No Gel	Ceramic Chimney	15 psi	Absolute	Request Quote
Merit Sensor PMD Series	No Gel	Ceramic Chimney	15 psi	Gauge	Request Quote
Merit Sensor PMD Series	No Gel	Ceramic Chimney	30 psi	Absolute	Request Quote
Merit Sensor PMD Series	No Gel	Ceramic Chimney	30 psi	Gauge	Request Quote
Merit Sensor PMD Series	No Gel	Ceramic Chimney	5 psi	Absolute	Request Quote
Merit Sensor PMD Series	No Gel	Ceramic Chimney	5 psi	Gauge	Request Quote
Merit Sensor PMD Series	No Gel	Ceramic Chimney	50 psi	Absolute	Request Quote
Merit Sensor PMD Series	No Gel	Ceramic Chimney	50 psi	Gauge	Request Quote
Merit Sensor PMD Series	No Gel	Ceramic Chimney	60 psi	Absolute	Request Quote
Merit Sensor PMD Series	No Gel	Ceramic Chimney	60 psi	Gauge	Request Quote
Merit Sensor PMD Series	Black Silicone Gel	Ceramic Chimney	15 psi	Absolute	Request Quote
Merit Sensor PMD Series	Black Silicone Gel	Ceramic Chimney	15 psi	Gauge	Request Quote
Merit Sensor PMD Series	Black Silicone Gel	Ceramic Chimney	30 psi	Absolute	Request Quote
Merit Sensor PMD Series	Black Silicone Gel	Ceramic Chimney	30 psi	Gauge	Request Quote
Merit Sensor PMD Series	Black Silicone Gel	Ceramic Chimney	5 psi	Absolute	Request Quote
Merit Sensor PMD Series	Black Silicone Gel	Ceramic Chimney	5 psi	Gauge	Request Quote
Merit Sensor PMD Series	Black Silicone Gel	Ceramic Chimney	50 psi	Absolute	Request Quote
Merit Sensor PMD Series	Black Silicone Gel	Ceramic Chimney	50 psi	Gauge	Request Quote
Merit Sensor PMD Series	Black Silicone Gel	Ceramic Chimney	60 psi	Absolute	Request Quote
Merit Sensor PMD Series	Black Silicone Gel	Ceramic Chimney	60 psi	Gauge	Request Quote
Merit Sensor PMD Series	No Gel	Barb, Black Anodised Aluminium	15 psi	Absolute	Request Quote
Merit Sensor PMD Series	No Gel	Barb, Black Anodised Aluminium	15 psi	Gauge	Request Quote
Merit Sensor PMD Series	No Gel	Barb, Black Anodised Aluminium	30 psi	Absolute	Request Quote
Merit Sensor PMD Series	No Gel	Barb, Black Anodised Aluminium	30 psi	Gauge	Request Quote
Merit Sensor PMD Series	No Gel	Barb, Black Anodised Aluminium	5 psi	Absolute	Request Quote
Merit Sensor PMD Series	No Gel	Barb, Black Anodised Aluminium	5 psi	Gauge	Request Quote
Merit Sensor PMD Series	No Gel	Barb, Black Anodised Aluminium	50 psi	Absolute	Request Quote
Merit Sensor PMD Series	No Gel	Barb, Black Anodised Aluminium	50 psi	Gauge	Request Quote
Merit Sensor PMD Series	No Gel	Barb, Black Anodised Aluminium	60 psi	Absolute	Request Quote
Merit Sensor PMD Series	No Gel	Barb, Black Anodised Aluminium	60 psi	Gauge	Request Quote
Merit Sensor PMD Series	Black Silicone Gel	Barb, Black Anodised Aluminium	15 psi	Absolute	Request Quote
Merit Sensor PMD Series	Black Silicone Gel	Barb, Black Anodised Aluminium	15 psi	Gauge	Request Quote
Merit Sensor PMD Series	Black Silicone Gel	Barb, Black Anodised Aluminium	30 psi	Absolute	Request Quote
Merit Sensor PMD Series	Black Silicone Gel	Barb, Black Anodised Aluminium	30 psi	Gauge	Request Quote
Merit Sensor PMD Series	Black Silicone Gel	Barb, Black Anodised Aluminium	5 psi	Absolute	Request Quote
Merit Sensor PMD Series	Black Silicone Gel	Barb, Black Anodised Aluminium	5 psi	Gauge	Request Quote
Merit Sensor PMD Series	Black Silicone Gel	Barb, Black Anodised Aluminium	50 psi	Absolute	Request Quote
Merit Sensor PMD Series	Black Silicone Gel	Barb, Black Anodised Aluminium	50 psi	Gauge	Request Quote
Merit Sensor PMD Series	Black Silicone Gel	Barb, Black Anodised Aluminium	60 psi	Absolute	Request Quote
Merit Sensor PMD Series	Black Silicone Gel	Barb, Black Anodised Aluminium	60 psi	Gauge	Request Quote
