Merit Sensor HTS Series

  • Merit Sensor

Product Features

  • Surface mountable analog and digital pressure sensor
  • Pressure ranges from 1 to 100 psi
  • Absolute or Gauge options available
  • Temperature range −40°C to +125°C
  • Compatible with wet, corrosive media

Applications

  • Compliant

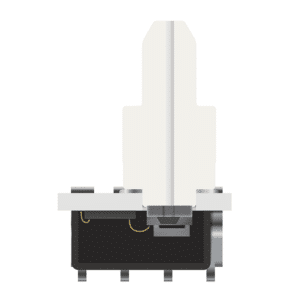

The HTS Series from Merit Sensor is a high-precision pressure sensor designed for reliable performance in a variety of applications, including automotive, industrial, and medical sectors. It offers pressure range flexibility from 1 to 100 psi (70 to 7000 mbar / 7 to 700 kPa) and ensures low drift and long-term accuracy. Built with robust, resistant materials, its backside-pressure measurement provides great compatibility with wet, corrosive media.

  • Surface mountable analog and digital pressure sensor
  • Pressure ranges from 1 to 100 psi
  • Absolute or Gauge options available
  • Temperature range −40°C to +125°C
  • Accuracy of 1% or 2.5%
  • Outputs of Digital I2C and Analog 0.5V – 4.5V
  • Supply voltage of 5V (typical)
  • Supply current of 6.5mA (typical @5V input voltage)
  • Compatible with wet, corrosive media
  • Proof pressure of 2x full scale pressure
  • Burst pressure of 5x full scale pressure



Typical applications for the Merit Sensor HTS series include:

  • Automotive: Engine control, transmission systems, and fuel systems
  • Industrial: Process control, compressors, and hydraulic systems
  • Medical: Respiratory devices, diagnostic equipment, and fluid management systems
  • Aerospace: Hydraulic and pneumatic systems, fuel management, and environmental monitoring
  • Energy: Oil and gas exploration, geothermal systems, and energy storage
  • HVAC: Refrigeration systems, air conditioning units, and heating systems

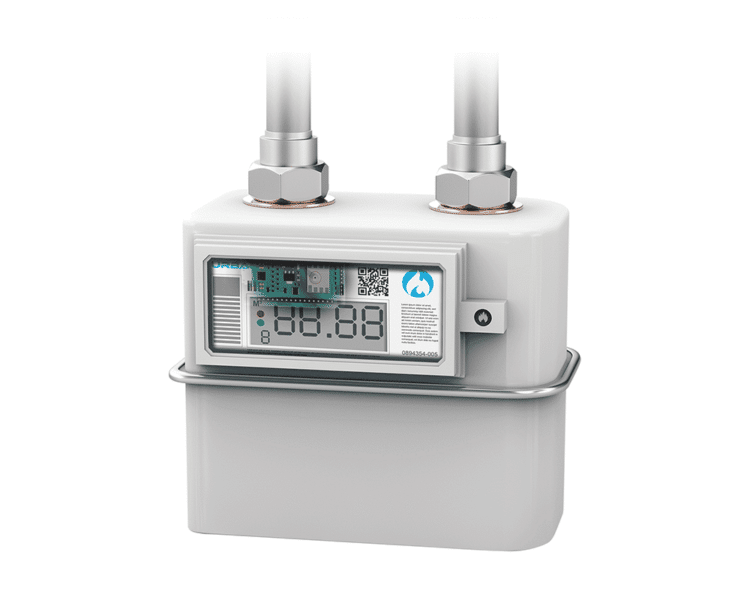

  • Consumer Electronics: Pressure monitoring in appliances and other high-tech products



Merit Sensor Systems, Inc. partners with Rhopoint and it’s customers to design, fabricate, assemble and package reliable, cost-effective piezoresistive pressure sensor solutions for automotive, medical, industrial, aviation, defense and consumer applications. Please visit https://meritsensor.com/ for more information.

Specifications

Weight 0.00148 kg
Dimensions 15.4 x 13.1 x 10.5mm
Series / Model

Product Type

,

Package / Size

Pressure Range

, , ,

Pressure Type

,

I²C Address

0x28

Termination / Connection

J-Lead

Accuracy

±1%, ±2.5%

Supply Voltage

4.5 to 5.5V

Output

0.5 to 4.5V, Digital I2C

Temperature Range (°C)

-40 to +125°C

Merit Sensor HTS Series Ordering Info

Below is the model number configuration for the HTS series from Merit Sensor.

Ordering example: 1510-003A-012
1510XXXXXXX

Series / Model (1510)

1510
HTS

Pressure Range (XXX)

001     1 psi
003     3 psi
015     15 psi
100     100 psi

Pressure Type (X)

I²C Address (X)

0
0x28

Termination / Connection (X)

1
J-Lead

Accuracy (X)

1
±2.5%
2
±1%

Custom calibration available upon request.

Merit Sensor HTS Series Resources

Product Datasheet

Supporting Manufacturer Information
