TMR Digital Open-Drain Magnetic Sensor

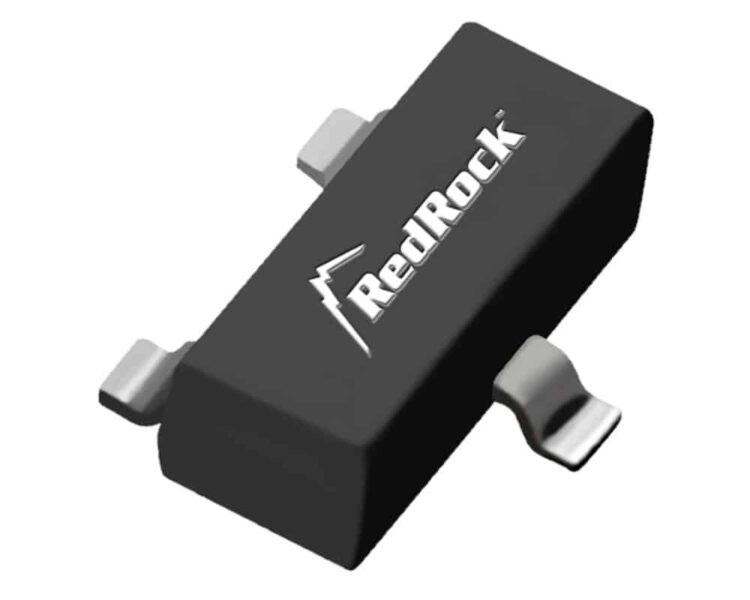

The RedRock™ RR132-2E22/2E23 sensor series from Coto Technology is a range of digital open-drain magnetic sensors designed using a patented Tunneling Magnetoresistance (TMR) technology with seamless CMOS integration. The RR132-2E22/2E23 series features a typical operate sensitivity of -15 G (-1.5 mT), with a unipolar magnetic field response. They offer a wide supply voltage range from 1.7V to 5.5V, ideal for applications ranging from small battery-powered electronics to industrial machinery. The TMR sensors have a typical current drain of 85nA (at 3V and operating at 10Hz) and are available with operating temperature ranges of -40°C to +85°C (RR132-2E22-551) or -40°C to +125°C (RR132-2E23-551). These sensors are ideal for use in medical, industrial, automotive, and consumer applications.

• TMR digital open-drain magnetic sensor
• Operate sensitivity of -15 G (typical)
• Release point sensitivity of -10 G (typical)
• Average supply current of 85nA at 3V (typical)
• Supply voltage range of 1.7V to 5.5V
• Unipolar Open-drain Response
• Operating frequency of 10Hz
• Temperature range of -40° to +85° (RR132-2E22-551)
• Temperature range of -40°C to +125°C (RR132-2E23-551)
• Hysteresis (B_HYST)² of 5G (typical)
• SOT-23-3 (551) package

Approvals for the Coto Technology RR132-2E22/2E23 Series include:

• RoHS
• REACH

Typical applications for the Coto Technology RR132-2E22/2E23 Series include:

• Proximity Detection
• Rotary Sensing
• Fluid Level Detection
• Door & Lid Closure Detection
• Utility Meters
• Portable Medical Devices
• Motor Controllers
• Consumer Electronics
• Wake-up Microprocessor
