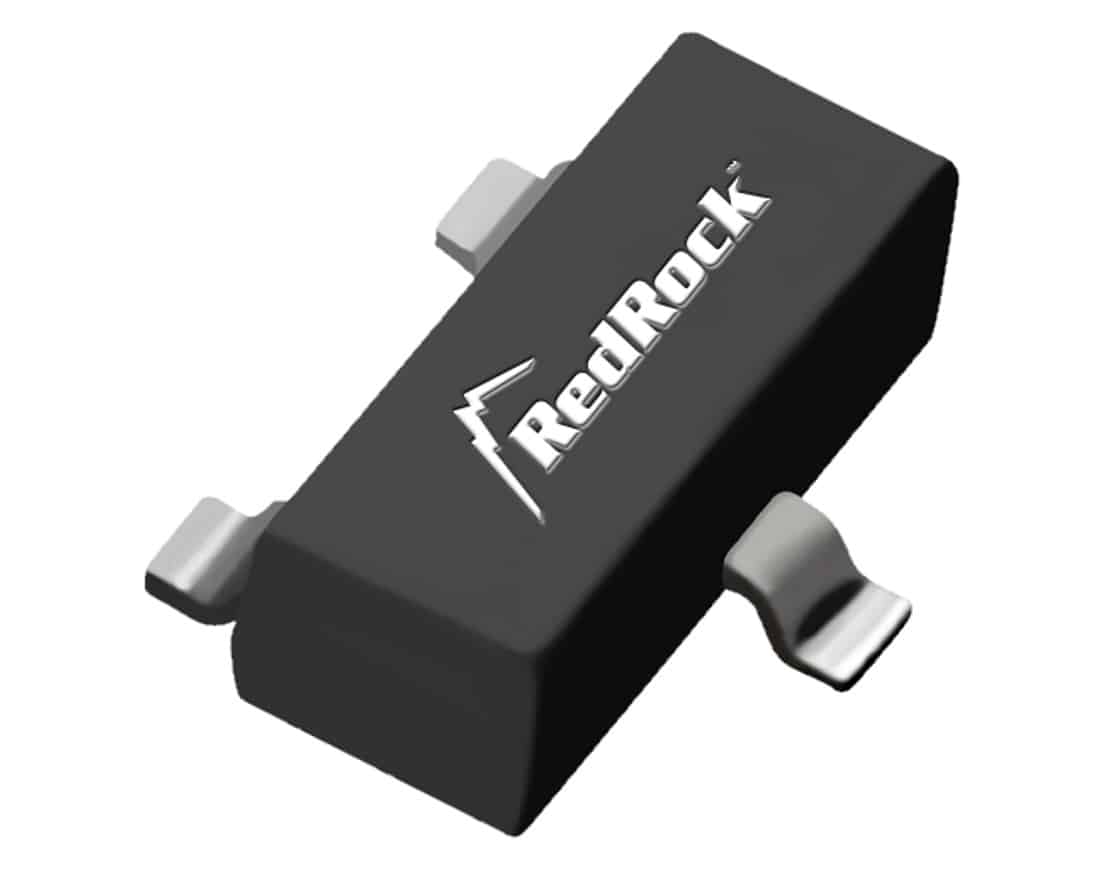

TMR Analog Magnetic Sensor

Coto RR112-1G42/1G43 Series

  • TMR analog magnetic sensor
  • Operate sensitivity from -80 G to +80 G (typical)
  • Average supply current of 1.5ฮผA at 3V (typical)
  • Supply voltage range of 1.7V to 5.5V
  • Linear Analog Voltage Response
  • Operating frequency of 100Hz
  • SOT-23-3 (531) or LGA4 (532) package
Please be informed that the following Coto product families are being moved to an End of Life status once stocks have depleted.
  • RedRockยฎ RR112, RR122 and RR132 TMR product series
As such we will not be able to supply these for any new projects. Customers with exhisting use of these products are urged to get in contact so that we can look about possible alternative solutions.
You can reach our team on +44 (0) 1342 330 470 or email us at sales@rhopointcomponents.com


The RedRockโ„ข RR112-1G42/1G43 sensor series from Coto Technology is a range of analog magnetic sensors designed using a patented Tunneling Magnetoresistance (TMR) technology with seamless CMOS integration. The RR112-1G42/1G43 series features a typical operate sensitivity from -80 G to +80 G (typical), with a linear analog voltage response. They offer a wide supply voltage range from 1.7V to 5.5V, ideal for applications ranging from small battery-powered electronics to industrial machinery. The TMR sensors have a typical current drain of 1.5ฮผA (at 3V and operating at 100Hz) and are available with operating temperature ranges of -40ยฐC to +85ยฐC (RR112-1G42-531/RR112-1G42-532) or -40ยฐC to +125ยฐC (RR112-1G43-531/RR112-1G43-532). These sensors are ideal for use in medical, industrial, automotive, and consumer applications.

  • TMR analog magnetic sensor
  • Operate sensitivity from -80 G to +80 G (typical)
  • Average supply current of 1.5ฮผA at 3V (typical)
  • Supply voltage range of 1.7V to 5.5V
  • Linear Analog Voltage Response
  • Operating frequency of 100Hz
  • Temperature range of -40ยฐ to +85ยฐ (RR112-1G42-531/RR112-1G42-532)
  • Temperature range of -40ยฐC to +125ยฐC (RR112-1G43-531/RR112-1G43-532)
  • SOT-23-3 (531) or LGA4 (532) package

Approvals for the Coto Technology RR112-1G42/1G43 Series include:

  • RoHS
  • REACH

Typical applications for the Coto Technology RR112-1G42/1G43 Series include:

  • Proximity Detection
  • Rotary Sensing
  • Fluid Level Detection
  • Door & Lid Closure Detection
  • Utility Meters
  • Portable Medical Devices
  • Motor Controllers
  • Consumer Electronics
  • IoT Devices


Coto is a worldwide market leader of small signal-switching products sold into the Automatic Test Equipment, Data Acquisition, Instrumentation, Process Control, Telecommunications, Medical and Security markets. Coto specialises in the manufacture of relay, switch and sensor products. Coto are the pioneers of the RedRockยฎ analog and digital TMR magnetic sensors, offering the lowest power consumption, highest sensitivity, ultra-miniature package size, short lead times and a highly-competitive price. Please visit https://cotorelay.com/ for more information.

Specifications

Series / Model

,

Product Type

Magnetic Polarity Response

Omnipolar

Clock Frequency

100Hz

Temperature Range (ยฐC)

-40 to +85ยฐC, -40 to +125ยฐC

Supply Voltage

1.7 to 5.5V

Average Supply Current

1.5ฮผA at 3V (typical)

Output Response

Analog

Package / Size

,

Ordering Info

Below is the model number configuration for the RR112 series from Coto Technology.
Ordering example: RR112-1G43-531
RR112-XXYX-YXY

Series / Model (RR112)

RR112
RR112

Magnetic Polarity Response (X)

1
Omnipolar

Magnetic Sensitivity (X)

G
-5 mV/V/G

Clock Frequency (Y)

4
100Hz

Temperature Range (ยฐC) (X)

2
-40 to +85ยฐC
3
-40 to +125ยฐC

Supply Voltage (Y)

5
1.7 to 5.5V

Output Response (X)

3
Analog

Package / Size (Y)

1
SOT-23-3
2
LGA-4

Product Variations

SKUMagnetic Polarity ResponseMagnetic SensitivityClock FrequencyTemperature Range (ยฐC)Supply VoltageOutput ResponsePackage / Size
RR112-1G42-531Omnipolar-5 mV/V/G100Hz-40 to +85ยฐC1.7 to 5.5VAnalogSOT-23-3
RR112-1G42-532Omnipolar-5 mV/V/G100Hz-40 to +85ยฐC1.7 to 5.5VAnalogLGA-4
RR112-1G43-531Omnipolar-5 mV/V/G100Hz-40 to +125ยฐC1.7 to 5.5VAnalogSOT-23-3
RR112-1G43-532Omnipolar-5 mV/V/G100Hz-40 to +125ยฐC1.7 to 5.5VAnalogLGA-4
