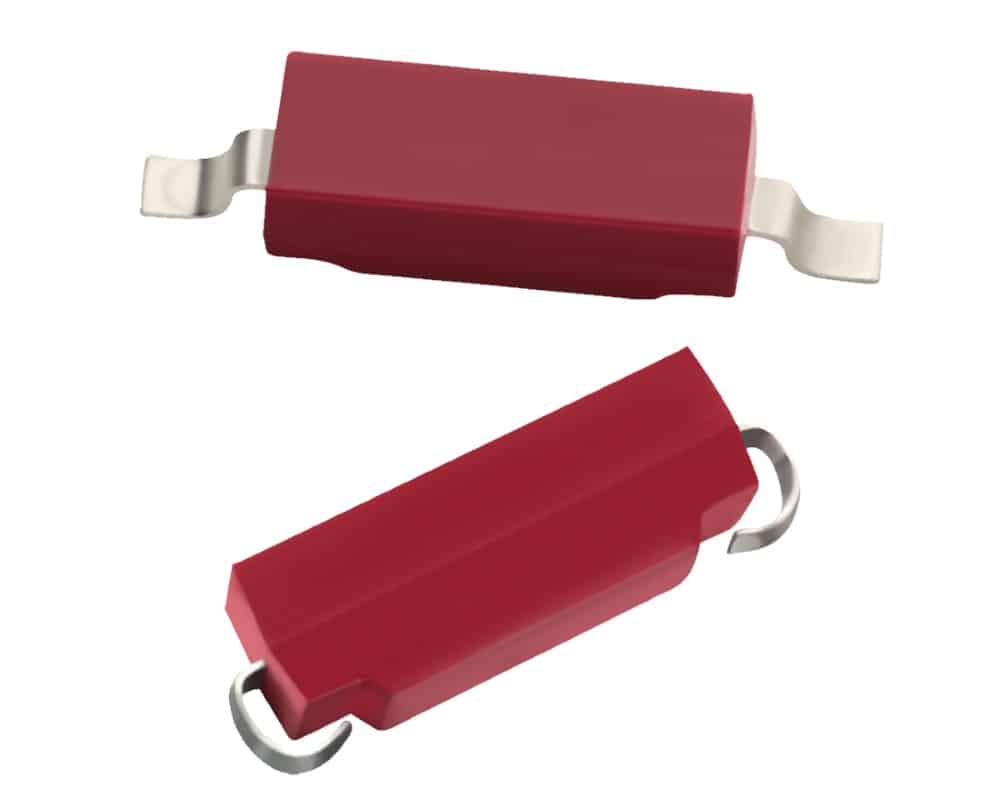

Molded Reed Switch

Coto CT05 Series

  • Surface mount moulded switch
  • Carry current DC 0.5A (max)
  • Ideal for SMD pick and place
  • Rugged encapsulation
  • Available in gull wing and J lead configurations
  • Tape and reel packaging available
  • Temperature range โˆ’40ยฐC to +125ยฐC
  • Compliant

The CT05 is a moulded dry reed switch from Coto. It is single-pole, single throw (SPST) type, having normally open ruthenium contacts. It has a total operating range of 15AT to 50AT with a release range of 5AT to 45AT and a switched power of 5W (max). The CT05 series is a double-ended type and may be actuated with an electromagnet, a permanent magnet or a combination of both. The device is designed with rugged encapsulation, excellent life and reliability, SMD mounting and is available in gull wing or J-lead configurations. The CT05 series is ideally suited to the needs of proximity sensing, medical applications, hearing aids and pulse counter.

  • Moulded dry reed switch
  • Total operating range 15AT to 50AT
  • Switched power 5W (max)
  • Release range 5AT to 45AT
  • Switched voltage DC 140V (max) and AC RMS value 100V (max)
  • Switched current DC 350mA (max) and AC RMS value 250mA (max)
  • Ideal for SMD pick and place
  • Temperature range โˆ’40ยฐC; to +125ยฐC
  • Available in gull wing or J lead configurations
  • Tape and reel packaging



Typical Applications include:

  • Proximity sensing
  • Medical applications
  • Hearing aids
  • Pulse counter



The below table gives the full specifications of the Coto CT05 magnetic sensor series:

Coto CT05 Specifications



Coto is a worldwide market leader of small signal-switching products sold into the Automatic Test Equipment, Data Acquisition, Instrumentation, Process Control, Telecommunications, Medical and Security markets. Coto specialises in the manufacture of relay, switch and sensor products. Coto are the pioneers of the RedRockยฎ analog and digital TMR magnetic sensors, offering the lowest power consumption, highest sensitivity, ultra-miniature package size, short lead times and a highly-competitive price. Please visit https://cotorelay.com/ for more information.

Specifications

Weight 0.00000 kg

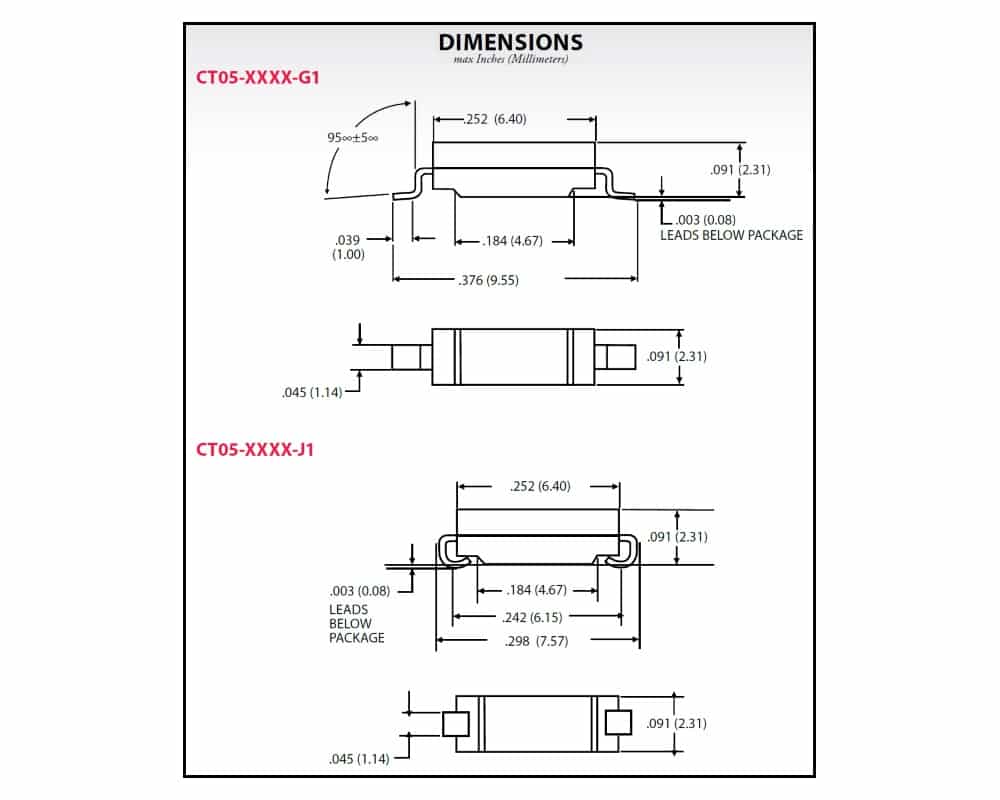

Dimensions 2.31 x 2.31 x 6.40mm
AT Range

15 – 35 AT, 25 – 50 AT, 30 – 50 AT

Operating Current

250mA, 350mA

Operating Range

15 to 50 AT

Power Rating

Release Range

5AT to 45AT

Series / Model

Switching Voltage

100VAC, 140VDC

Termination / Connection

Gull Wing, J-Lead

Product Variations

SKUAT RangeTermination / Connection
Coto CT05 Series25 - 50 ATGull Wing
Coto CT05 Series25 - 50 ATJ-Lead
Coto CT05 Series15 - 35 ATGull Wing
Coto CT05 Series15 - 35 ATJ-Lead
Coto CT05 Series30 - 50 ATGull Wing
Coto CT05 Series30 - 50 ATJ-Lead

CT Series Products

 Product nameSKUDatasheet
Coto CT05 SeriesCoto CT05 View Product
Coto CT10 SeriesCoto CT10 View Product

RoHS Compliant Product – Coto

This product is available fully compliant to the RoHS EU directive 2011/65/EU.
