The NVE AKL003-12E analog gear tooth sensors are versatile, wide airgap typically used with ferromagnetic gears and bias magnets. The sensor elements are spaced at 0.3mm for use with a recommended gear pitch between 0.6mm and 1.5mm with an operating frequency up to 10kHz. The AKL-series sensors from NVE combine a sensor bridge with integrated signal processing to provide a 50% duty cycle digital output. Integrated signal processing includes gain and offset normalization. AKL-Series sensors are configured as two wire devices, where the supply current indicates passing teeth.
The NVE AKL003-12E GMR analog gear tooth sensor covers the following applications:

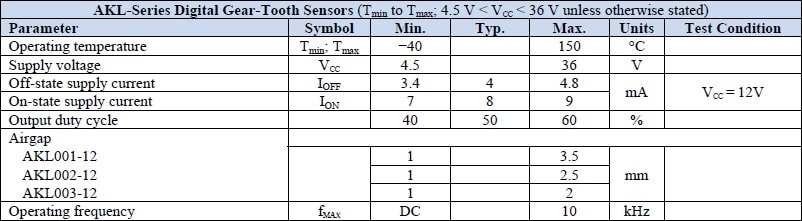

The below table gives the full specifications of the NVE AKL series including the AKL003-12E
| Weight | 0.05500 kg |
|---|---|
| Dimensions | 0.75 x 4.90 x 6.00mm |
| Operating Frequency | 10kHz |
| Series / Model | |
| Supply Voltage | 4.5 to 36V |
| Temperature Range (°C) | -40 to +150°C |
| Product name | SKU | Datasheet | ||
|---|---|---|---|---|
| NVE AKL001-12E | NVE AKL001-12E | View Product | |
|
| NVE AKL002-12E | NVE AKL002-12E | View Product | |
|
| NVE AKL003-12E | NVE AKL003-12E | View Product |
We are pleased to provide you with a range of additional content including videos, product datasheets, case studies, white papers and application notes for your reference. Please see below for the latest content available:
| VIDEOS | |
|---|---|
| Analog Gear Tooth Sensor Reference Circuit
ABL series analog gear-tooth sensors detect gear speed and direction. NVE show a simple reference circuit and demonstrate the sensor and circuitry in a stepper motor servo system. |
|
| AKL Series Gear Tooth Sensor Demonstration
A live demonstration of NVE's unique AKL-Series digital gear-tooth sensor. |
|
| Gear Tooth Sensor Live Demonstration
NVE's Jay Brown demonstrates the extraordinary wide air-gap range of their unique GMR gear tooth sensors. The demonstration includes single- and dual-bridge analog versions, plus digital versions. |
|
