The NVE ABL015-10E analog gear tooth sensors are versatile, wide airgap typically used with ferromagnetic gears and bias magnets. The sensor elements are spaced at 0.5mm for use with a recommended gear pitch between 1.5mm and 2.5mm with an operating frequency of 1MHz. The ABL015 series from NVE uses differential sensor elements that provide sinusoidal outputs and is a Dual-bridge sensor producing sine and cosine waveforms at the output to provide gear tooth direction information.
The NVE ABL015-10E GMR analog gear tooth sensor covers the following applications:
The below table gives the full specifications of the NVE ABL series including the ABL015-10E
| Weight | 0.02500 kg |
|---|---|

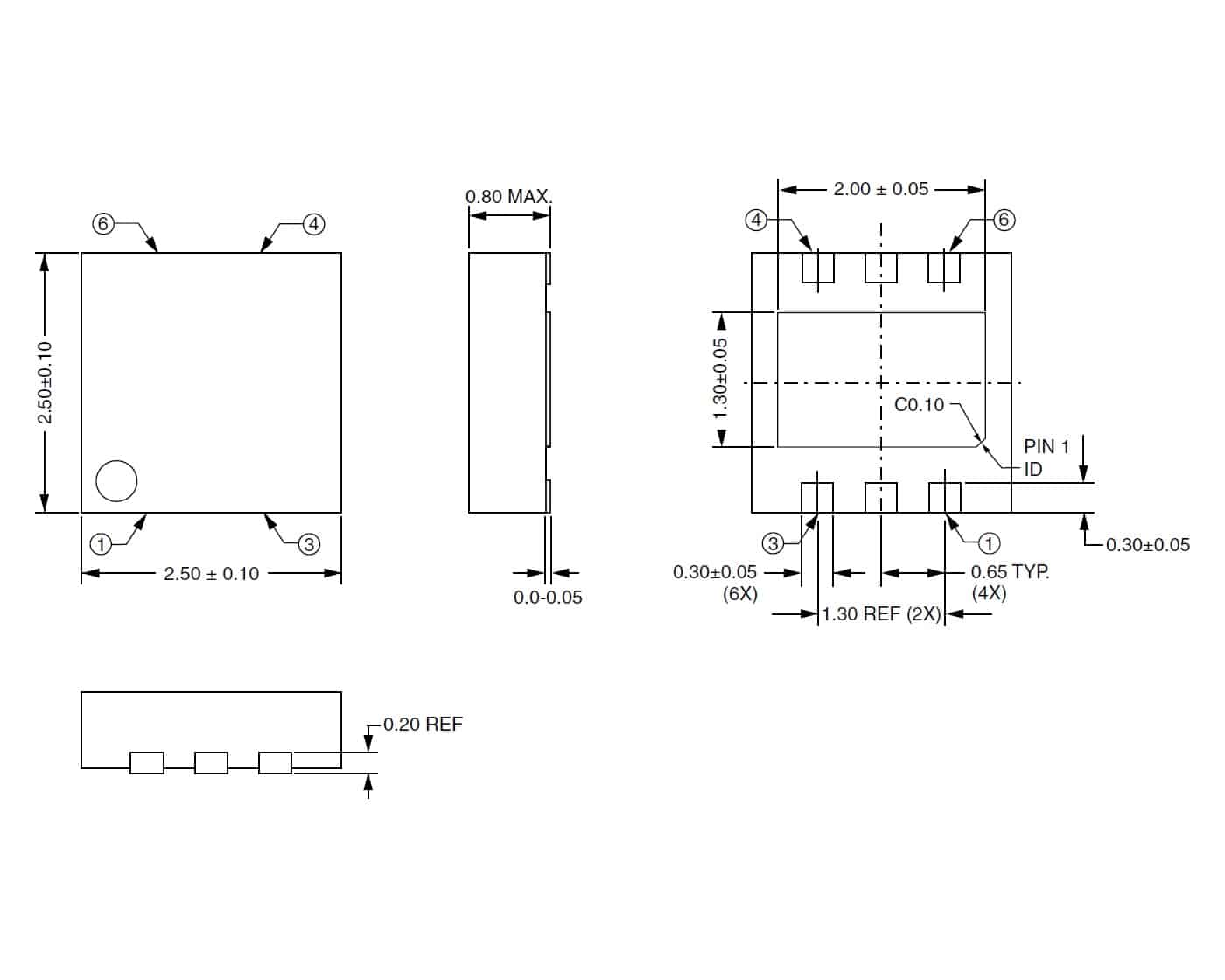

| Dimensions | 0.80 x 2.50 x 2.50mm |
| Maximum Resistance | 7kΩ |
| Operating Frequency | 1MHz |
| Saturation Field | 180 Oe |
| Series / Model | |
| Supply Voltage | 30V |
| Temperature Range (°C) | -50 to +150°C |
| Product name | SKU | Datasheet | ||
|---|---|---|---|---|
| NVE ABL004-00E | NVE ABL004-00E | View Product | |
| NVE ABL004-10E | NVE ABL004-10E | View Product | |
|
| NVE ABL005-00E | NVE ABL005-00E | View Product | |
|
| NVE ABL005-10E | NVE ABL005-10E | View Product | |
|
| NVE ABL006-00E | NVE ABL006-00E | View Product | |
|
| NVE ABL006-10E | NVE ABL006-10E | View Product | |
|
| NVE ABL014-00E | NVE ABL014-00E | View Product | |
|
| NVE ABL014-10E | NVE ABL014-10E | View Product | |
|
| NVE ABL015-00E | NVE ABL015-00E | View Product | |
|
| NVE ABL015-10E | NVE ABL015-10E | View Product | |
|
| NVE ABL016-00E | NVE ABL016-00E | View Product | |
|
| NVE ABL016-10E | NVE ABL016-10E | View Product |
We are pleased to provide you with a range of additional content including videos, product datasheets, case studies, white papers and application notes for your reference. Please see below for the latest content available:
| VIDEOS | |
|---|---|
| Analog Gear Tooth Sensor Reference Circuit
ABL series analog gear-tooth sensors detect gear speed and direction. NVE show a simple reference circuit and demonstrate the sensor and circuitry in a stepper motor servo system. |
|
| AKL Series Gear Tooth Sensor Demonstration
A live demonstration of NVE's unique AKL-Series digital gear-tooth sensor. |
|
| Gear Tooth Sensor Live Demonstration
NVE's Jay Brown demonstrates the extraordinary wide air-gap range of their unique GMR gear tooth sensors. The demonstration includes single- and dual-bridge analog versions, plus digital versions. |
|
| VIDEOS | |
|---|---|
| Analog Gear Tooth Sensor Reference Circuit
ABL series analog gear-tooth sensors detect gear speed and direction. NVE show a simple reference circuit and demonstrate the sensor and circuitry in a stepper motor servo system. |
|
| AKL Series Gear Tooth Sensor Demonstration
A live demonstration of NVE's unique AKL-Series digital gear-tooth sensor. |
|
| Gear Tooth Sensor Live Demonstration
NVE's Jay Brown demonstrates the extraordinary wide air-gap range of their unique GMR gear tooth sensors. The demonstration includes single- and dual-bridge analog versions, plus digital versions. |
|
