NVE ABL006-00E

The NVE ABL006-00E analog gear tooth sensors are versatile, wide airgap typically used with ferromagnetic gears and bias magnets. The sensor elements are spaced at 0.3mm for use with a recommended gear pitch of between 0.6mm and 1.5mm and an operating frequency of 1MHz. The ABL006 series from NVE uses differential sensor elements that provide sinusoidal outputs and is a single bridge sensor producing a sinusoidal wave form at the output.

• GMR analog gear tooth sensor
• Wide airgap
• Large analog peak-to-peak output
• Single bridge with 0.3mm element spacing
• Gear pitch between 0.6mm and 1.5mm
• Operating frequency of 1MHz
• Temperature range of -50°C to +150°C
• Supply voltage range between 0V and 30V
• Resistance range of 4kΩ to 7kΩ at +25°C
• Saturation Field of 180Oe

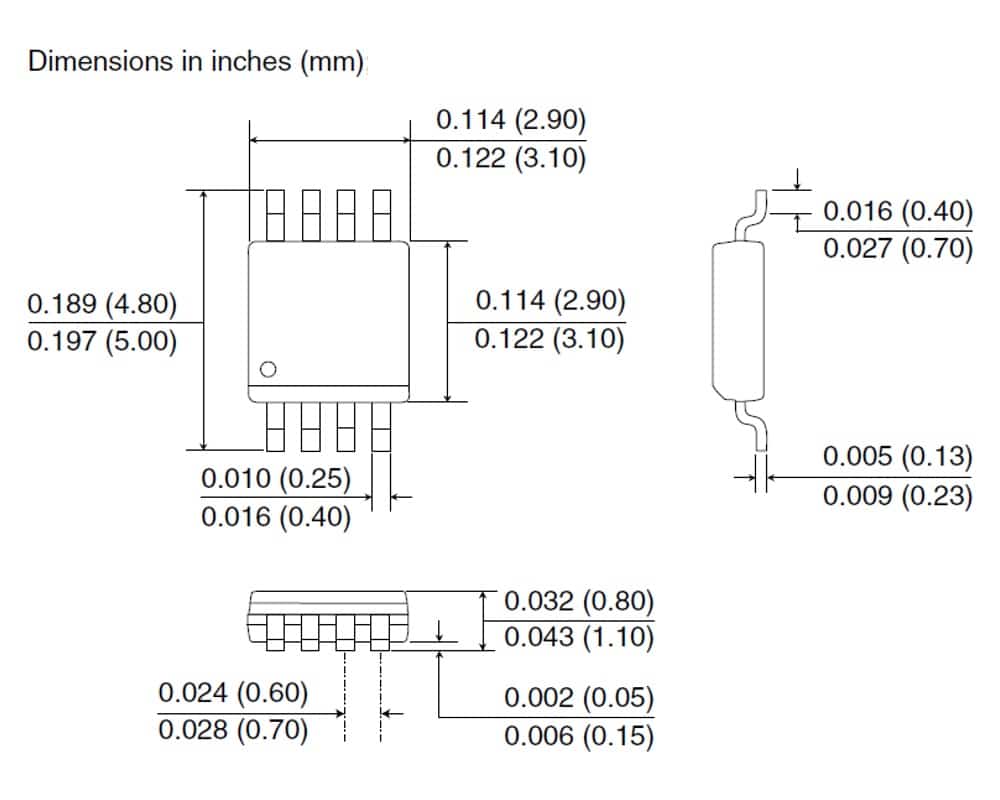

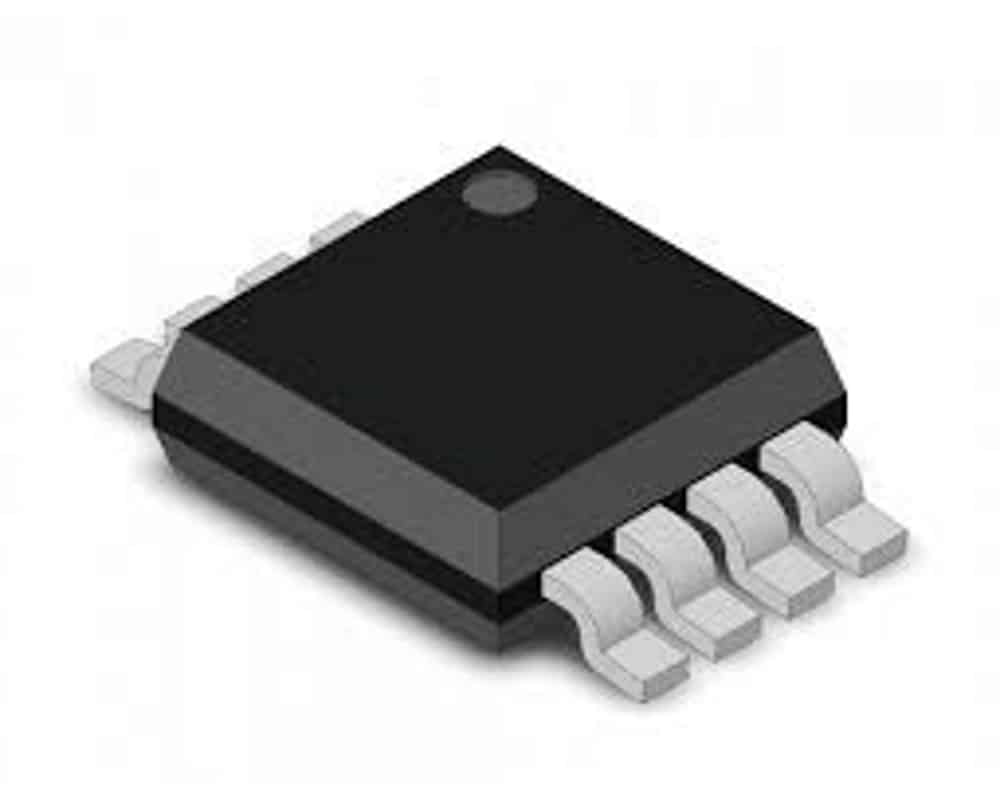

• MSOP8 Package type

The NVE ABL006-10E GMR analog gear tooth sensor covers the following applications:

• Motion, speed, and position sensing
• Linear and rotational encoders
• Closed-loop servo systems
• Automotive sensors

The below table gives the full specifications of the NVE ABL series including the ABL006-00E
