Stellar Technology MIN830 Series

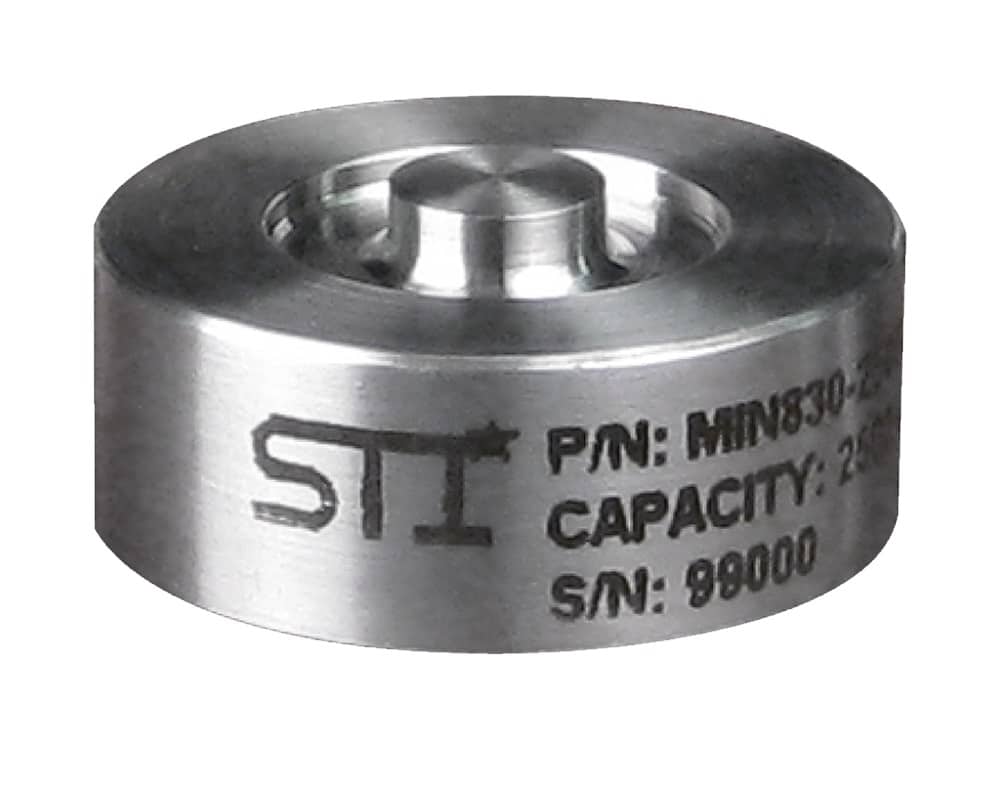

The MIN830 high capacity miniature compression load cell from Stellar Technology offers maximum load ranges from 10lbs to 30k lbs with an accuracy of ±0.5% BFSL. These compact-sized load cells are for general purpose compression load applications, the larger units are available with internal signal conditioning for analog (0-5 Vdc, 0-10 Vdc, 0.004-0.020A) and/or digital (RS232, RS485, CSNbus, MODbus) outputs. The MIN830 series from Stella Technology are constructed of all welded stainless steel and the bonded foil strain gauged force sensors, provide reliable performance for demanding applications.

• High capacity miniature compression load cell
• Maximum load ranges from 10lbs to 30k lbs
• Temperature range −65°F (-53.9°C) to +250°F (+121.1°C)
• Accuracy of ±0.5% BFSL
• Electrical output of 2mV/V (nominal)
• All welded stainless steel construction
• Temperature effect on zero of ±0.005% FSO/°F
• Temperature effect on span of ±0.005% reading/°F
• Zero balance of ±3% FSO
• Shock and vibration resistant
• Each unit comes with 5 point calibration record traceable to NIST

Optional features for the Stellar Technology MIN830 series include:

• Internal electronics for analog or digital output (consult us for available ranges)
• Customer specified cable lengths
• Metric versions
• Special calibration
• Temperature range (mV/V unit) −65°F (-53.9°C) to +400°F (+204.4°C)
• Mounting Base kit
• Special full scale ranges

Potential markets for the Stellar Technology MIN830 series include:

• Aerospace
• Defence systems
• Alternative energy
• Industrial automation
