Core Sensors CS12 Series

  • Core Sensors

Product Features

  • Submersible pressure transducer
  • Pressure ranges from 1 to 100 PSI
  • Accuracy down to โ‰คยฑ0.25% BFSL
  • Stability (1 year) of โ‰คยฑ0.25% of FS
  • Pressure cycles of 50 million
  • Overpressure of 2x minimum
  • Burst pressure of 5x or 500 PSI

Applications

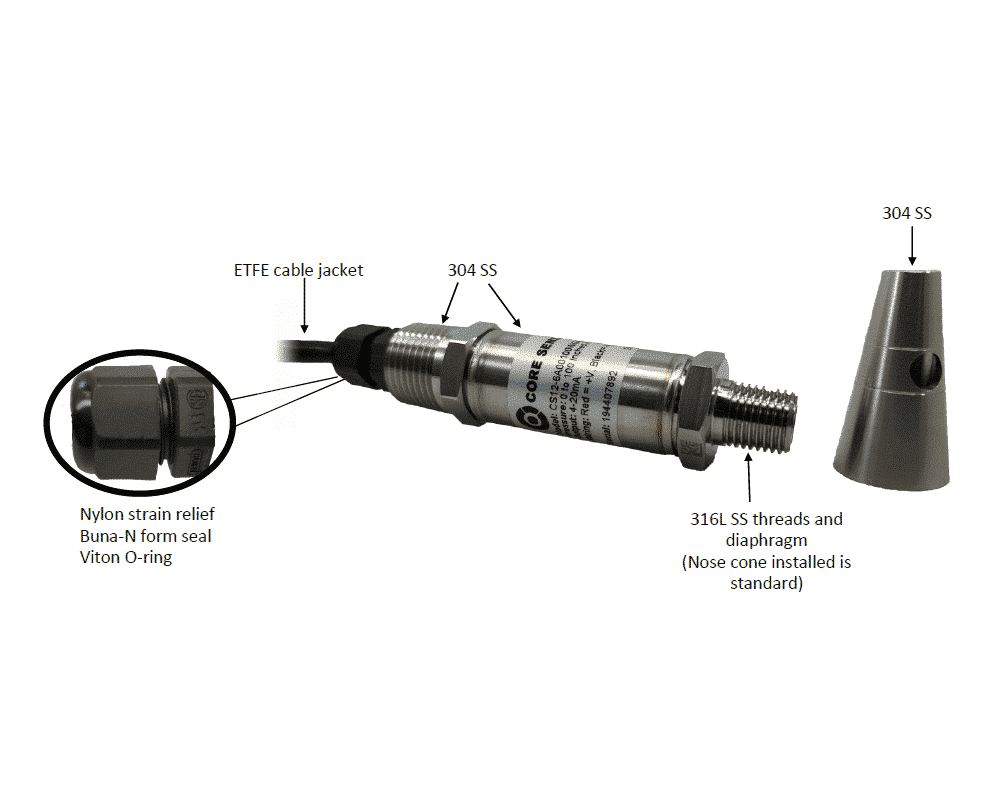

The CS12 Submersible Pressure Transducer is the ideal solution for continuous liquid level measurement. This transducer is engineered using 304 or 316L stainless steel construction, corrosion resistant ETFE cable jacket, and a Nylon strain relief for maximum versatility in a wide range of applications. The CS12 can also be utilised for non-submersible applications where flooding is a concern. 100 PSI is the maximum pressure rating for submersion however for non-submersible applications, the CS12 can be configured above 100 PSI, ensuring continuous pressure measurement even during flooding events. This pressure transducer is available with various outputs, an accuracy of โ‰คยฑ0.25% BFSL and an operating temperature range of -40ยฐC to +85ยฐC.

  • Submersible pressure transducer
  • Pressure ranges available from 1 PSI to 100 PSI
  • Accuracy down to โ‰คยฑ0.25% BFSL
  • Stability (1 year) of โ‰คยฑ0.25% of FS
  • Pressure cycles of 50 million
  • Overpressure of 2x minimum
  • Burst pressure of 5x or 500 PSI (whichever is less)
  • Electrical output options of 4-20mA, 1-5V, 0.5-2.5V non-ratiometric or 0.5-4.5V ratiometric
  • Temperature range โˆ’40ยฐC to +85ยฐC
  • 304 or 316L stainless steel construction
  • IP68 rated
  • ETFE cable jacket with wide diameter vent tube
  • Removable nose cone

Typical applications for the CS12 submersible pressure transducer series include:

  • Ballast tanks
  • Flood monitoring
  • Depth measurement
  • Level monitoring


Performance, Thermal, Environmental & Physical Specifications Table

AttributeValue
Accuracy @ 25ยฐC *โ‰คยฑ0.25% BFSL
โ‰คยฑ0.5% BFSL (โ‰ค2 PSI & below)
Stability (1 Year)โ‰คยฑ0.25% of FS
Pressure Cycles50 million
Overpressure2x minimum
Burst Pressure5x or 500 PSI (whichever is less)
Maximum Submersion100 PSI
Operating Temperature-40ยฐC to +85ยฐC
Compensated Temperature0ยฐC to +55ยฐC
Storage Temperature-40ยฐC to 125ยฐC
TC Zeroโ‰คยฑ1% of FS
โ‰คยฑ2% of FS (2 PSI & below)
TC Spanโ‰คยฑ1% of FS
โ‰คยฑ2% of FS (2 PSI & below)
EMI / RFI ProtectionYes
IP RatingIP68
Vibration10g, 20 to 2000Hz
Shock100g, 11msec, 1/2 sine
Weight (ex cable)~0.50lb
Cable Conductors22 AWG
Cable Pull Strength150lb

* Accuracy includes non-linearity, hysteresis and non-repeatability

Electrical Specifications (Voltage)

AttributeValue
Outputs1 to 5V
1 to 6V
Excitation10 to 28VDC
Current Consumption<10mA
Output Load5kฮฉ (minimum)
Frequency Response~1kHz (minimum)
Zero Offset (of FS)โ‰คยฑ0.5% (typical)
ยฑ1% maximum
Span Tolerance (of FS)โ‰คยฑ0.5% (typical)
ยฑ1% maximum

Electrical Specifications (Voltage)

AttributeValue
Outputs1 to 5V
Excitation10 to 28VDC
Current Consumption<10mA
Output Load5kฮฉ (minimum)
Frequency Response~1kHz (minimum)
Zero Offset (of FS)โ‰คยฑ0.5% (typical)
ยฑ1% maximum
Span Tolerance (of FS)โ‰คยฑ0.5% (typical)
ยฑ1% maximum

Electrical Specifications (Low Power Voltage)

AttributeValue
Outputs0.5 to 2.5V non-ratiometric
Excitation3 to 5VDC unregulated
Current Consumptionโ‰ค3mA
Output Load5kฮฉ (minimum)
Frequency Response~1kHz (minimum)
Zero Offset (of FS)โ‰คยฑ0.5% (typical)
ยฑ1% maximum
Span Tolerance (of FS)โ‰คยฑ0.5% (typical)
ยฑ1% maximum

Electrical Specifications (Millivolt)

AttributeValue
Outputs10mV/V
Excitation5VDC (typical)
Current Consumption<5mA
Output Impedance >1Mโ„ฆ
Frequency Response~5kHz (minimum)
Zero Offset (of FS)โ‰คยฑ2% (maximum)
Span Tolerance (of FS)โ‰คยฑ2% (maximum)


Core Sensors design and manufacture high-quality sensors for measuring pressure and temperature properties for industrial and hazardous applications worldwide. Core offers solutions for industrial, submersible, differential and hazardous applications in both standard and custom packaging. In-house design and manufacturing capabilities along with strategic manufacturing partners allow Core to create solutions to some of the most complex sensor requirements. Please visit https://core-sensors.com for more information.

Specifications

Product Type

Process Connection

1/4โ€ Male NPT, Nose Cone

Wetted Material

Pressure Range

Pressure Unit

Bar, Inches of H2O, PSI

Pressure Type

Output

4 to 20mA, 0.5 to 2.5V non-ratiometric, 0.5 to 4.5V ratiometric, 1 to 5V

Electrical

1/2โ€ MNPT conduit with Nylon strain relief

Options

No special options

Lead Length

5m, 10m, 16m, 20m, 31m

Accuracy

โ‰ค ยฑ0.25% BFSL, โ‰ค ยฑ0.5% BFSL (2 PSI)

Temperature Range (ยฐC)

-40 to +85ยฐC

Series / Model

,

Core Sensors CS12 Series Ordering Info

Below is the model number configuration for the CS12 series from Core Sensors.

Ordering example: CS12-6A00005PG4Z000-10
CS12XXXXXXXXXXXXXXXX

Series / Model (CS12)

CS12
CS12

Process Connection (X)

2
1/4โ€ Male NPT
6
Nose Cone

Wetted Material (X)

A
316L SS

Pressure Range (XXXXX)

Insert 5-digit pressure code, max 100 PSI
i.e. 00100 = 100 PSI

Pressure Unit (X)

B
Bar
P
PSI
W
Inches of H2O

Pressure Type (X)

G
Gauge

Output (X)

1
1 to 5V
2
0.5 to 4.5V ratiometric
4
4 to 20mA
8
0.5 to 2.5V non-ratiometric

Electrical (X)

Z
1/2โ€ MNPT conduit with Nylon strain relief

Options (XXX)

000
No special options

Lead Length (XX)

05
5m
10
10m
16
16m
20
20m
31
31m

Core Sensors CS12 Series Resources

Product Datasheet

Supporting Product Information

Supporting Manufacturer Information

  • Core Sensors

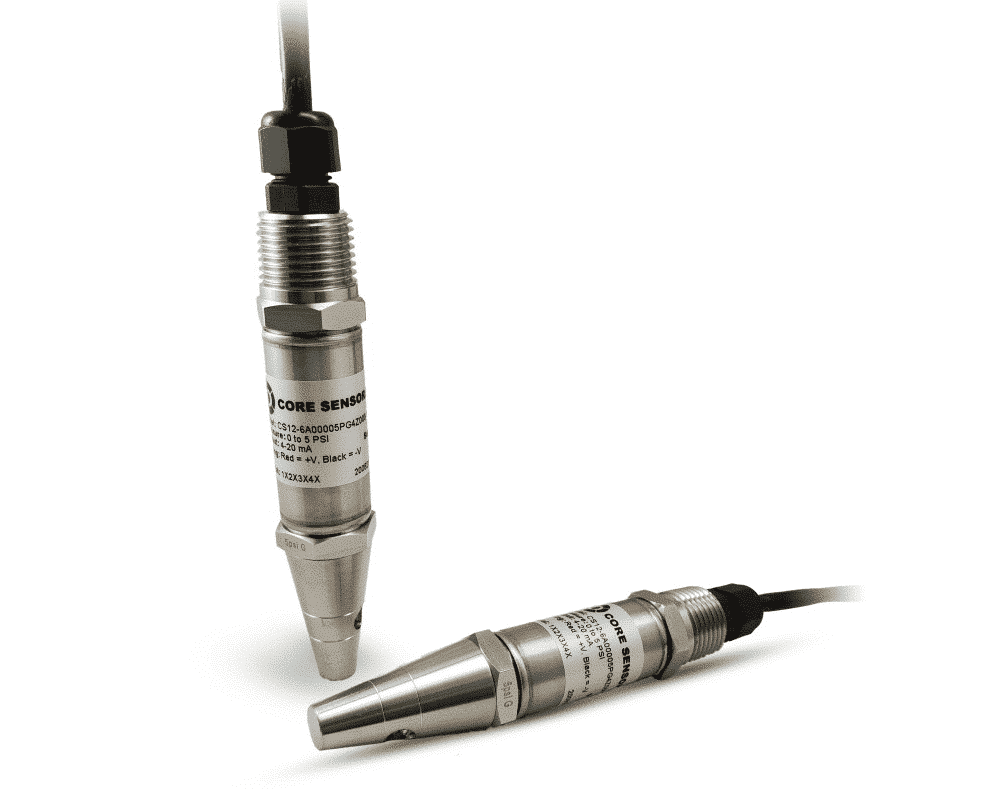

Core Sensors CS12 / CS82 Pressure Transducer Product Image
