Weidmüller LSF-SMT 5.00/180 Series

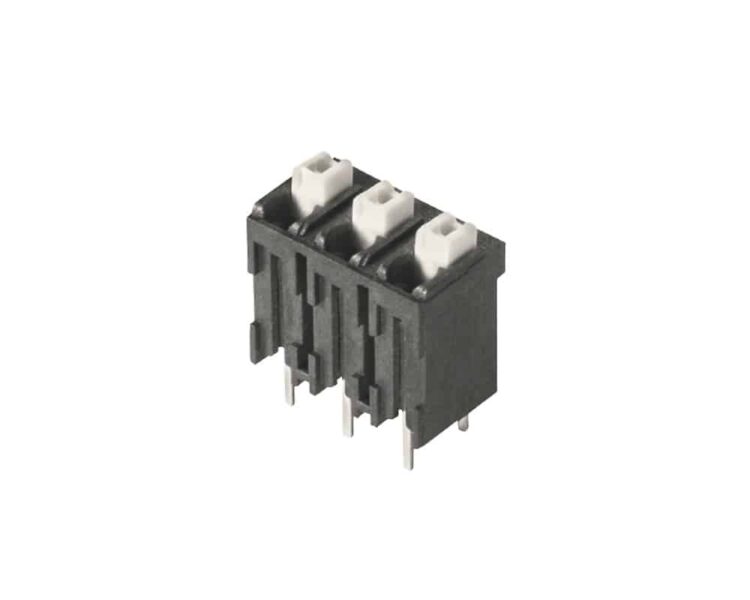

The LSF-SMT 5.00/180 PCB terminal series from Weidmüller’s Omnimate signal range, offers a spring connection with direct push in technology. Designed with a conductor outlet direction of 180°, and a choice from 2 up to 8 poles and a 5mm pitch. The LSF-SMT 5.00/180 series from Weidmüller have a fully automatic assembly using reflow soldering (SMT) and can be used with or without ferrules, with an operating temperature range of −50°C to +120°C .

• PCB terminal connector
• Through-hole technology with reflow soldering
• Number of poles available from 2 to 8
• Solder pin length of 3.5mm
• Pitch of 5mm
• Conductor outlet direction of 180°
• Wire connection cross section from AWG 28 to AWG 14
• CSA and UL 1059 approved, IEC listed
• Dimmensions for L1 from 5mm to 35mm depending on the number of poles required
• Rated current for minimum number of poles 17.5A (IEC) and 12A (UL)
• Packaged in tubes
• Temperature range −50°C to +120°C

The below table gives the specifications of the Weidmüller LSF-SMT 5.00/180 PCB terminal series:

Please see the relevant datasheet in the technical library for the exact specification
