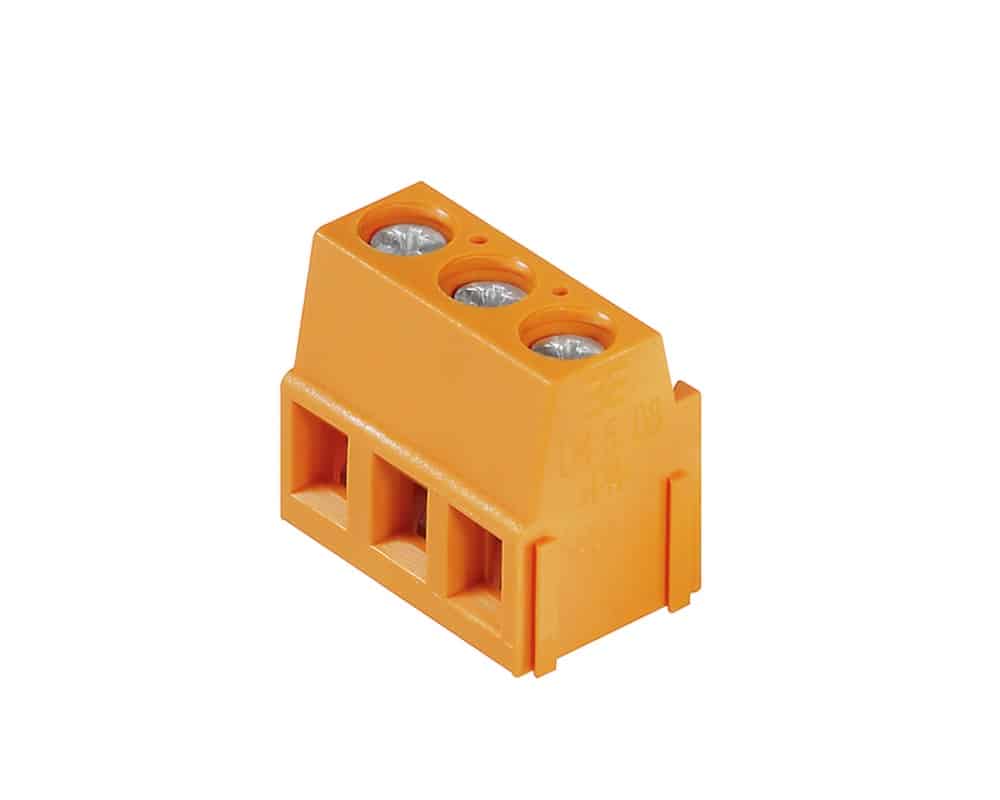

Weidmüller LM 5.08/90 Series

The LM 5.08/90 PCB terminal series from Weidmüller’s Omnimate signal range, offers a clamping yoke screw connection. Designed with a conductor outlet direction of 90° and a choice from 2 up to 24 poles and a 5.08mm pitch. The LM 5.08/90 series from Weidmüller have a fully automatic assembly using wave soldering and can be used with or without ferrules, with an operating temperature range of −50°C to +120°C .

• PCB terminal connector
• Through-hole technology with wave soldering
• Number of poles available from 2 to 24
• Solder pin length of 3.5mm
• Pitch of 5.08mm
• Conductor outlet direction of 90°
• Clamping yoke via screw connection
• Wire connection cross section from AWG 24 to AWG 14
• CSA and UL 1059 approved, IEC listed

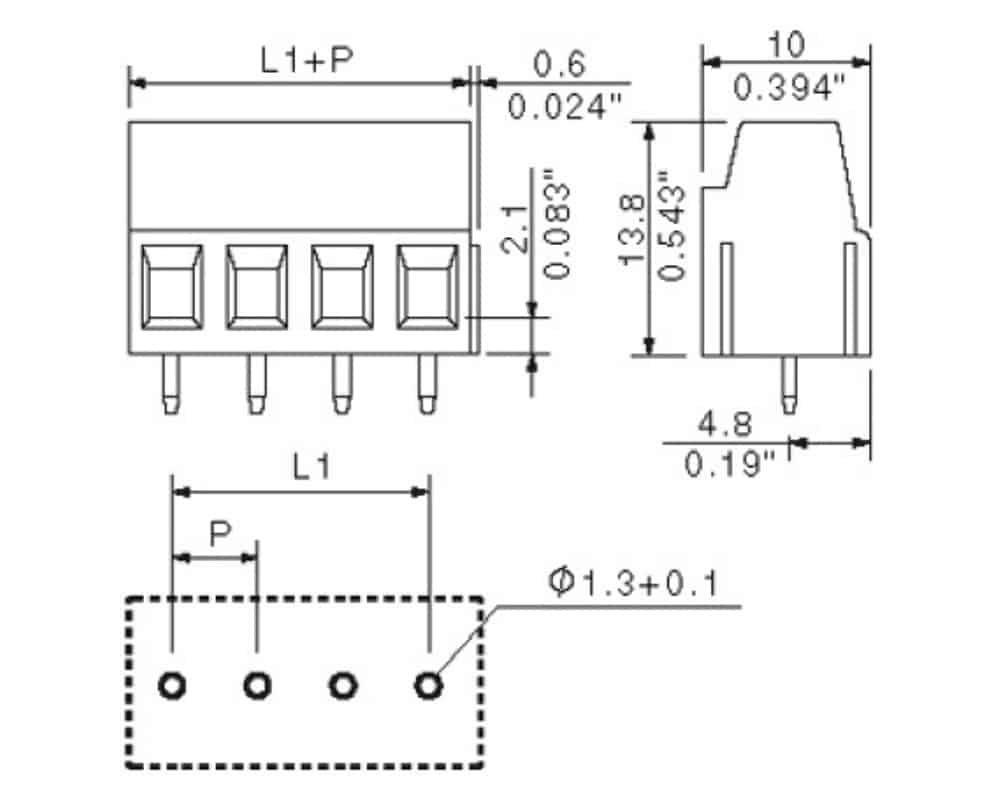

• Dimmensions for L1 from 5.08mm to 119.84mm depending on the number of poles required
• Rated current for minimum number of poles 17.5A (IEC) and 15A (UL)
• Orange in colour
• Packaged in Boxes
• Temperature range −50°C to +120°C

The below table gives the specifications of the Weidmüller LM 5.08/90 PCB terminal series:

Please see the relevant datasheet in the technical library for the exact specification
