Weidmüller BLF 5.08HC/180 Series

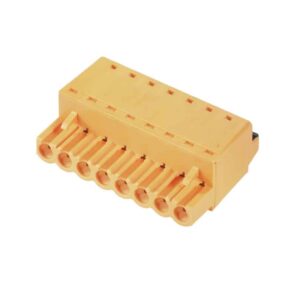

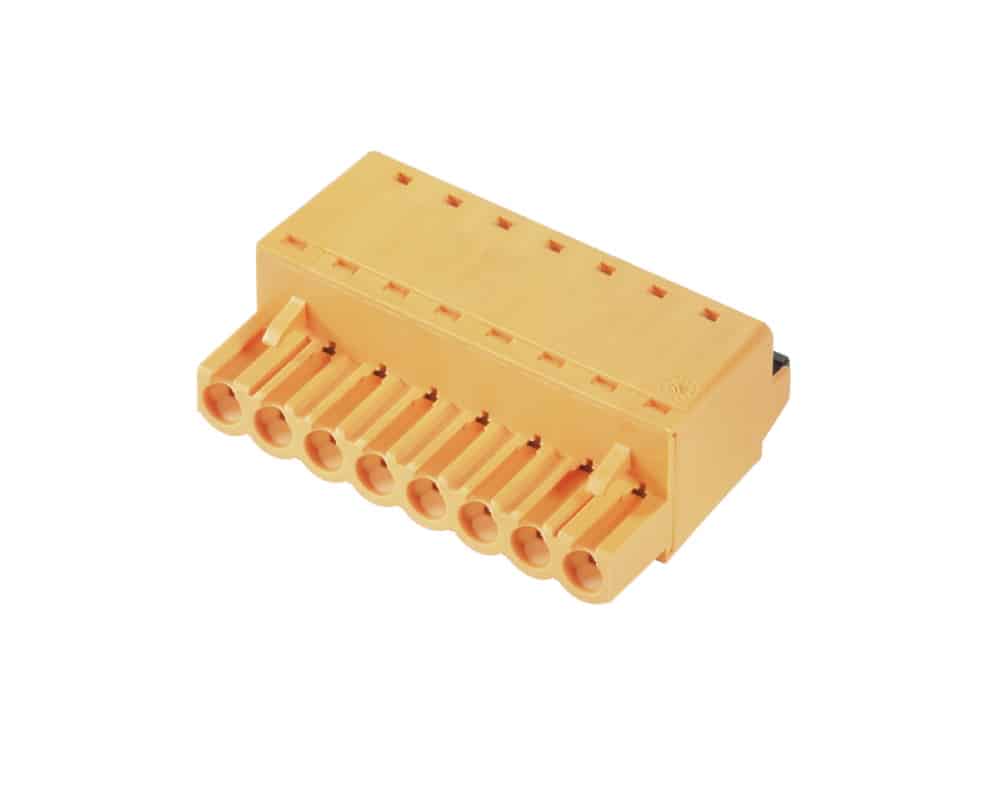

The BLF 5.08HC/180 high current, female PCB plug in connector series from Weidmüller’s Omnimate signal range has been designed with a conductor outlet direction of 180°. With a 5.08mm pitch and a choice from 2 up to 24 poles. The BLF 5.08HC/180 series from Weidmüller have a push in tension clamp connection with a high current rating of 24A (IEC) or 18.5A (UL approved). These connectors have an operating temperature range of −50°C up to +100°C .

• High current female plug in connector

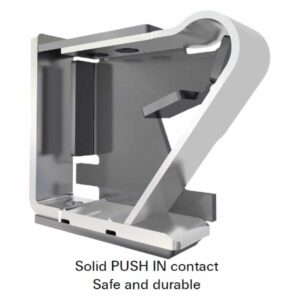

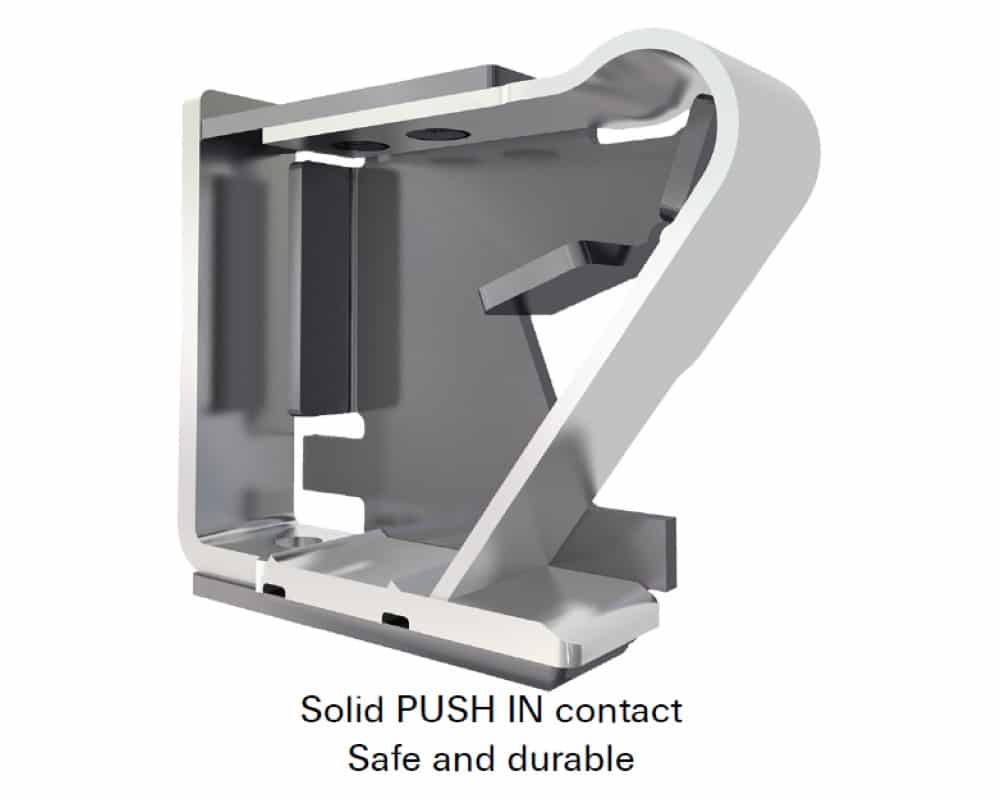

• Push in tension clamp connection
• Number of poles available from 2 to 24
• Clamping range from 0.13 mm² to 3.31mm²
• Wire connection cross section from AWG 26 to AWG 12
• Pitch of 5.08mm
• Conductor outlet direction of 180°
• CSA and UL 1059 approved, IEC listed

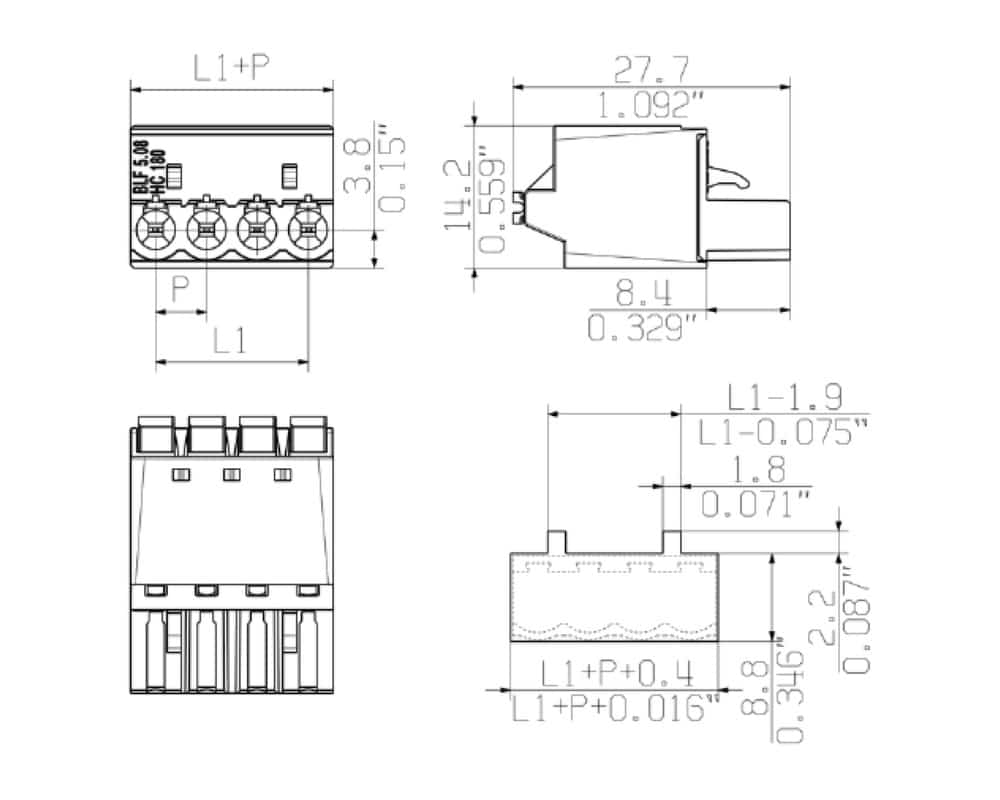

• Dimmensions for L1 from 5.08mm to 116.84mm depending on the number of poles required
• Rated current for minimum number of poles 24A (IEC) and 18.5A (UL)
• Orange in colour (additional colours available on request)
• Packaged in box
• Temperature range −50°C up to +100°C

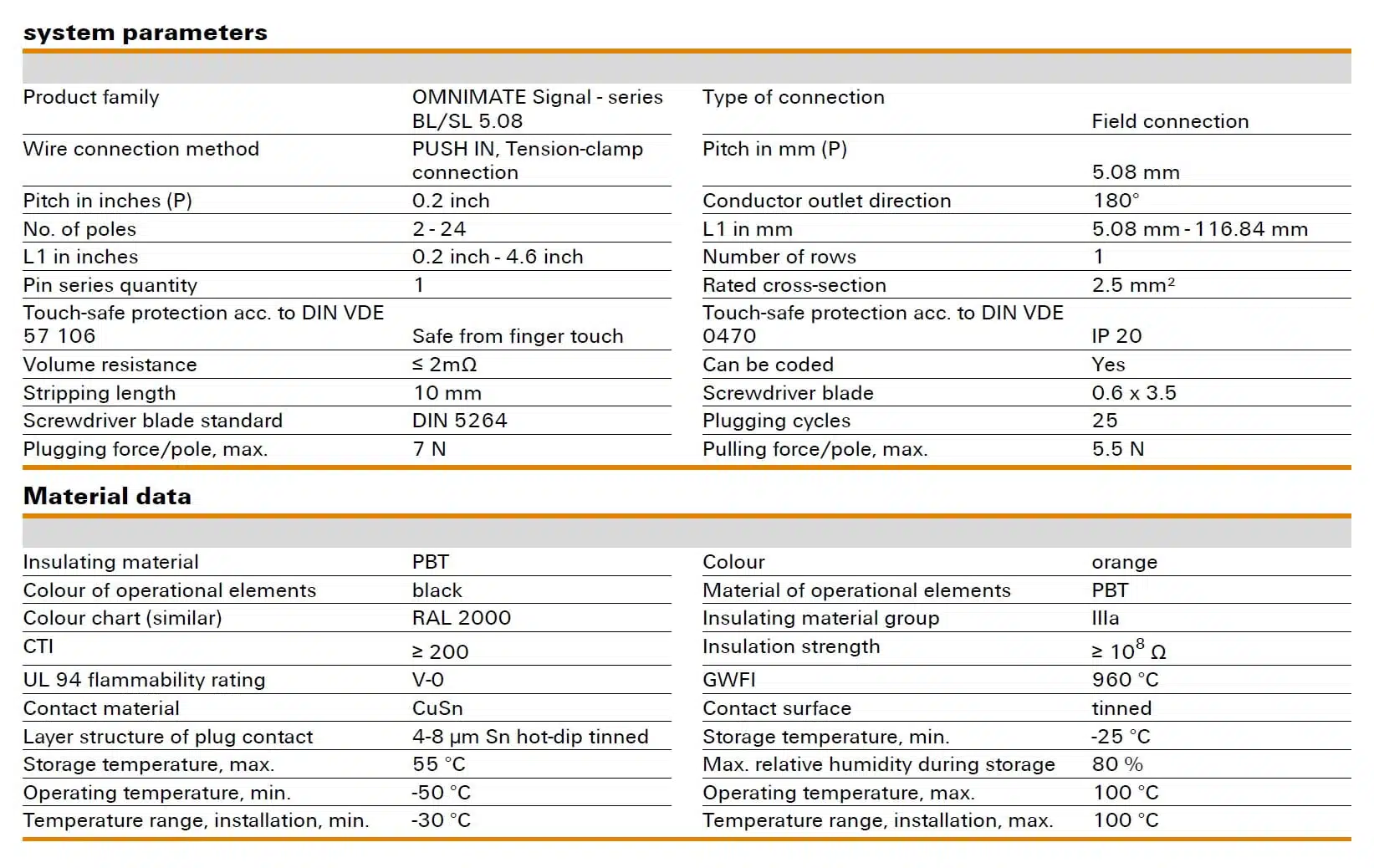

The below table gives the specifications of the Weidmüller BLF 5.08HC/180 PCB connector series:

Please see the relevant datasheet in the technical library for the exact specification
