Weidmüller BL 3.50/180 Series

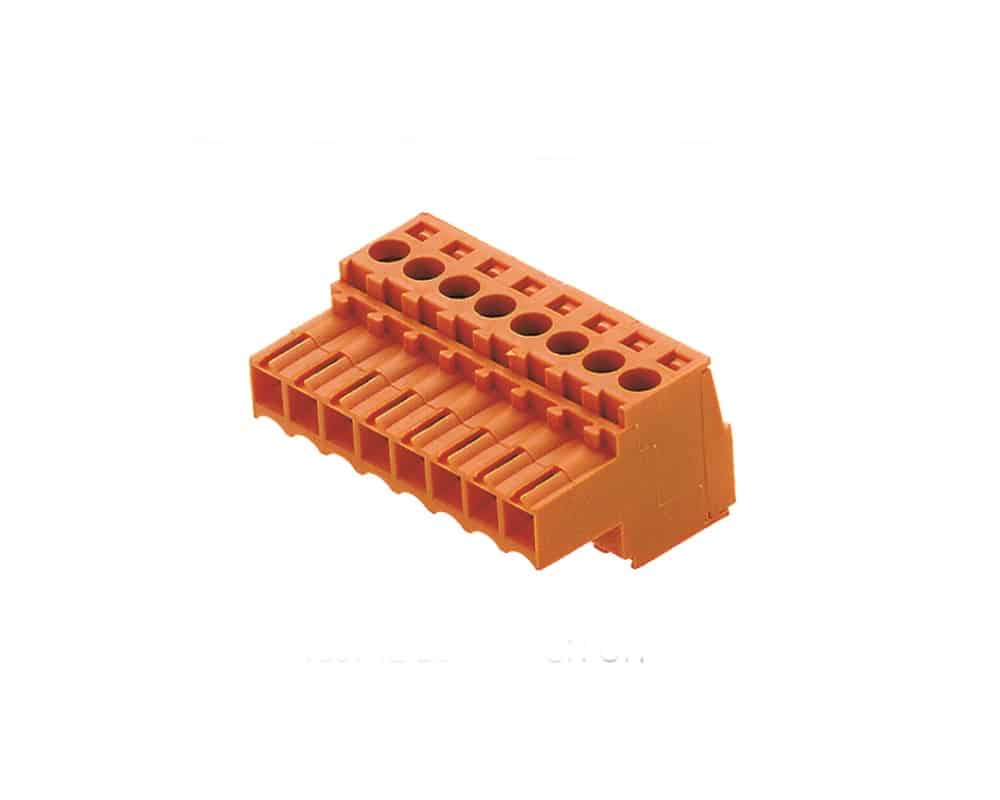

The BL 3.50/180 female PCB plug in connector series from Weidmüller’s Omnimate signal range has been designed with a conductor outlet direction of 180°. They have a 3.5mm pitch and a choice from 2 up to 24 poles. The BL 3.50/180 series from Weidmüller have a clamping yoke screw connection. These connectors have an operating temperature range of −50°C up to +100°C .

• Female plug in connector
• Clamping yoke via screw connection
• Number of poles available from 2 to 24
• Clamping range from 0.08 mm² to 1.5mm²
• Wire connection cross section from AWG 28 to AWG 14
• Pitch of 3.5mm
• Conductor outlet direction of 180°
• CSA and UL 1059 approved, IEC listed

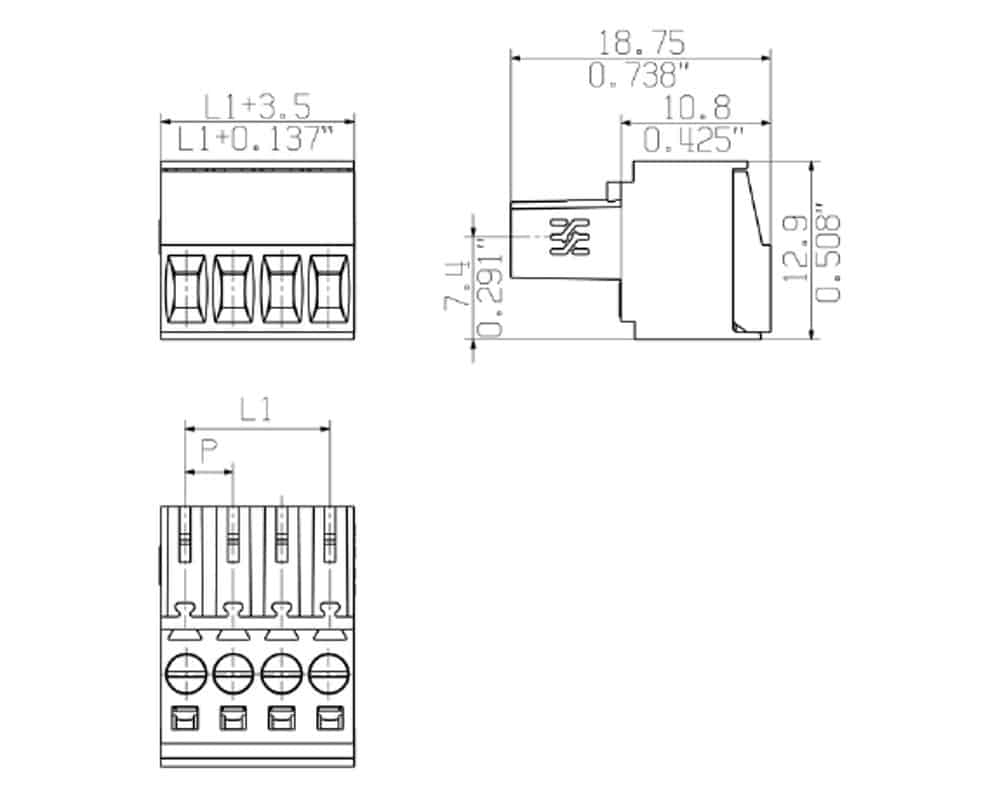

• Dimmensions for L1 from 3.5mm to 80.5mm depending on the number of poles required
• Rated current for minimum number of poles 17A (IEC) and 10A (UL)
• Orange in colour (additional colours available on request)
• Packaged in box
• Temperature range −50°C up to +100°C

The below table gives the specifications of the Weidmüller BL 3.50/180 PCB connector series:

Please see the relevant datasheet in the technical library for the exact specification
