Weidmüller LUFS 15.00/180V Series

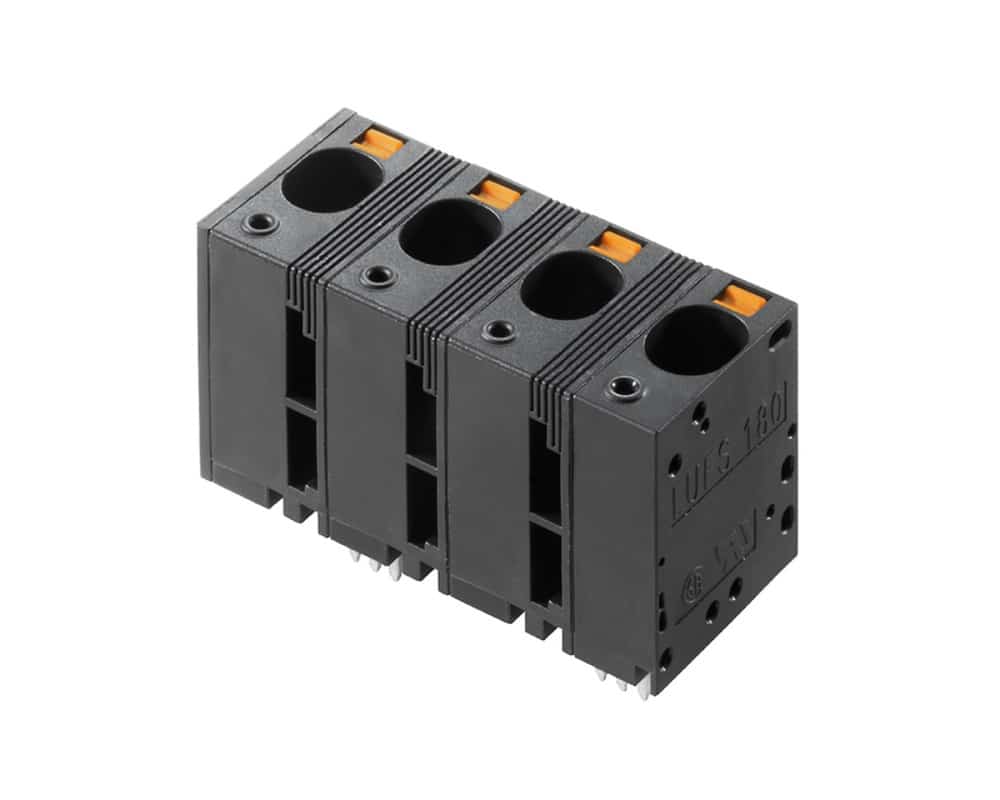

The LUFS 15.00/180V PCB terminal series from Weidmüller’s Omnimate power range, offers a spring connection with direct push in technology. Designed with a conductor outlet direction of 180° and a choice from 2 up to 8 poles and a 15mm pitch. The LUFS 15.00/180V series from Weidmüller have a fully automatic assembly using wave soldering (THT) and can be used with or without ferrules, with an operating temperature range of −40°C to +120°C .

• PCB terminal connector
• Through-hole technology with wave soldering
• Number of poles available from 2 to 8
• Solder pin length of 5mm
• Pitch of 15mm
• Conductor outlet direction of 180°
• Push in technology without actuator
• Wire connection cross section from AWG 18 to AWG 4
• CSA and UL 1059 approved, IEC listed

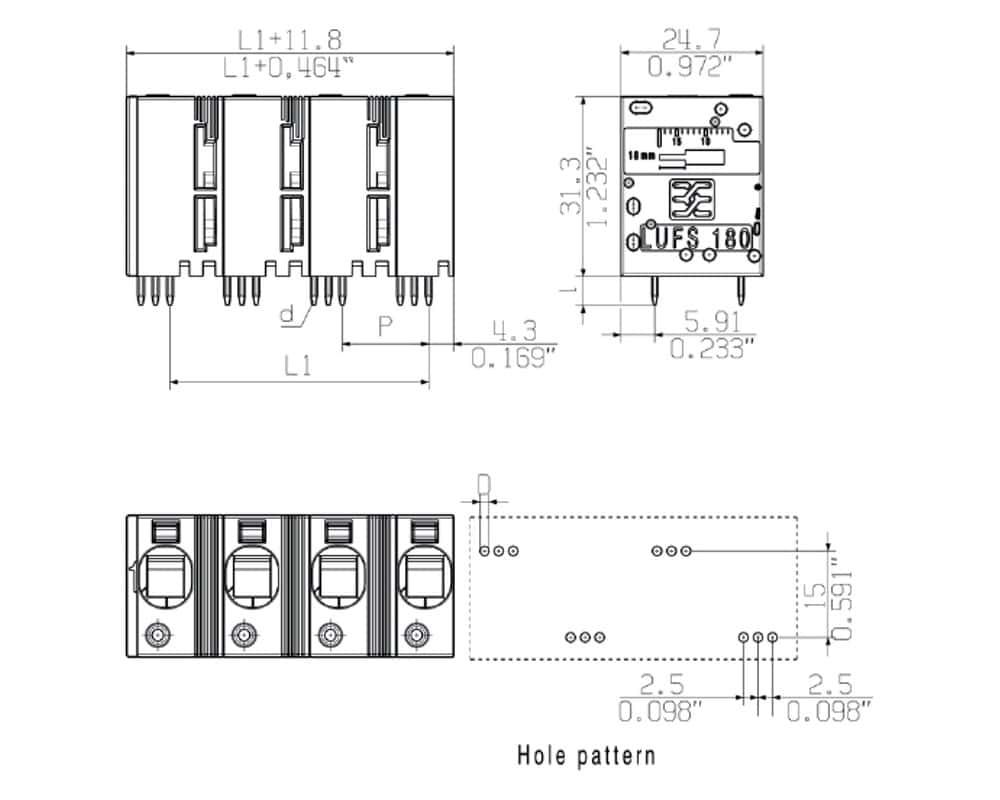

• Dimmensions for L1 from 15mm to 105mm depending on the number of poles required
• Rated current for minimum number of poles 76A (IEC) and 57A (UL)
• Black in colour (additional colours available on request)
• Packaged in box
• Temperature range −40°C to +120°C

The Sturdy, direct connection for extreme current and voltage requirements in all power electronics applications for the LUFS 15.00/180V series include:

• Solar inverters
• Frequency converters
• Servo-controllers
• Power supplies

The below table gives the specifications of the Weidmüller LUFS 15.00/180V PCB terminal series:

Please see the relevant datasheet in the technical library for the exact specification
