Weidmüller LLF 7.50/90V Series

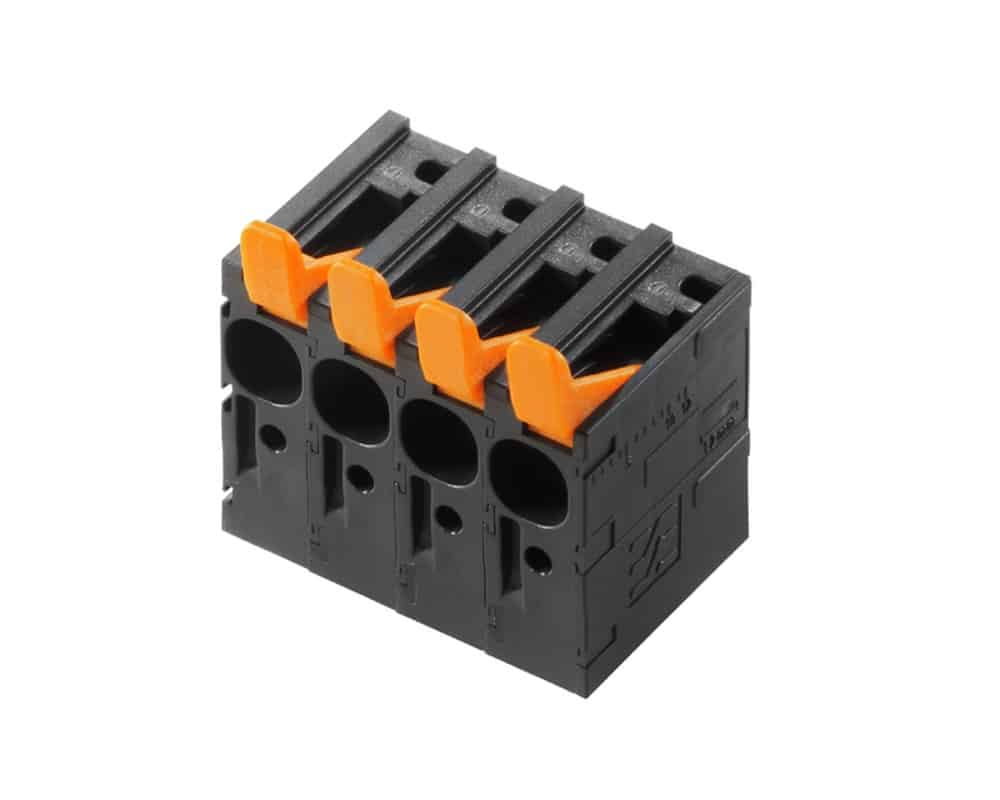

The LLF 7.50/90V PCB terminal series from Weidmüller’s Omnimate power range, offers a spring connection with direct push in technology and actuator. Designed with a conductor outlet direction of 90° and a choice from 2 up to 12 poles and a 7.5mm pitch. The LLF 7.50/90V series from Weidmüller have a fully automatic assembly using wave soldering (THT) and can be used with or without ferrules, with an operating temperature range of −40°C to +120°C .

• PCB terminal connector
• Through-hole technology with wave soldering
• Number of poles available from 2 to 12
• Solder pin length of 5mm
• Pitch of 7.5mm
• Conductor outlet direction of 90°
• Push in technology with actuator
• Wire connection cross section from AWG 24 to AWG 8
• CSA and UL 1059 approved, IEC listed

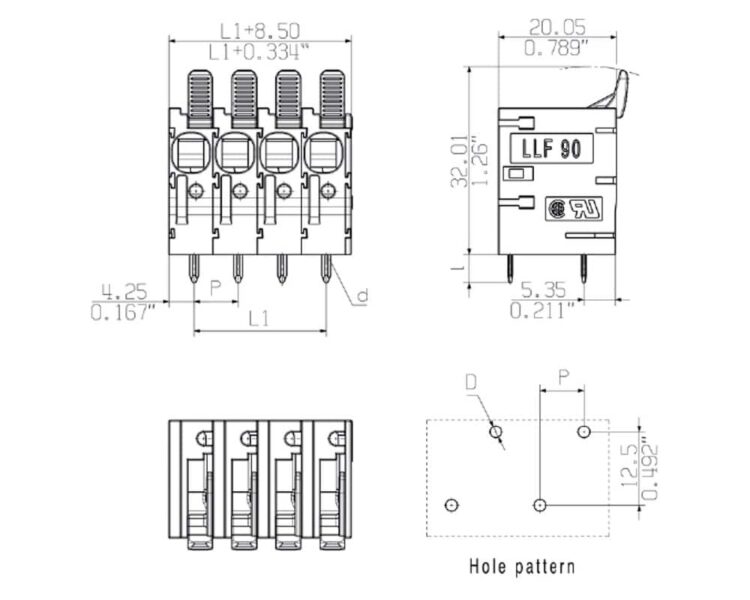

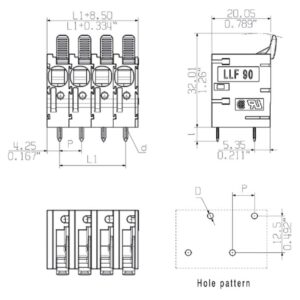

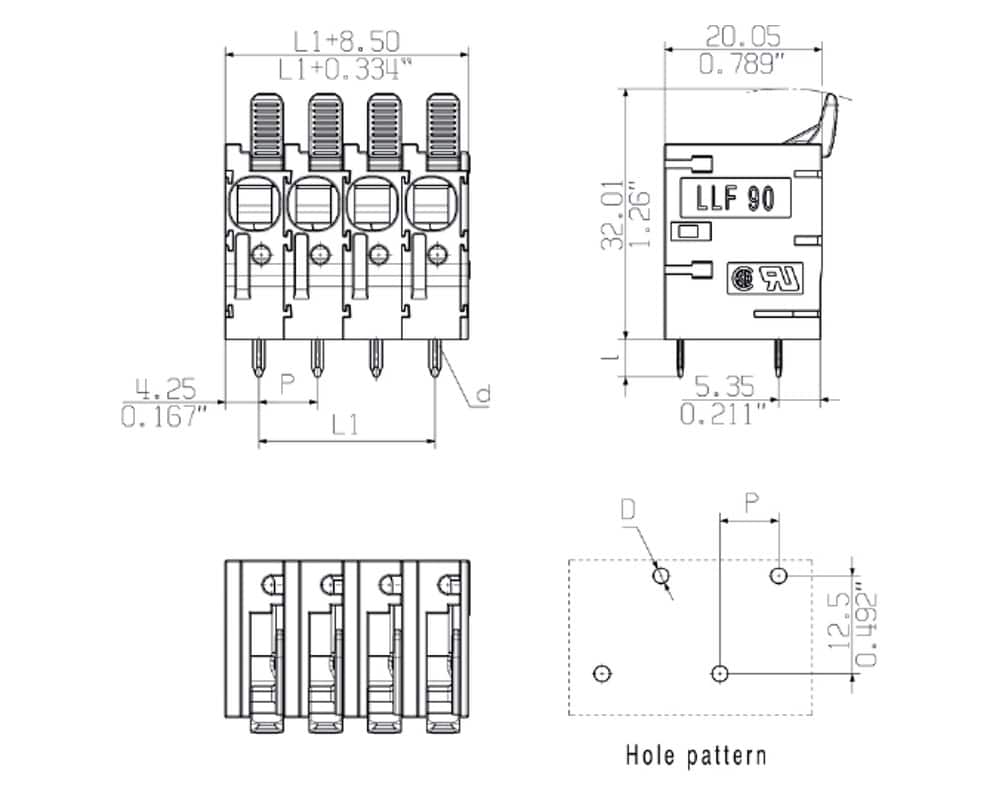

• Dimmensions for L1 from 7.5mm to 82.5mm depending on the number of poles required
• Rated current for minimum number of poles 41A (IEC) and 35A (UL)
• Black in colour (additional colours available on request)
• Packaged in box
• Temperature range −40°C to +120°C

Typical applications for the LLF 7.50/90V series include:

• Solar inverters
• Frequency converters
• Servo-controllers
• Power Supplies

The below table gives the specifications of the Weidmüller LLF 7.50/90V PCB terminal series:

Please see the relevant datasheet in the technical library for the exact specification
