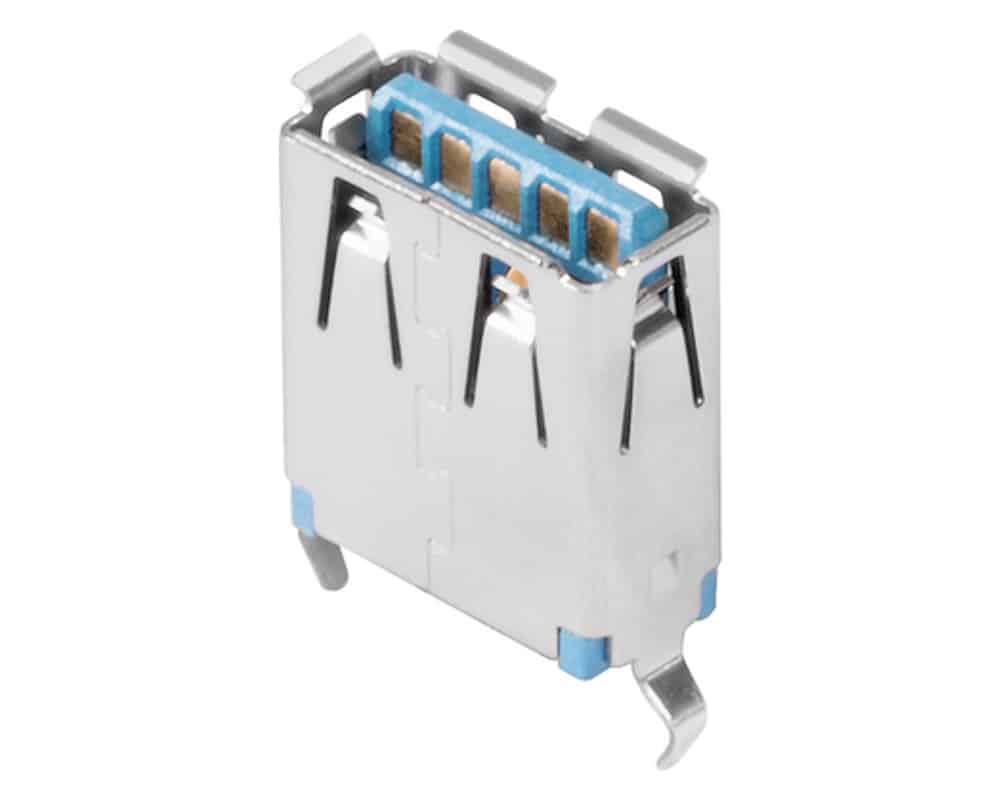

Weidmüller USB3.0A R1V 3.0N2 TY BL series

The USB3.0A R1V 3.0N2 TY BL PCB plug-in jack connectors from the Weidmüller Omnimate data range. Offers a universal serial bus 3.0 (super speed): Type A connectors meet the requirements for high resistance and provide reliable connectivity. The USB connector from Weidmüller features 8 poles with an outgoing elbow of 180° and with an operating temperature range of −40°C to +85°C.

• PCB plug-in USB Jack Connector
• Mounting onto PCB via through-hole technology (THT) solder connection
• Pitch 0.5mm
• Outgoing elbow of 180°
• Type A wiring, USB 3.0
• UL listed
• 8 poles
• Plugging cycles ≥1500
• Shielding
• Dielectric strength of ≥1000VAC and rated current 1.5A
• Temperature range −40°C to +85°C
• Solder pin length 3mm

The Weidmüller USB jacks are characterised by compactness and simplicity. Used predominantly in:

• Horizontal wiring
• Wiring workstations

The USB3.0A R1V 3.0N2 TY B connector system is part of the Omnimate Data range from Weidmüller, which are packed in a tray (TY) or on a roll (tape-on reel, RL) and the reinforced gold layer which is for improved corrosion protection.

For further information regarding the specifications, please see the datasheet on the Technical Library tab.
