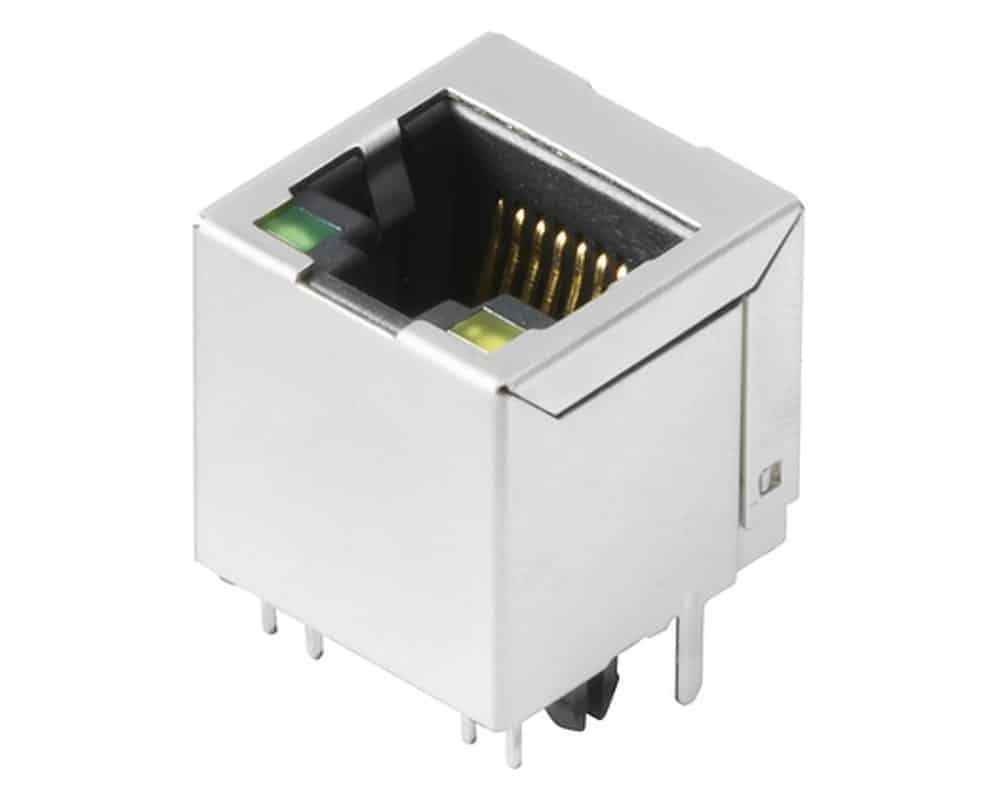

The RJ45C5 T1V 3.2N4G/Y TY connector from the Weidmüller Omnimate data range, offers a connector system with a twelve-pole miniature plug-in system for use in connections with STP and UTP cables. This Weidmüller RJ45 jack features an outgoing elbow of 180° with an extended temperature range of −40°C to +85°C and a solder pin length of 3.2mm.
The Weidmüller RJ45 jack series is characterised by its compactness and simplicity. It is used predominantly in:
For further information regarding the specifications, please see the datasheet on the Technical Library tab.
| Weight | 8.08300 kg |
|---|---|

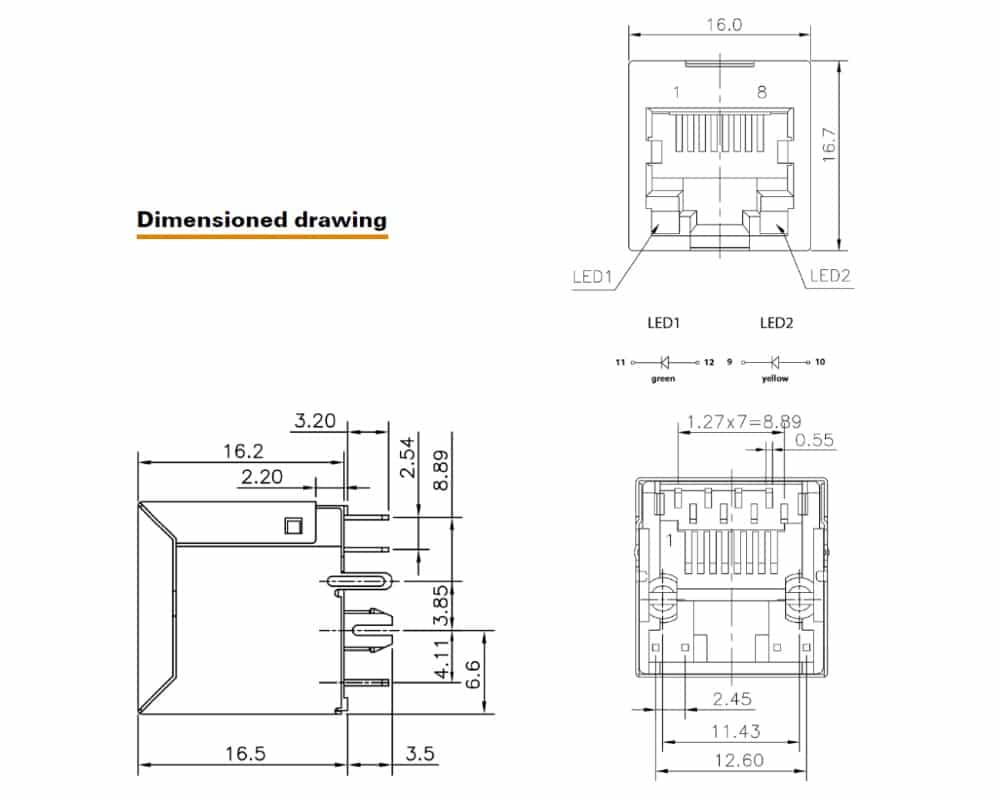

| Dimensions | 16.50 x 16.70 x 16.00mm |
| Conductor Outlet Direction | 180° |
| LED | 2 LEDs |
| Number of Poles | 12 |
| Plugging cycles | 750 |
| Series / Model | |
| Shielding | Nickel-plated |
This product is available fully compliant to the RoHS EU directive 2011/65/EU.
We are pleased to provide you with a range of additional content including videos, product datasheets, case studies, white papers and application notes for your reference. Please see below for the latest content available:
| DOCUMENTATION | |
|---|---|
| Weidmüller RJ45C5 T1V 3.2N4G/Y TY plug-in connector datasheet | |
