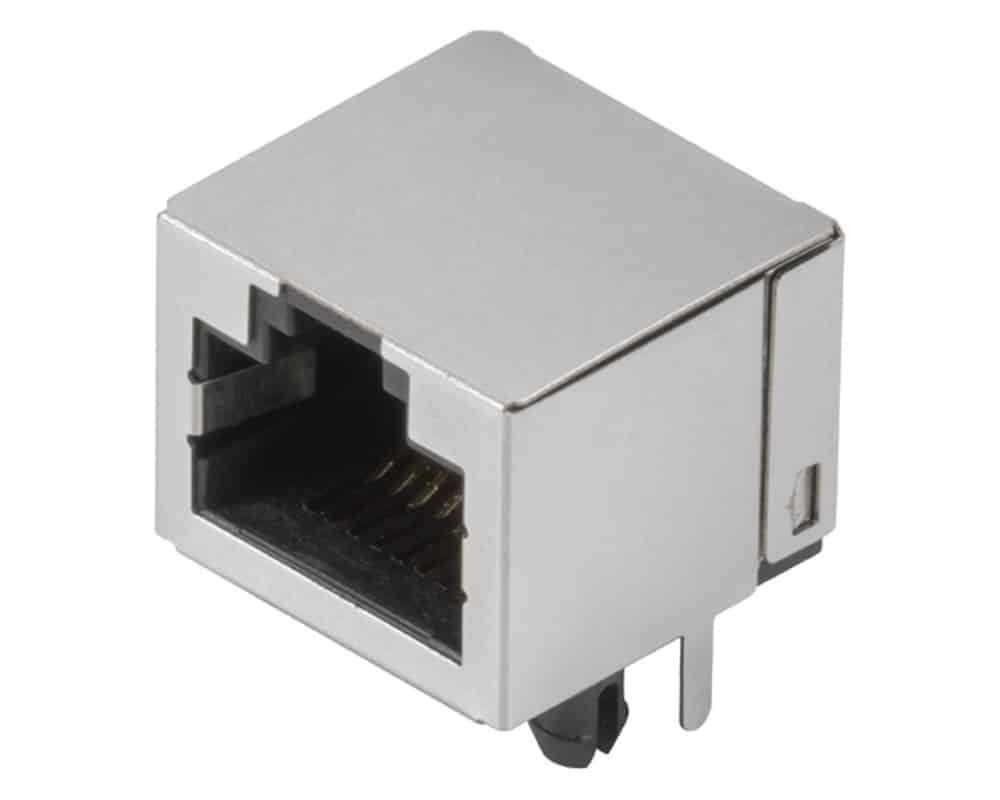

Weidmüller RJ45C5 T1U 2.8N4N TY

The RJ45C5 T1U 2.8N4N TY connector from the Weidmüller Omnimate data range, offers a connector system with an eight-pole miniature plug-in system for use in connections with STP and UTP cables. This Weidmüller RJ45 jack features an outgoing elbow of 90° with an extended temperature range of −40°C to +85°C and a solder pin length of 3.2mm.

• RJ45 jack
• Mounting onto PCB via through-hole (THT) solder connection
• Pitch of 1.27mm
• Outgoing elbow of 90°
• Shield surface being nickel-plated
• Plugging cycles of 750
• Approved by EAC and are UL listed
• 8 poles
• Solder pin length of 3.2mm
• Contact surface of gold over nickel
• Dielectric strength of ≥1000VDC and current rated at 1.5A
• Temperature range −40°C to +85°C

The Weidmüller RJ45 jack series is characterised by its compactness and simplicity. It is used predominantly in:

• Horizontal wiring
• Wiring workstations

For further information regarding the specifications, please see the datasheet on the Technical Library tab.
