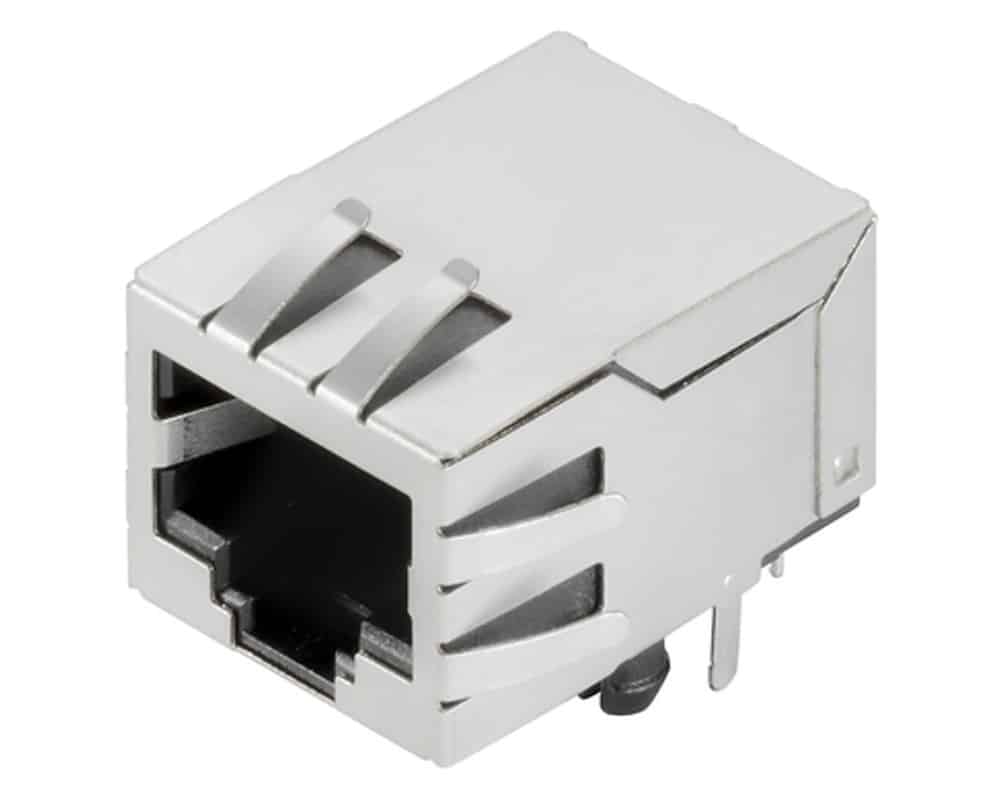

The RJ45C5 T1D 3.3E4N TY connector from the Weidmüller Omnimate data range, offers a plug-in connector system with an eight-pole miniature plug-in system for use in connections with STP and UTP cables. This RJ45 jack features an outgoing elbow of 90° with an extended temperature range of −40°C to +85°C and a solder pin length of 3.3mm.
The Weidmüller RJ45 jack series is characterised by its compactness and simplicity. It is used predominantly in:
For further information regarding the specifications, please see the datasheet on the Technical Library tab.
| Weight | 7.53300 kg |
|---|---|

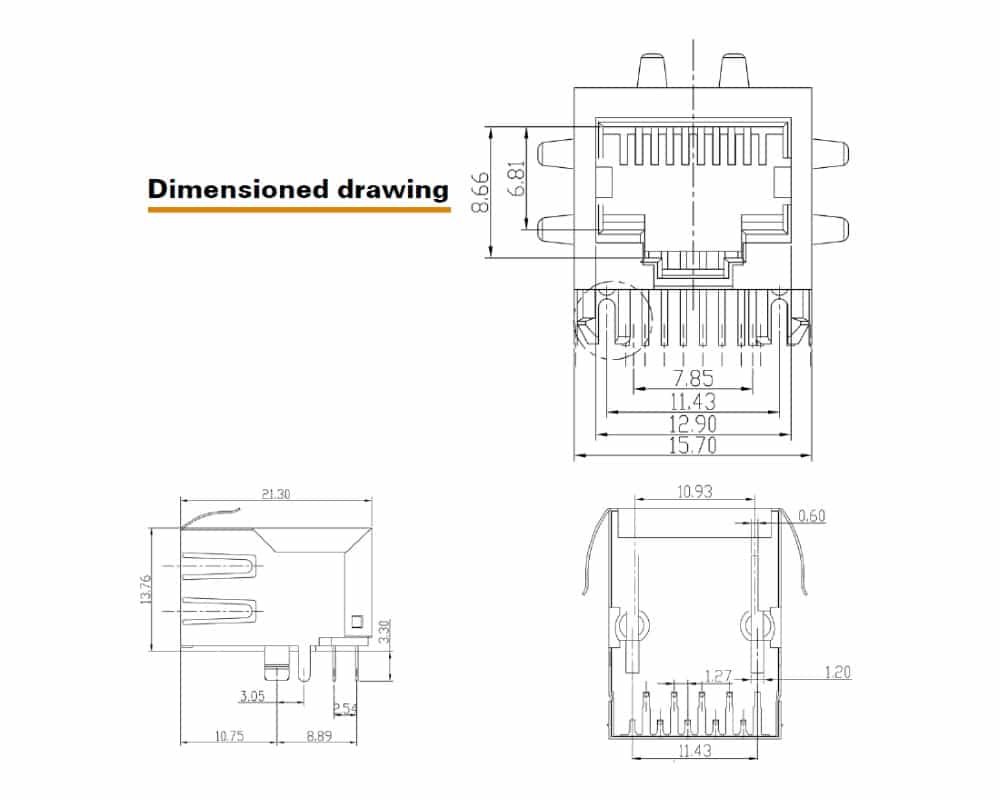

| Dimensions | 13.76 x 21.30 x 15.70mm |
| Conductor Outlet Direction | 90° |
| LED | No LEDs |
| Number of Poles | 8 |
| Plugging cycles | 750 |
| Series / Model | |
| Shielding | Nickel-plated |
This product is available fully compliant to the RoHS EU directive 2011/65/EU.
We are pleased to provide you with a range of additional content including videos, product datasheets, case studies, white papers and application notes for your reference. Please see below for the latest content available:
| DOCUMENTATION | |
|---|---|
| Weidmüller RJ45C5 T1D 3.3E4N TY plug-in connector datasheet | |
