Weidmüller RJ45M T12D 3.3E4G/Y RL series

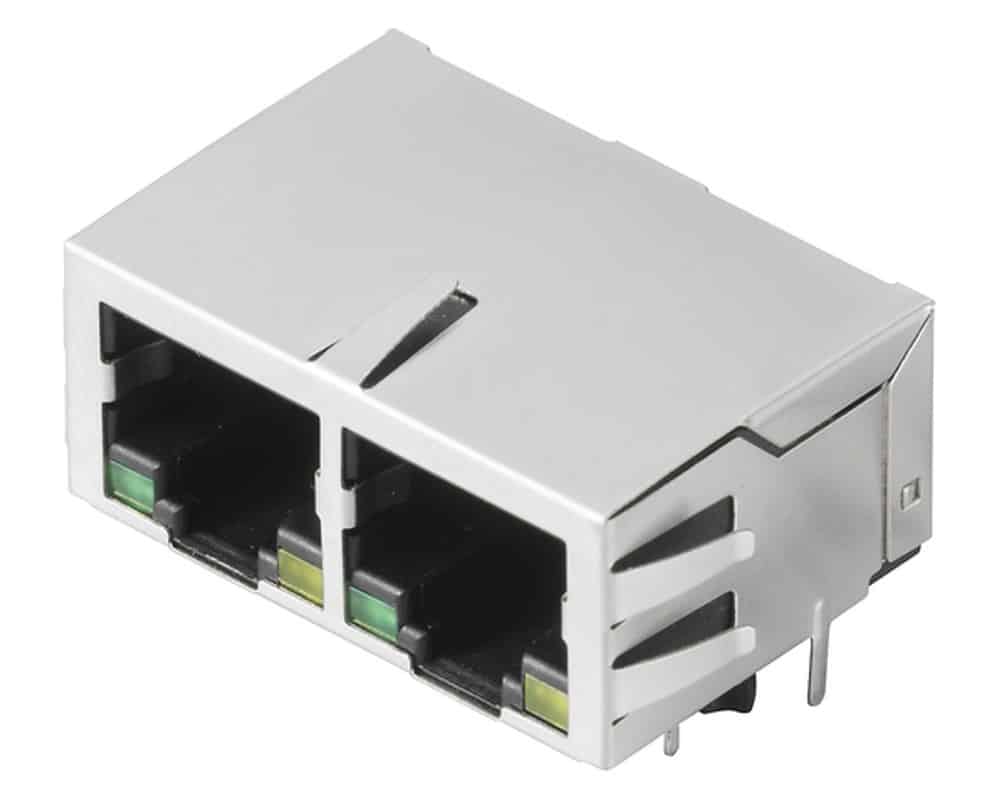

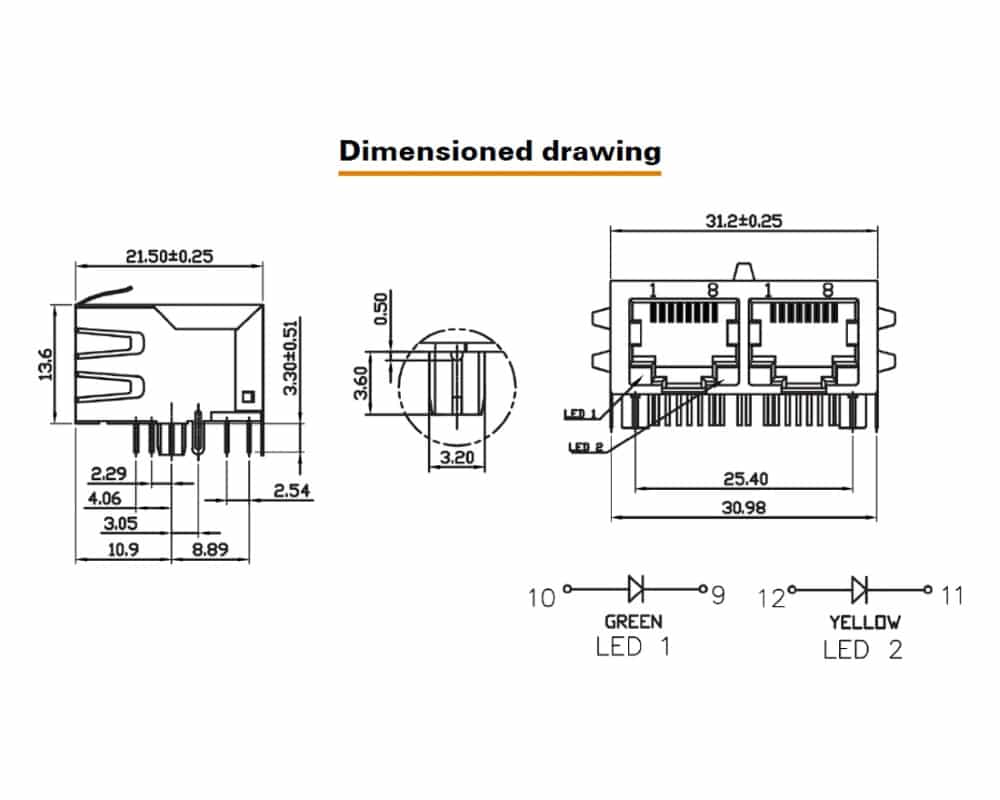

The RJ45M T12D 3.3E4G/Y RL jack with transformer from the Weidmüller Omnimate data range, offers twin magnetic transmitter sockets for gigabit applications (1000 base-T) with integrated compensation, which actively counteracts inductive and capacitive couplings and saves space on the PCB. The RJ45M T12D 3.3E4G/Y RL by Weidmüller features 8 poles with an outgoing elbow of 90° and extended temperature range of −40°C to +85°C.

• Through-hole RJ45 jack with transformer
• Mounting onto PCB via THR solder connection
• Transmission rate 10/100Mbit/s
• Outgoing elbow of 90°
• Shield surface being nickel-plated
• Twin port
• 4 LEDs with a yellow and green LED in each port
• EAC approved and UL listed
• 8 poles
• Contact surface of gold over nickel
• Dielectric strength of ≥1000VDC
• Temperature range −40°C to +85°C

The Weidmüller RJ45 jack series is characterised by its compactness and simplicity. It is used predominantly in:

• Horizontal wiring
• Wiring workstations

For further information regarding the specifications, please see the datasheet on the Technical Library tab.
