Weidmüller RJ45M R1V 3.3N4YG/YG TY series

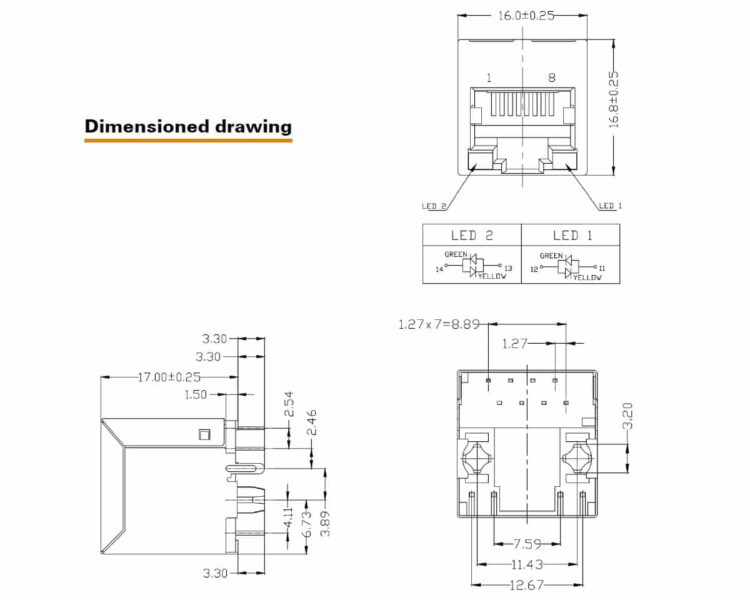

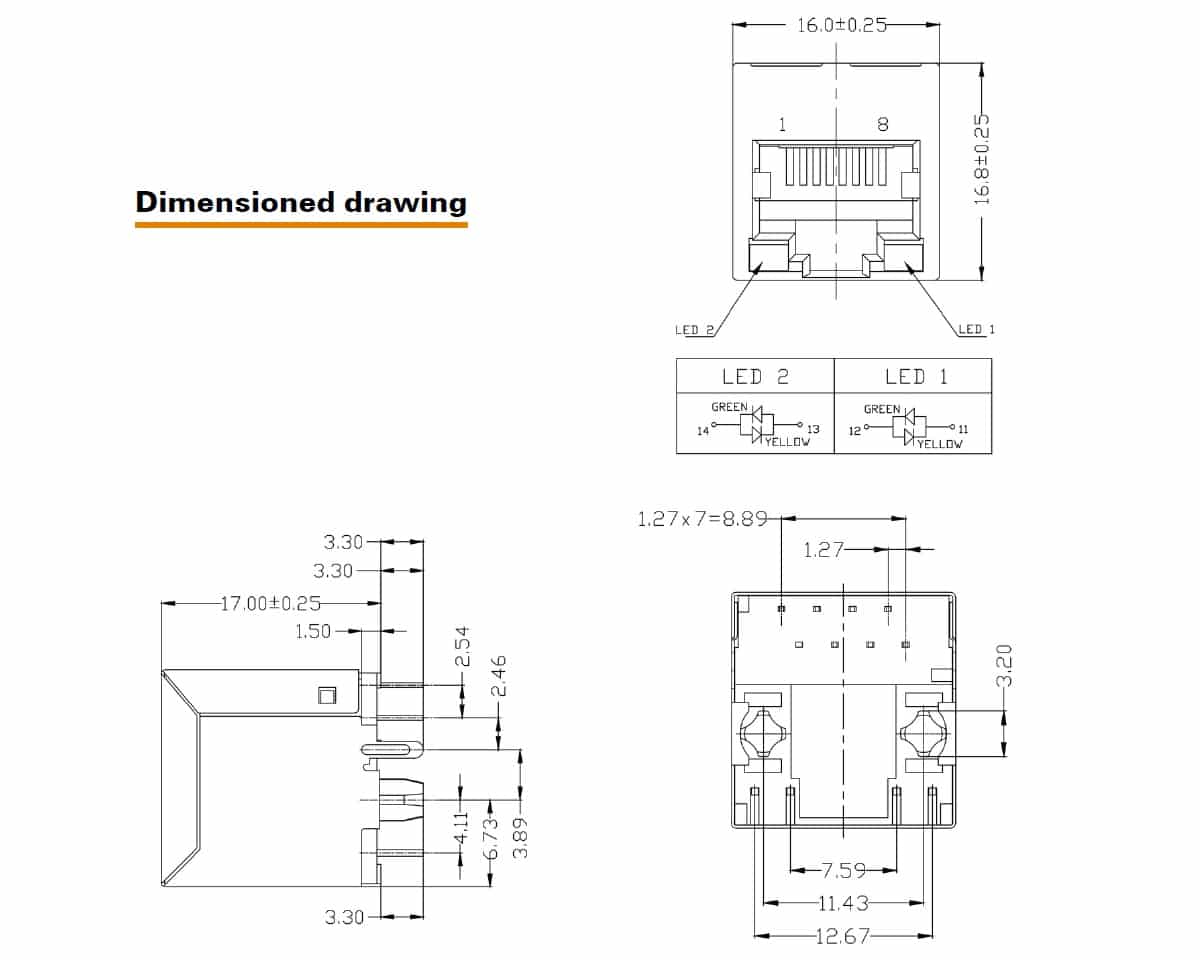

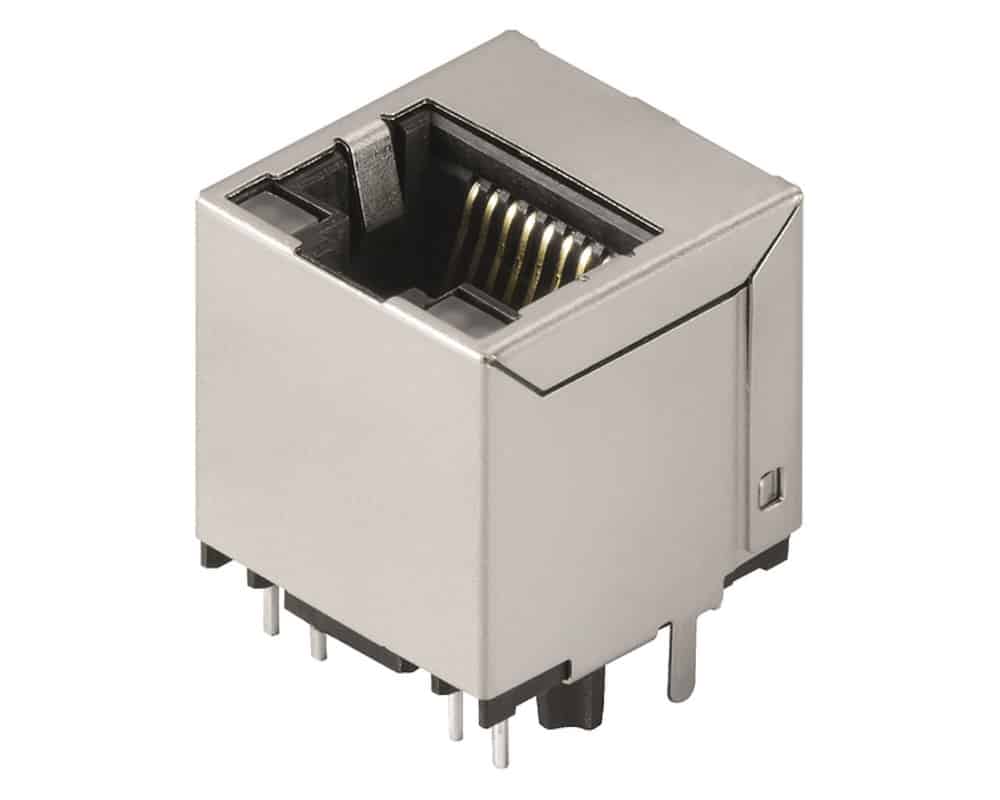

The RJ45M R1V 3.3N4YG/YG TY jack with transformer from the Weidmüller Omnimate data range, offers a magnetic transmitter socket for gigabit applications (1000 base-T) with integrated compensation, which actively counteracts inductive and capacitive couplings and saves space on the PCB. The RJ45 jack with transformer connector by Weidmüller feature 8 poles with an outgoing elbow of 180° and extended temperature range of −40°C to +85°C.

• Mounting onto PCB via through hole(THT) THR solder connection
• Transmission rate 10/100Mbit/s
• Outgoing elbow of 180°
• Shield surface being nickel-plated
• Socket connection
• 2 LEDs with yellow and green in each one
• Solder pin length of 3.2mm
• Approved by EAC and are UL listed
• 8 poles
• Contact surface of gold over nickel
• Dielectric strength of ≥1000VDC and rated current of 1.5A
• Temperature range −40°C to +85°C

The Weidmüller RJ45 jack series is characterised by its compactness and simplicity. It is used predominantly in:

• Horizontal wiring
• Wiring workstations

For further information regarding the specifications, please see the datasheet on the Technical Library tab.
