Weidmüller RJ45G1 R1V 3.3N4YG/YG TY series

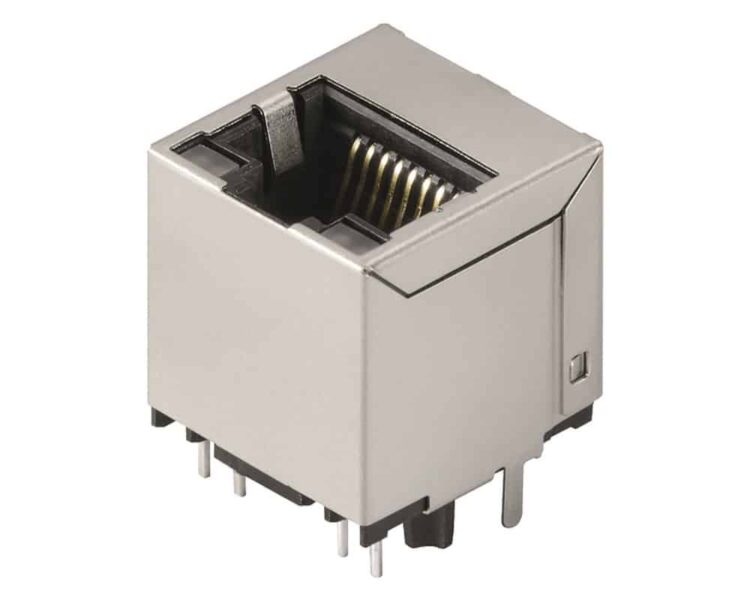

The RJ45G1 R1V 3.3N4YG/YG TY jack with transformer from the Weidmüller Omnimate data range, offers magnetic transmitter sockets for gigabit applications (1000 base-T) with integrated compensation, which actively counteracts inductive and capacitive couplings as well as saves space on the PCB. This RJ45 jack with transformer connector by Weidmüller features 10 poles with an outgoing elbow of 180° and extended temperature range of −40°C to +85°C.

• Mounting onto PCB via through-hole (THT) THR solder connection
• Transmission rate 1000MBit/s
• Outgoing elbow of 180°
• Shield surface being nickel-plated
• Socket connection
• 2 LEDs with yellow and green in each one
• Solder pin length of 3.2mm
• Approved by EAC and are UL listed
• 10 poles
• Contact surface of gold over nickel
• Dielectric strength of ≥1000VDC and rated current of 1.5A
• Temperature range −40°C to +85°C

The Weidmüller RJ45 jack series is characterised by its compactness and simplicity. It is used predominantly in:

• Horizontal wiring
• Wiring workstations

For further information regarding the specifications, please see the datasheet on the Technical Library tab.
