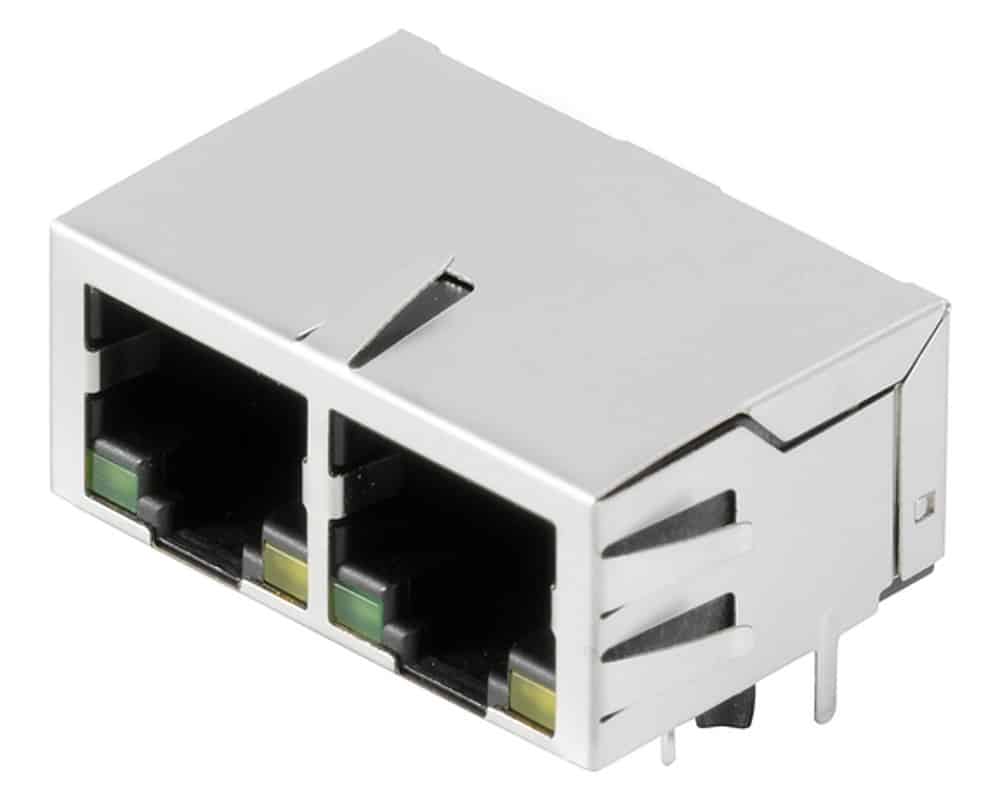

Weidmüller RJ45G1 R12D 3.3E4G/Y TY

Product Features

Through-hole RJ45 jack with transformer
750 plugging cycles
Gold over nickel contact surface
Twin port
Black in colour
Temperature range of −40°C to +85°C
EAC approved and UL listed

Any questions, contact us?

Why buy from Rhopoint?

Engineering Calculators

Application Notes

The RJ45G1 R12D 3.3E4G/Y TY jack with transformer from the Weidmüller Omnimate data range, offers twin magnetic transmitter sockets for gigabit applications (1000 base-T) with integrated compensation, which actively counteracts inductive and capacitive couplings as well as saves space on the PCB. This RJ45 twin jack with transformer connector by Weidmüller features 10 poles with an outgoing elbow of 90° and extended temperature range of −40°C to +85°C.

Through-hole RJ45 jack with transformer
Mounting onto PCB via THR solder connection
Transmission rate 1000MBit/s
Outgoing elbow of 90°
Shield surface being nickel-plated
Twin port
4 LEDs – with a yellow and green LED in each port
Approved by EAC and are UL listed
10 poles
Contact surface of gold over nickel
Dielectric strength of ≥1500VDC
Temperature range −40°C to +85°C

The Weidmüller RJ45 jack series is characterised by its compactness and simplicity. It is used predominantly in:

Horizontal wiring
Wiring workstations

For further information regarding the specifications, please see the datasheet on the Technical Library tab.

Specifications

Weight	7.00000 kg

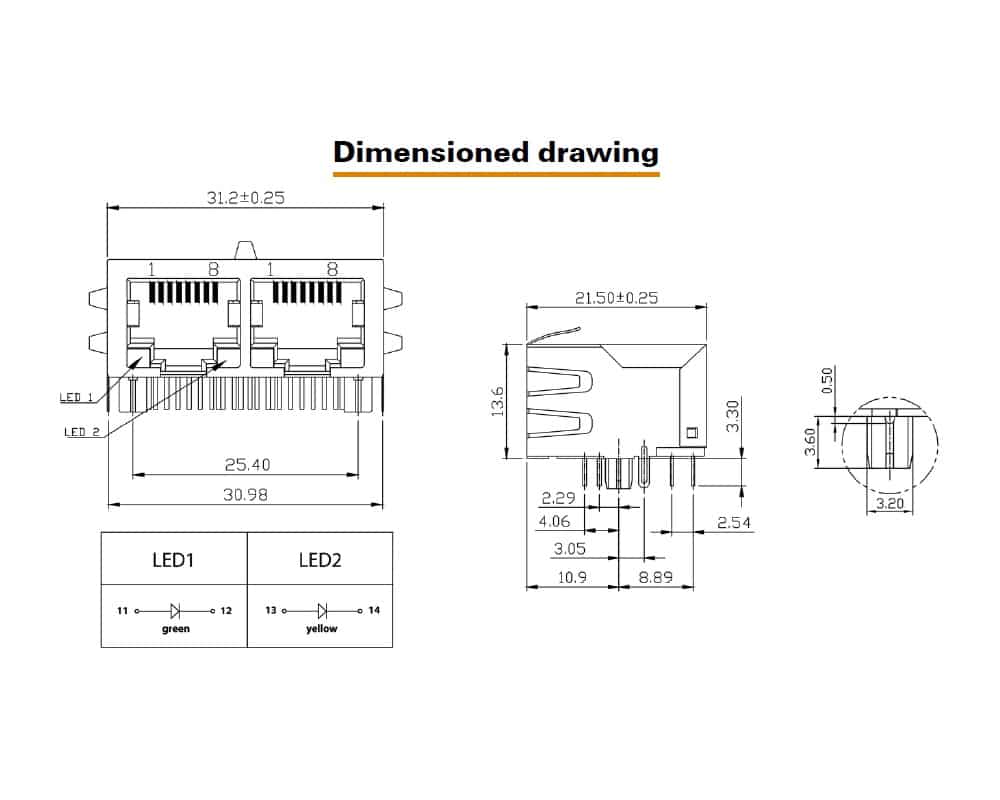

Dimensions	13.60 x 21.50 x 31.20mm
Conductor Outlet Direction	90°
LED	4 LEDs
Number of Poles	10
Series / Model	RJ45
Shielding	Nickel-plated
Transmission Rate	10/100/1000Mbps
