Ametherm ACW-006

Product Features

Precision interchangeable NTC thermistor

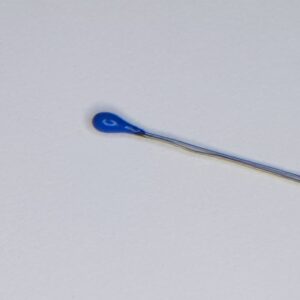

Blue coloured small bead design
Resistance of 50kΩ (at 25°C)
Tolerance of ±0.2°C
Maximum power rating of 250mW
Temperature range from -40°C to +150°C

Applications

The ACW-006 precision interchangeable NTC thermistor from Ametherm is part of their ACCU-CURVE™ series. The ACW-006 offer a high degree of accuracy and reliability with a resistance of 50kΩ at +25°C and a temperature tolerance of ±0.2°C between 0°C and +70°C. The Ametherm ACCU-CURVE™ series commonly perform temperature sensing, control and compensation for medical, industrial and automotive applications. The complete series offers interchangeability over a broad temperature range and eliminates the need to individually calibrate or provide circuit compensation for part variability.

Precision interchangeable NTC thermistor
Small bead design with 32AWG tinned copper leads
Resistance of 50kΩ (at 25°C)
Temperature tolerance of ±0.2°C between 0°C and +70°C
Resistance / temperature curve “W”
Dissipation constant of 1mW/°C (minimum)
Thermal time constant of 3.5s nominal
Beta value of 4143°K (0°C / 50°C)
Maximum power rating of 250mW
Blue colour code

Typical applications for the ACCU-CURVE™ series include:

Temperature sensing
Control systems
Compensation systems

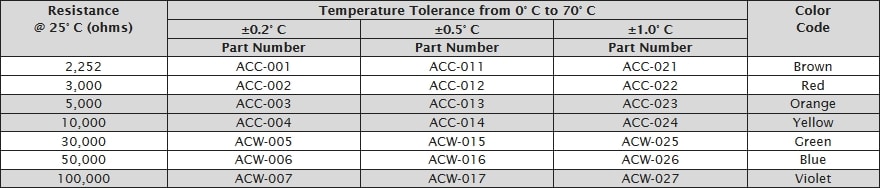

The below table gives the full specifications of the Ametherm ACCU-CURVE™ series including the ACW-006 thermistor:

Ametherm ACW-006

Add to Compare

Calculators and Convertors

Work out what you need for your project. Go to calculators and convertors

Specifications

Weight	0.00000 kg
Dimensions	0.00 x 0.00 x 0.00mm
Colour	Blue
Dissipation Constant	1mW/°C
Package / Size	Through-hole
Power Rating	0.25W
Product Type	Precision Interchangeable NTC Thermistor
Resistance at +25°C	50kΩ
Series / Model	ACx
Temperature Range (°C)	-40 to +150°C
Termination / Connection	32AWG Tinned Copper Leads
Thermal Time Constant	3.5s
Tolerance	±0.2°C

RoHS Compliant Product – Ametherm ACC & ACW Range

This product meets the requirements in compliance with RoHS Directive 2011/65/EU including Directive (EU) 2015/863, on the restriction of the use of Certain Hazardous Substances in Electrical and Electronic Equipment.
