Ametherm ACC-003

Product Features

Precision interchangeable NTC thermistor

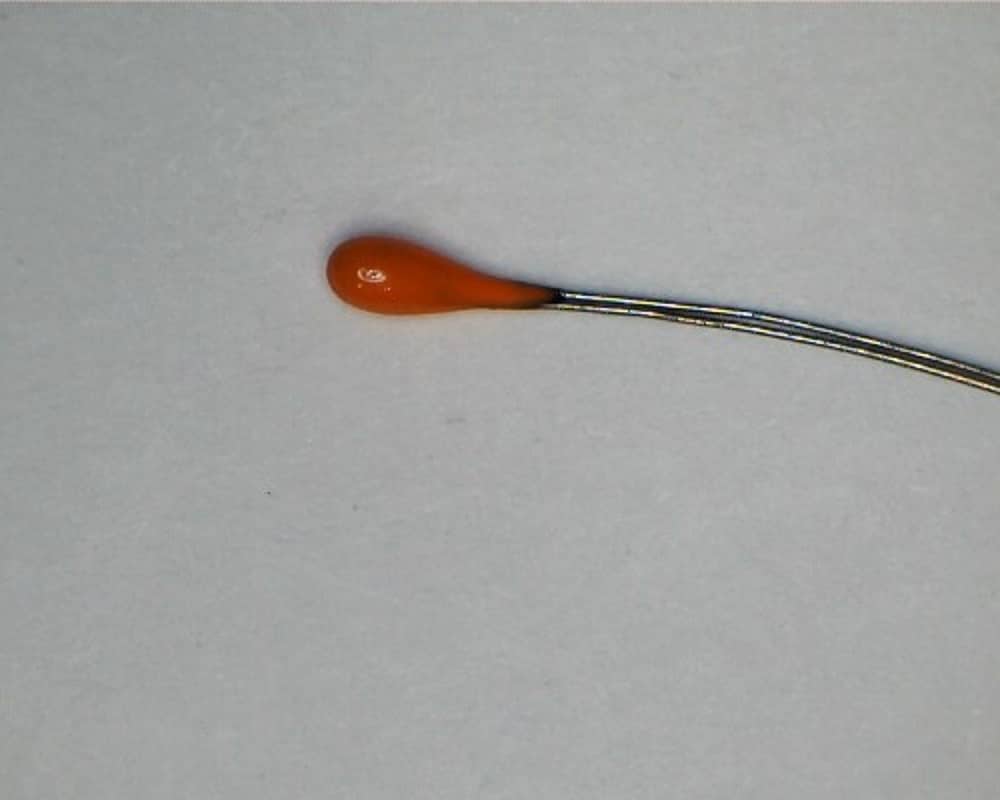

Orange coloured small bead design
Resistance of 5kΩ (at 25°C)
Tolerance of ±0.2°C
Maximum power rating of 250mW
Temperature range from -40°C to +150°C

Applications

The ACC-003 precision interchangeable NTC thermistor from Ametherm is part of their ACCU-CURVE™ series. The ACC-003 offer a high degree of accuracy and reliability with a resistance of 5kΩ at +25°C and a temperature tolerance of ±0.2°C between 0°C and +70°C. The Ametherm ACCU-CURVE™ series commonly perform temperature sensing, control and compensation for medical, industrial and automotive applications. The complete series offers interchangeability over a broad temperature range and eliminates the need to individually calibrate or provide circuit compensation for part variability.

Precision interchangeable NTC thermistor

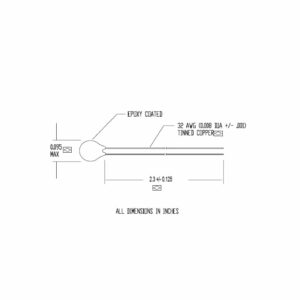

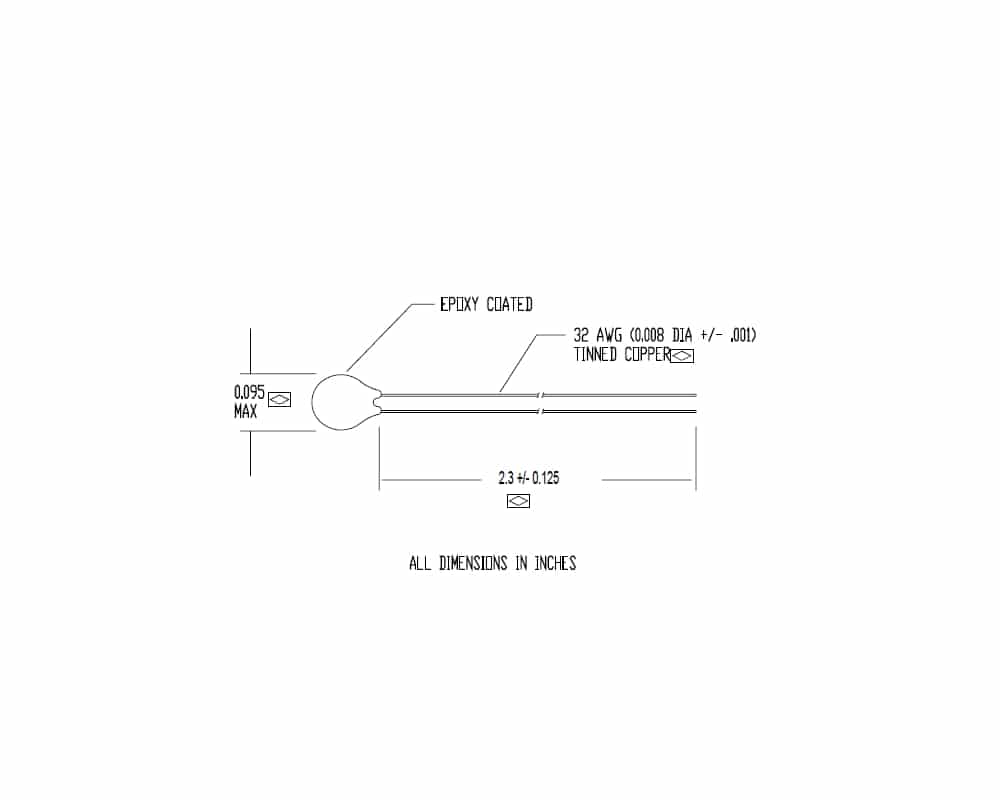

Small bead design with 32AWG tinned copper leads
Resistance of 5kΩ (at 25°C)
Temperature tolerance of ±0.2°C between 0°C and +70°C
Resistance / temperature curve “C”
Dissipation constant of 1mW/°C (minimum)
Thermal time constant of 3.5s nominal
Beta value of 3892°K (0°C / 50°C)
Maximum power rating of 250mW
Orange colour code

Typical applications for the ACCU-CURVE™ series include:

Temperature sensing
Control systems
Compensation systems

The below table gives the full specifications of the Ametherm ACCU-CURVE™ series including the ACC-003 thermistor:

Ametherm ACC-003

Add to Compare

Calculators and Convertors

Work out what you need for your project. Go to calculators and convertors

Specifications

Weight	0.00000 kg
Dimensions	0.00 x 0.00 x 0.00mm
Colour	Orange
Dissipation Constant	1mW/°C
Package / Size	Through-hole
Power Rating	0.25W
Product Type	Precision Interchangeable NTC Thermistor
Resistance at +25°C	5kΩ
Series / Model	ACx
Temperature Range (°C)	-40 to +150°C
Termination / Connection	32AWG Tinned Copper Leads
Thermal Time Constant	3.5s
Tolerance	±0.2°C

RoHS Compliant Product – Ametherm ACC & ACW Range

This product meets the requirements in compliance with RoHS Directive 2011/65/EU including Directive (EU) 2015/863, on the restriction of the use of Certain Hazardous Substances in Electrical and Electronic Equipment.

Ametherm ACC-003 Technical Library

We are pleased to provide you with a range of additional content including videos, product datasheets, case studies, white papers and application notes for your reference. Please see below for the latest content available:

DOCUMENTATION
	Ametherm ACC-003 ACCU-CURVE™ precision interchangeable NTC thermistor datasheet

Ametherm ACC and ACW Videos

We are pleased to provide you with a range of videos, please see below for the latest content available:

VIDEOS
	Resistor Stability Put to the Test (Demo Video) In this video, our host Richard Zuratt puts the stability of the three major resistor technologies — foil, thin, and thick film — to the test. Each resistor type is subjected to an overload pulse and its change in resistance value is recorded. Due to the homogeneous nature of the VPG Bulk Metal® Foil resistor, it is the only of the three to experience no change from the high power pulse. This demonstrated performance makes foil resistors the technology of choice for critical applications where long-term stability and survivability are paramount.
	5 Thermistor Sensor Considerations When Selecting A short video to help with selecting the right NTC thermistor.
	ACCU-CURVE™ Precision Interchangeable Thermistors ACCU-CURVE™ precision thermistors offer interchangeability over a broad temperature range and eliminate the need to individually calibrate or provide circuit compensation for part variability. These NTC thermistors are used in many applications that require a high degree of accuracy and reliability. They commonly perform temperature sensing, control, and compensation for medical, industrial, and automotive applications. Interchangeable ACCU-CURVE NTC thermistors are usually selected when a high degree of measurement accuracy is required over a wide temperature range.

VIDEOS

Resistor Stability Put to the Test (Demo Video)

In this video, our host Richard Zuratt puts the stability of the three major resistor technologies — foil, thin, and thick film — to the test. Each resistor type is subjected to an overload pulse and its change in resistance value is recorded. Due to the homogeneous nature of the VPG Bulk Metal® Foil resistor, it is the only of the three to experience no change from the high power pulse. This demonstrated performance makes foil resistors the technology of choice for critical applications where long-term stability and survivability are paramount.

5 Thermistor Sensor Considerations When Selecting

A short video to help with selecting the right NTC thermistor.

ACCU-CURVE™ Precision Interchangeable Thermistors

ACCU-CURVE™ precision thermistors offer interchangeability over a broad temperature range and eliminate the need to individually calibrate or provide circuit compensation for part variability.

These NTC thermistors are used in many applications that require a high degree of accuracy and reliability. They commonly perform temperature sensing, control, and compensation for medical, industrial, and automotive applications.

Interchangeable ACCU-CURVE NTC thermistors are usually selected when a high degree of measurement accuracy is required over a wide temperature range.

VIDEOS

NTC Thermistor Overview in 60 Seconds In this overview of NTC thermistors, Ametherm look at the different kinds and application uses for temperature sensing and how NTC thermistors accurately measure and compensate for temperature. This video will start by looking at the different types of NTC thermistors, such as probe assembly thermistors, disc and chip thermistors, and customizable thermistors. The different thermistor attributes will be examined, including voltage/current and resistance versus temperature.

5 Thermistor Sensor Considerations When Selecting A short video to help with selecting the right NTC thermistor.

ACCU-CURVE™ Precision Interchangeable Thermistors ACCU-CURVE™ precision thermistors offer interchangeability over a broad temperature range and eliminate the need to individually calibrate or provide circuit compensation for part variability. These NTC thermistors are used in many applications that require a high degree of accuracy and reliability. They commonly perform temperature sensing, control, and compensation for medical, industrial, and automotive applications. Interchangeable ACCU-CURVE NTC thermistors are usually selected when a high degree of measurement accuracy is required over a wide temperature range.
