Ametherm SL32 2R025

Product Features

  • Inrush current limiting thermistor
  • Resistance of 2Ω (at 25°C)
  • Maximum steady state current of 25A
  • Maximum recommended energy of 300J
  • Voltage ratings of 120VAC and 240VAC
  • Body temperature of +236°C at maximum current
  • Exempt

The SL32 2R025 inrush current limiting thermistor from Ametherm offers a maximum steady state current of 25A (up to +25°C), resistance of 2Ω ±20% (at 25°C) and a maximum recommended energy rating of 300J. The Ametherm SL series suppresses surge currents that occur when electrical circuits are switched on, preventing serious damage to sensitive electronic components if their rated current values are exceeded. Connected in series with the load, at “switch-on” they limit the current due to its relatively high cold resistance. As a result of current flow, the thermistor self-heats and in turn reducing its resistance value so that once the initial surge current has been safely held off, the resistance in the thermistor is maintained at a low value to maximise efficiency

  • Inrush current limiting thermistor
  • Resistance of 2Ω (at 25°C)
  • Maximum steady state current of 25A (up to +25°C)
  • Maximum recommended energy of 300J
  • Voltage ratings of 120VAC and 240VAC
  • Actual energy failure at 548J
  • 0.02Ω at 100% maximum current and 0.06Ω at 50% maximum current
  • Body temperature of +236°C at maximum current
  • Material type G (for beta and curve)
  • Dissipation constant of 45.4mW/°C
  • Tolerance ±20%
  • Thermal time constant of 194mW/s
  • Recognised by Canadian Standards Association (CSA)



Typical applications for the SL series include:

  • Limit current inrush to PSUs and battery chargers
  • Lighting circuits and thermostat protection
  • Electric motor soft start

The below table gives the full specifications of the Ametherm SL32 2R025 series:

Ametherm SL32 2R025 Specifications

Specifications

Weight 0.00000 kg

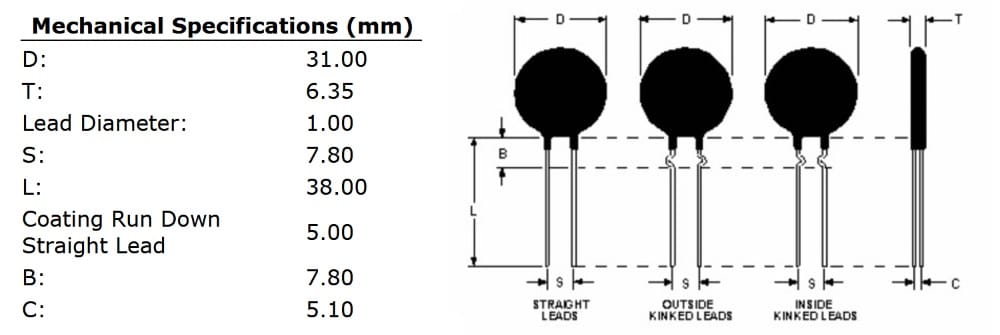

Dimensions 38.80 x 6.35 x 31.00mm
Actual Energy Failure

548J

Dissipation Constant

45.4mW/°C

Material Type

Maximum Steady State Current

25A

Package / Size

Resistance at +25°C

Series / Model

,

Thermal Time Constant

194mW/s

Tolerance

Voltage Rating

,
