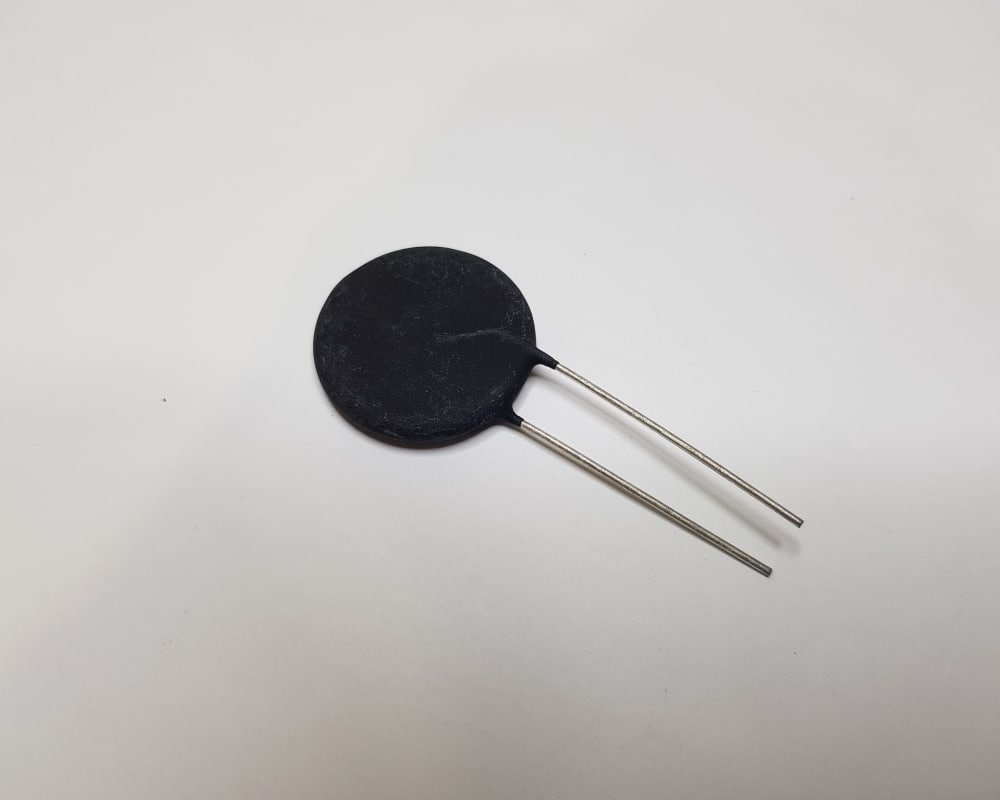

Ametherm SL32 1R030

The SL32 1R030 inrush current limiting thermistor from Ametherm offers a maximum steady state current of 30A (up to +25°C), resistance of 1Ω ±20% (at 25°C) and a maximum recommended energy rating of 160J. The Ametherm SL series suppresses surge currents that occur when electrical circuits are switched on, preventing serious damage to sensitive electronic components if their rated current values are exceeded. Connected in series with the load, at “switch-on” they limit the current due to its relatively high cold resistance. As a result of current flow, the thermistor self-heats and in turn reducing its resistance value so that once the initial surge current has been safely held off, the resistance in the thermistor is maintained at a low value to maximise efficiency

• Inrush current limiting thermistor
• Resistance of 1Ω (at 25°C)
• Maximum steady state current of 30A (up to +25°C)
• Maximum recommended energy of 160J
• Voltage ratings of 120VAC and 240VAC
• Actual energy failure at 270J
• 0.01Ω at 100% maximum current and 0.05Ω at 50% maximum current
• Body temperature of +214°C at maximum current
• Material type C (for beta and curve)
• Dissipation constant of 45.4mW/°C
• Tolerance ±20%
• Thermal time constant of 245mW/s
• Recognised by Canadian Standards Association (CSA) and Underwriters Laboratories (UL) for ensured safety

Typical applications for the SL series include:

• Limit current inrush to PSUs and battery chargers
• Lighting circuits and thermostat protection
• Electric motor soft start

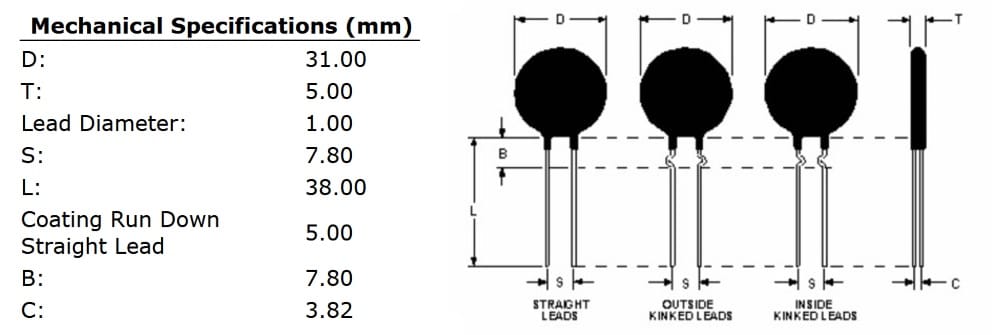

The below table gives the full specifications of the Ametherm SL32 1R030 series:
