Ametherm SL22 14007

The SL22 14007 inrush current limiting thermistor from Ametherm offers a maximum steady state current of 7A (up to +25°C), resistance of 14Ω ±20% (at 25°C) and a maximum recommended energy rating of 75J. The Ametherm SL series suppresses surge currents that occur when electrical circuits are switched on, preventing serious damage to sensitive electronic components if their rated current values are exceeded. Connected in series with the load, at “switch-on” they limit the current due to its relatively high cold resistance. As a result of current flow, the thermistor self-heats and in turn reducing its resistance value so that once the initial surge current has been safely held off, the resistance in the thermistor is maintained at a low value to maximise efficiency

• Inrush current limiting thermistor
• Resistance of 14Ω (at 25°C)
• Maximum steady state current of 7A (up to +25°C)
• Maximum recommended energy of 75J
• Voltage ratings of 120VAC and 240VAC
• Actual energy failure at 190J
• 0.12Ω at 100% maximum current and 2.9Ω at 50% maximum current
• Body temperature of +197°C at maximum current
• Dissipation constant of 48.4mW/°C
• Tolerance ±20%
• Thermal time constant of 144mW/s
• Material Type H (for Beta and Curve)
• Recognised by Underwriters Laboratories (UL) and Canadian Standards Association (CSA) for ensured safety

Typical applications for the SL series include:

• Limit current inrush to PSUs and battery chargers
• Lighting circuits and thermostat protection
• Electric motor soft start

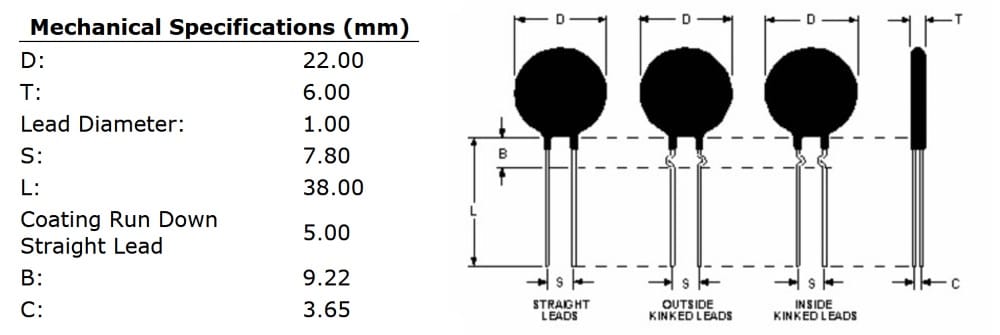

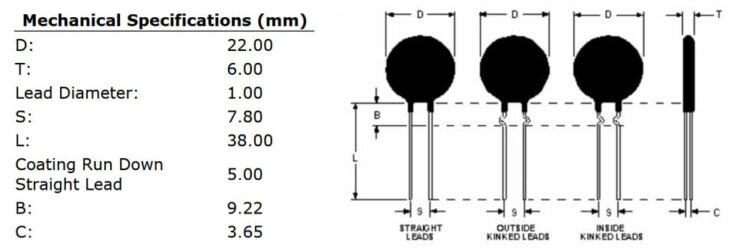

The below table gives the full specifications of the Ametherm SL22 14007 series:
