Ametherm AS35 10018

  • Ametherm

Product Features

  • Inrush current limiting thermistor
  • Resistance of 10Ω ±25% (at 25°C)
  • Maximum steady state current of 18A
  • Maximum recommended energy of 500J
  • Body temperature of +220°C at maximum current
  • Maximum disc diameter 36mm

Applications

  • Exempt

The AS35 10018 inrush current limiting thermistor from Ametherm offers a maximum steady state current of 18A (up to +65°C) and a resistance of 10Ω ±25% (at 25°C). The Ametherm AS series are designed to withstand high steady-state current and input energy. Compared to traditional inrush current limiters, the devices offer lower current density, faster reset times, and a wider temperature range without derating. This lower current density, in combination with a uniform temperature gradient throughout the disc, increases reliability by eliminating hot spots from fatigue. The AS series from Ametherm are suitable for high energy and short term high current applications.

  • Inrush current limiting thermistor
  • Resistance of 10Ω ±25% (at 25°C)
  • Maximum steady state current of 18A (up to +65°C)
  • Maximum recommended energy of 500J
  • Actual energy failure at 1000J
  • 0.00Ω at 100% maximum current and 0.1Ω at 50% maximum current
  • Body temperature of +220°C at maximum current
  • Material type G (for beta and curve)
  • Tolerance ±25%
  • Dissipation constant of 78.2mW/°C
  • Thermal time constant of 55s



Typical applications for the AS series include:

  • Protection of pre-charge circuits in lithium ion batteries
  • Variable-frequency drives in sports equipment like treadmills, high-speed computers and processors
  • Switch mode power supplies for plasma cutters, welders, audio amplifiers, MRIs and x-ray machines

The below table gives the full specifications of the Ametherm AS35 10018 series:

Ametherm AS35 10018 Specifications

Ametherm AS35 10018

Quantity
Calculators and Convertors

Work out what you need for your project. Go to calculators and convertors

Contact us if you need your items quicker or need more than in stock.

Specifications

Weight 0.00000 kg

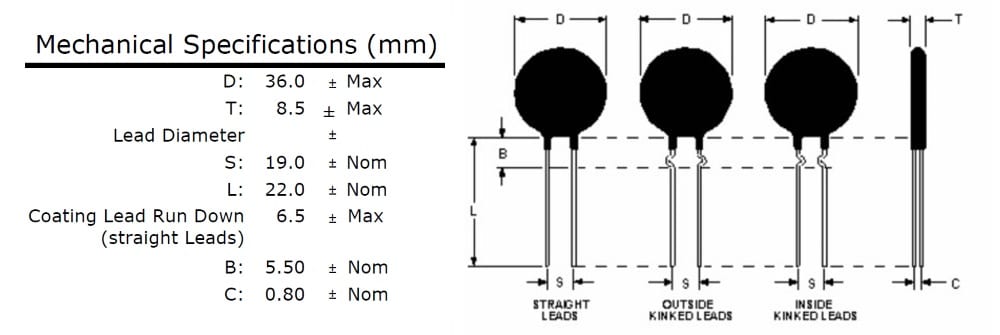

Dimensions 41.50 x 8.50 x 36.00mm
Actual Energy Failure

500J

Dissipation Constant

78.2mW/°C

Material Type

Maximum Steady State Current

18A

Package / Size

Resistance at +25°C

10Ω

Series / Model

,

Thermal Time Constant

55mW/s

Tolerance

RoHS Compliant Product with Exemption – Ametherm

This product meets the requirements in compliance with RoHS Directive 2011/65/EU including Directive (EU) 2015/863 amending Annex II, on the restriction of the use of Certain Hazardous Substances in Electrical and Electronic Equipment.

The above product is, however, is not Pb free, using exemption 7(a) “Lead in high melting temperature type solders (i.e. lead-based alloys containing 85% by weight or more lead)

Ametherm AS35 10018 Technical Library

We are pleased to provide you with a range of additional content including videos, product datasheets, case studies, white papers and application notes for your reference. Please see below for the latest content available:





DOCUMENTATION
Ametherm AS35 10018 inrush current limiting thermistor datasheet

Ametherm AS, MS and SL Videos

We are pleased to provide you with a range of videos, please see below for the latest content available:





VIDEOS
Place holder video for YouTube video Limiting Inrush Current with NTC and PTC Themistors video

Learn how to limit inrush current using NTC and PTC thermistors in this presentation by Ametherm.

Many applications today, including industrial machinery, power tools and other high current equipment, use limiting inrush current as a major design consideration to combat the problematic effects of inrush current.

Inrush current occurs when a system powers on and experiences a spike in current. This current can be substantially higher than standard operating current. If not properly managed, it can reduce the effective operating life and impose damage to equipment. For example, inrush current could disable a cooling fan, eventually leading to total system failure.

Applications that are switched on and off quickly, such as welding equipment, present a particular concern for limiting inrush current. The limiting inrush current circuit must reset instantaneously during each power on to protect the system. This further complicates the management of inrush current.

Place holder video for YouTube video Limiting Inrush Current for a 40VA Transformer

Inrush current often causes problems for transformers. This video will show you how to calculate the right inrush current limiter for your transformer in 7 simple steps.

Place holder video for YouTube video DC Motor Inrush Current and What You Need to Know

What does inrush current have to do with DC motors? This video answers that question by discussing the cause of DC motor inrush current and how to prevent the inrush of current at startup from possibly damaging the DC motor with the use of Ametherm's Inrush Current Limiters. They start by explaining how a DC motor functions, its applications and key components, how inrush current factors in, how to solve the problem of inrush current, and how to select the right inrush current limiter for your application with three easy steps.

VIDEOS
Place holder video for YouTube video
Limiting Inrush Current with NTC and PTC Themistors video

Learn how to limit inrush current using NTC and PTC thermistors in this presentation by Ametherm.

Many applications today, including industrial machinery, power tools and other high current equipment, use limiting inrush current as a major design consideration to combat the problematic effects of inrush current.

Inrush current occurs when a system powers on and experiences a spike in current. This current can be substantially higher than standard operating current. If not properly managed, it can reduce the effective operating life and impose damage to equipment. For example, inrush current could disable a cooling fan, eventually leading to total system failure.

Applications that are switched on and off quickly, such as welding equipment, present a particular concern for limiting inrush current. The limiting inrush current circuit must reset instantaneously during each power on to protect the system. This further complicates the management of inrush current.

Place holder video for YouTube video
Limiting Inrush Current for a 40VA Transformer

Inrush current often causes problems for transformers. This video will show you how to calculate the right inrush current limiter for your transformer in 7 simple steps.

Place holder video for YouTube video
DC Motor Inrush Current and What You Need to Know

What does inrush current have to do with DC motors? This video answers that question by discussing the cause of DC motor inrush current and how to prevent the inrush of current at startup from possibly damaging the DC motor with the use of Ametherm's Inrush Current Limiters. They start by explaining how a DC motor functions, its applications and key components, how inrush current factors in, how to solve the problem of inrush current, and how to select the right inrush current limiter for your application with three easy steps.
