Alpha ADR 6-Dial Series

Product Features

6-Dial decade resistance box
Resistance range from 0.1Ω up to 11.1111MΩ
Accuracy down to ≤0.005%
TCR of ≤5 ppm/°C
Power rating of 0.5W
Long-term stability in resistance ≤50ppm/year

Applications

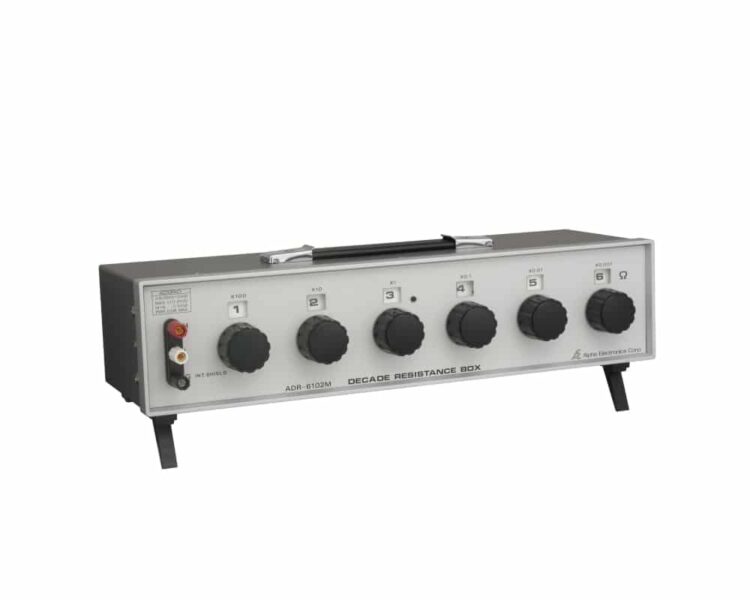

The ADR 6-dial decade resistance box series from Alpha Electronics, with 6½ digit readings, features ultra precision resistors, low contact resistance rotary switches, low thermal EMF output terminals and the double shielded construction. There are 5 models of the ADR 6-dial decade resistance box available, each offering different resistance ranges starting from 0.1Ω minimum to 1.111210KΩ maximum up to 10Ω minimum to 11.11110MΩ maximum.

6-Dial decade resistance box
Accuracy down to ≤0.005% +2mΩ for some models
Temperature coefficient of resistance ≤5ppm /°C
Long-term stability in resistance ≤50ppm/year (storage life)
Low contact resistance switch and three clip-typed contacts in parallel
Low thermal EMF terminal
Double electrical shielding protective against noise
Maximum power rating of 0.5W

All resistors used in this Decade Resistance Box are from the ultra precision Bulk Metal® Foil resistors manufactured by Alpha Electronics, assuring high stability over time and environment change.

The rotary switches have very low contact resistance which is achieved by connecting three clip-type contacts in parallel. This method also ensures a higher mechanical reliability. Low thermal EMF output terminals use a low thermal resistance rectangular wire circuit configuration. A double shielded construction inhibits interference of environmental noise.

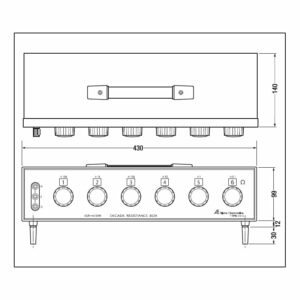

The ADR 6-dial resistance box series has a weight of approximately 4.5kg and dimensions of 430mm x 140mm x 99mm.

The below table gives the full specifications for each model available of the Alpha ADR 6-dial decade resistance box series:

Alpha ADR 6-Dial Series

Add to Compare

Calculators and Convertors

Work out what you need for your project. Go to calculators and convertors

Specifications

Weight	4.50000 kg
Dimensions	99.00 x 140.00 x 430.00mm
Accuracy	±0.005%, ±0.01%, ±0.1%
Maximum Resistance	11.11110MΩ
Minimum Resistance	0.1Ω
Model / Part Number	ADR-6102M, ADR-6103M, ADR-6104M, ADR-6105M, ADR-6106M
Power Rating	0.5W
Product Type	6-Dial, Decade, Resistance Box
Series / Model	ADR
Temperature Coefficient	±5 ppm/°C
