VFR FRSM2512 Series

Product Features

Ultra high precision FRSM wrap-around chip resistor
2512 package size
Voltage rating of 220V
Excellent stability, noise and ESD withstanding properties
Non-inductive: 0.08µH
Available with lead(Pb) free or tin/lead alloy terminations

Applications

The FRSM ultra high precision resistor series from VFR offers a resistance range between 5Ω and 125kΩ, all in a small 2512 surface-mount package with wrap-around terminations. These resistors utilise VFR’s newest Z-1 Bulk Metal® foil resistor technology for improved load life stability (up to 25ppm) and higher working temperatures (balanced temperature characteristics over a range from -55°C to more than 175°C). They have nominal temperature coefficients of resistance of ±0.05ppm/°C typical between 0°C to +60°C and ±0.2ppm/°C typical between -55°C to +125°C (+25°C reference) with tolerances available down to ±0.01% between 250Ω and 125kΩ.

Ultra high precision wrap-around bulk foil chip resistor
Available in any resistance between 5Ω and 125kΩ
2512 package
Tolerances as low as ±0.01% over the resistance range of 250Ω up to 125kΩ
TCR as low as ±0.2ppm/°C between -55° and +125°C, +25°C ref.
Voltage rating 220V
Power rating of 0.75W at +70°C
Load life stability of 25ppm typical at 70°C, 2000h at rated power (50 ppm typical at 70°C, 10000h at rated power)
Thermal stabilization time <1s (nominal value achieved within 10ppm of steady state value)
Electrostatic discharge (EDS) of at least to 25kV
Short time overload of ≤0.005% typical
Rise time as low as 1ns, effectively no ringing
Current noise of <0.010µV_RMS/V of applied voltage (<-40dB)
Non-hot spot design
Terminal finishes available: lead (Pb) free, tin/lead alloy

The FRSM Z1 ultra high precision resistor series is also available as EEE-INST-002 compliant for space use. Please see the separate FRSM EEE (space qualified) product pages for further information.

Non-standard technical requirements such as resistance outside of standard range, lower tolerance or TCR are available upon request. Please contact us for further information and availability.

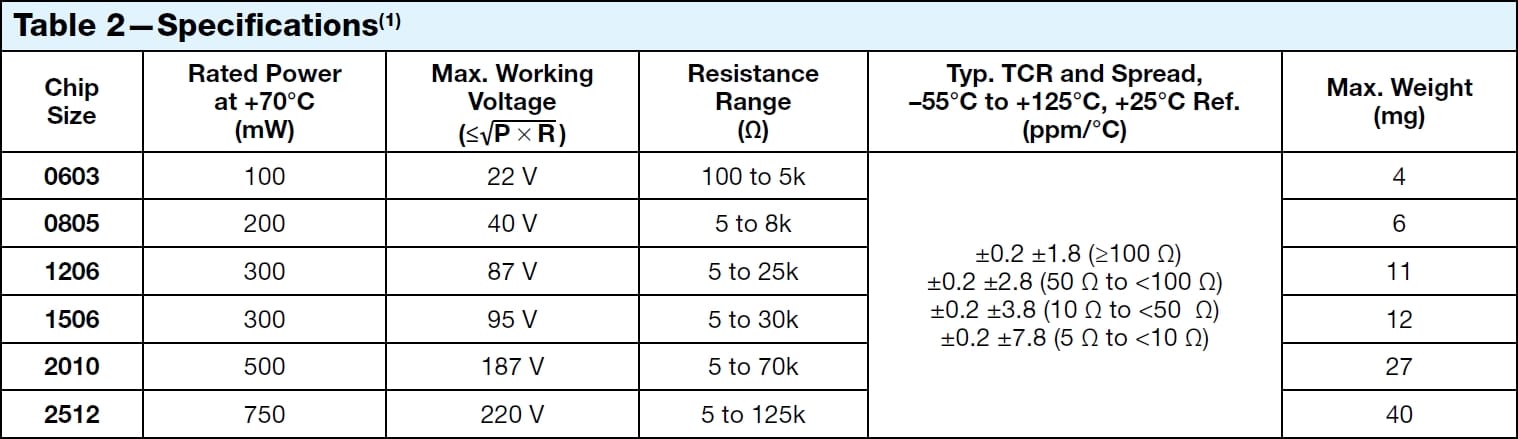

The below table gives full specifications for each resistor model available including the FRSM2512 series:

⁽¹⁾ For tighter TCR and/or resistance values up to 150k, please contact Application Engineering.

VFR FRSM2512 Series

Packaging
Resistance Value
Termination / Connection
Tolerance
Clear

Custom resistance value (Ω) *
Custom AT Range (AT) *
Custom Capacity (lbs) *
Custom Pressure (Bar/PSI) *
Custom Resistance Value Element 1 (Ω) *
Custom Resistance Value Element 2 (Ω) *
Custom lead length (mm) *
Custom lead length (inches) *

Quantity

Add to Compare

Calculators and Convertors

Work out what you need for your project. Go to calculators and convertors

Specifications

Weight	0.04000 kg
Dimensions	0.64 x 3.23 x 6.32mm
Maximum Resistance	125kΩ
Minimum Resistance	5Ω
Package / Size	Surface-mount
Packaging	Tape & Reel, Waffle Pack
Power Rating	0.75W
Resistance Value	Custom (5Ω – 10Ω), Custom (10Ω – 25Ω), Custom (25Ω – 50Ω), Custom (50Ω – 100Ω), Custom (100Ω – 250Ω), Custom (250Ω – 125kΩ)
Series / Model	FRSM
Temperature Coefficient	±0.05 ppm/°C, ±0.2 ppm/°C
Termination / Connection	Pb (Lead) free, Standard
Tolerance	±0.01%, ±0.02%, ±0.05%, ±0.1%, ±0.25%, ±0.5%, ±1%
