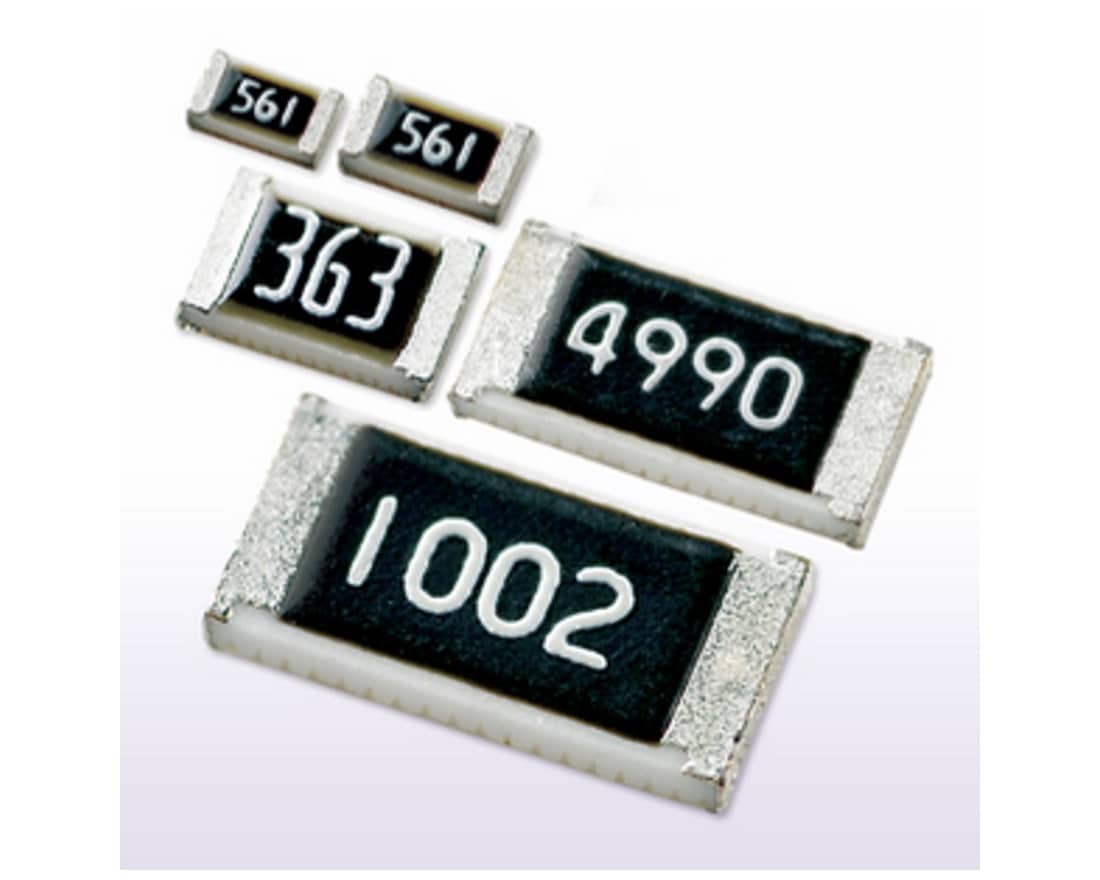

Susumu URG6432 Series

The URG6432 series of ultra precision thin film chip resistors from Susumu offer the designer an enhanced level of precision and high reliability. Similar in construction to the RG series, the URG has a double layer of passivation to eliminate water ingress to the thin film element, which makes this SMD resistor ideal for use in high temperature and extremely humid conditions. The resistance values range from 100Ω to 200kΩ with a voltage rating of 300V and a chip size of 2512. The URG6432 series thin film structure enables low noise and anti-sulfur as well as the resistors having long term stability with inorganic passivation.

• Surface-mount ultra precision thin film chip resistor
• Resistance range between 100Ω and 200kΩ available
• Resistance value series E-24 and E-96
• Power rating of 0.75W
• Tolerance values available ±0.01% (L), ±0.02% (P), ±0.05% (W),±0.1% (B) and ±0.5% (D)
• TCR values available ±1 ppm/°C (X) and ±2 ppm/°C (W) (−20°C to +125°C)
• Maximum voltage of 300V
• Temperature range of −55°C to +155°C
• Thin film structure enabling low noise and anti-sulfur
• Long term stability with inorganic passivation
• Chip size of 2512
• AEC-Q200 compliant

Susumu URG6432 series ultra precision thin film chip resistors are ideal for the following applications:

• Industrial measurement
• Electrical scales
• High precision sensors
• Medical electronics

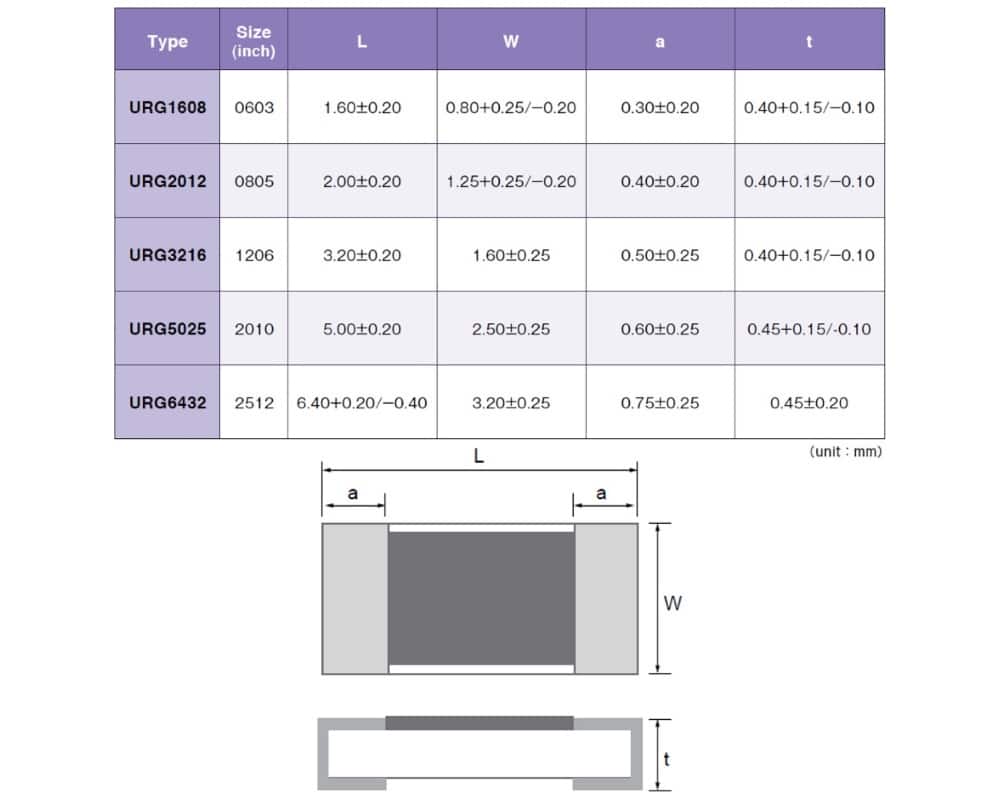

The below table gives the full specifications of the Susumu URG series including the URG6432:

*1 Applicable TCR range −20°C to +125°C

Please see the Susumu selection guide in the Technical Library tab for the E-24 and E-96 values
