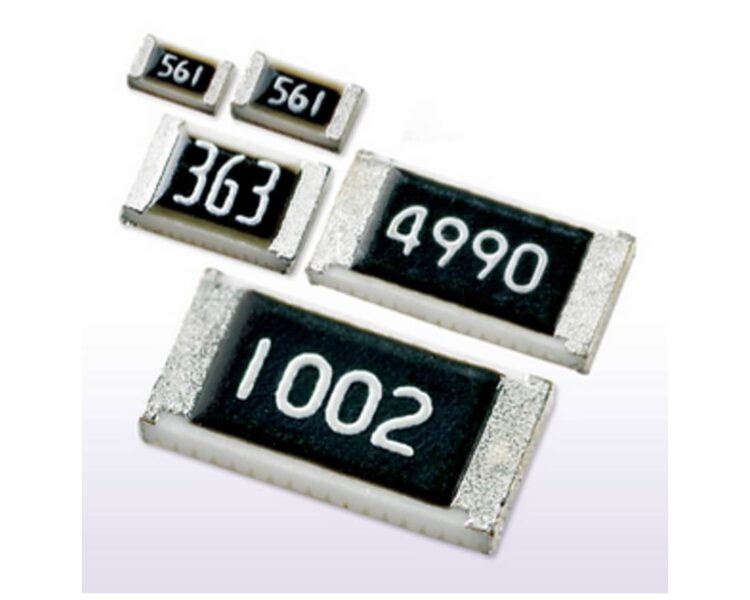

Susumu URG1608 Series

The URG1608 series of ultra precision thin film chip resistors from Susumu offers the designer an enhanced level of precision and high reliability. Similar in construction to the RG series, the URG has a double layer of passivation to eliminate water ingress to the thin film element, which makes this SMD resistor ideal for use in high temperature and extremely humid conditions. The resistance values range from 100Ω to 7.5kΩ with a voltage rating of 100V and a chip size of 0603. The URG1608 series thin film structure enables low noise and anti-sulfur as well as the resistors having long term stability with inorganic passivation.

• Surface-mount ultra precision thin film chip resistor
• Resistance range between 100Ω and 7.5kΩ available
• Resistance value series E-24 and E-96
• Power rating of 0.0625W
• Tolerance values available ±0.01% (L), ±0.02% (P), ±0.05% (W), ±0.1% (B) and ±0.5% (D)
• TCR values available ±1 ppm/°C (X) and ±2 ppm/°C (W) (−20°C to +125°C)
• Maximum voltage of 100V
• Temperature range of −55°C to +155°C
• Thin film structure enabling low noise and anti-sulfur
• Long term stability with inorganic passivation
• Chip size of 0603
• AEC-Q200 compliant

Susumu URG1608 series ultra precision metal thin film chip resistors are ideal for the following applications:

• Industrial measurement
• Electrical scales
• High precision sensors
• Medical electronics

The below table gives the full specifications of the Susumu URG series including the URG1608:

*1 Applicable TCR range −20°C to +125°C

Please see the Susumu selection guide in the Technical Library tab for the E-24 and E-96 values
